CTech™ FlowVPE® System Maintenance Guide

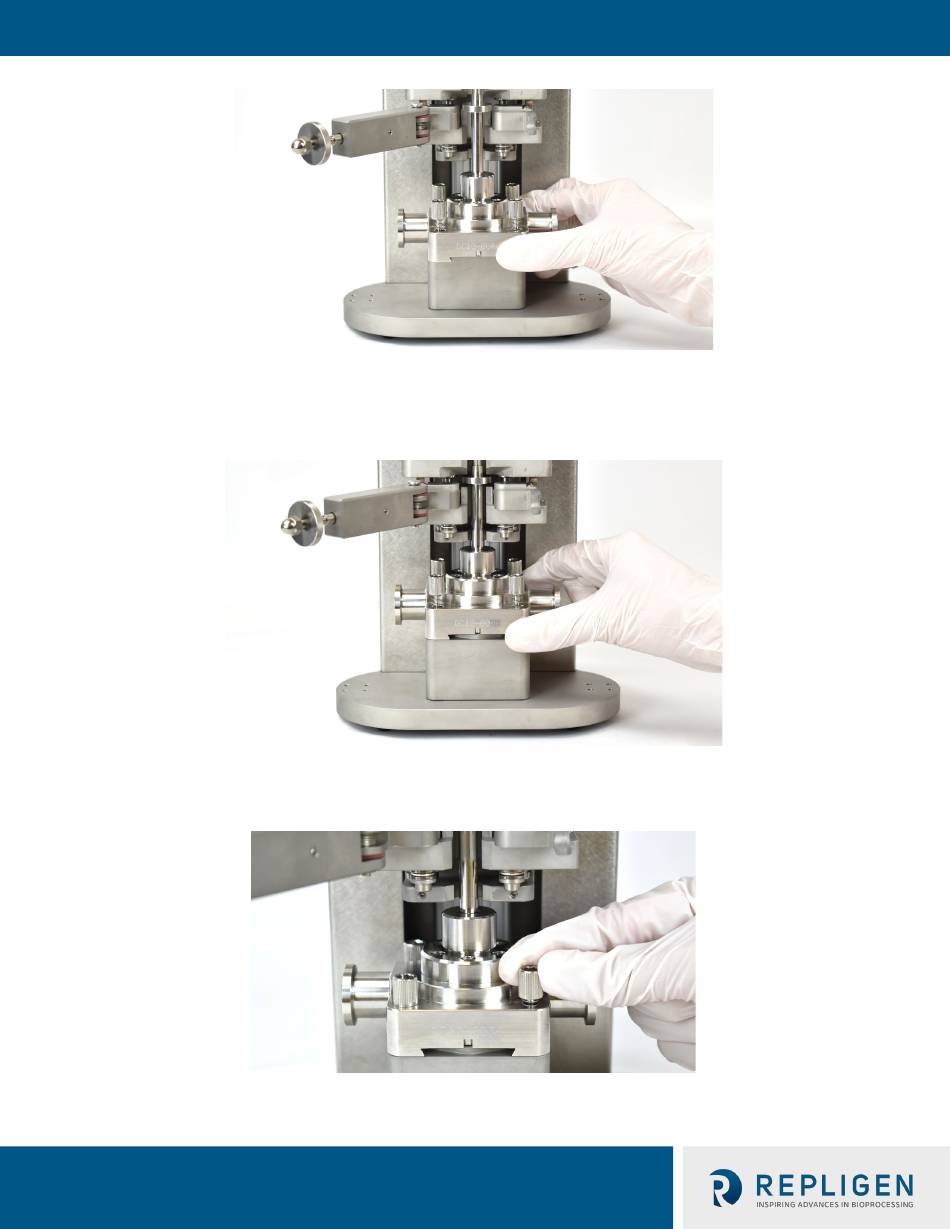

Figure 4. Flow Fibrette Flange fitting into Fibrette clamp.
5. Slide the Flow Cell and Flow Fibrette into place. The Flow Cell will make a hard stop on the pin at the back of the
Detector Module. The Fibrette will slide into the Fibrette Clamp.
Figure 5. Flow Cell mounting to Flow Head.
6. Secure the Flow Cell into the Detector Module using the four captive fasteners.
Figure 6. Securing Flow Cell to Detector Module.
