5.5.14 Standard MIG/MAG torch

The MIG welding torch trigger is essentially used to start and stop the welding process.
Operating elements
Torch trigger
Other functions are also possible by tapping the torch trigger, depending on the machine type
and control configuration- See 5.10 Special parameters (advanced settings) chapter:
•
Change over between welding programs (P8).
•
Program selection before starting welding (P17).
•
Change over between pulse and standard welding in the special latched operating mode.
•
Switching between wire feed units in dual operation mode (P10).

5.5.15 MIG/MAG special-torches

Function specifications and more indepth information can be found in the operating manual for
the relevant welding torch!

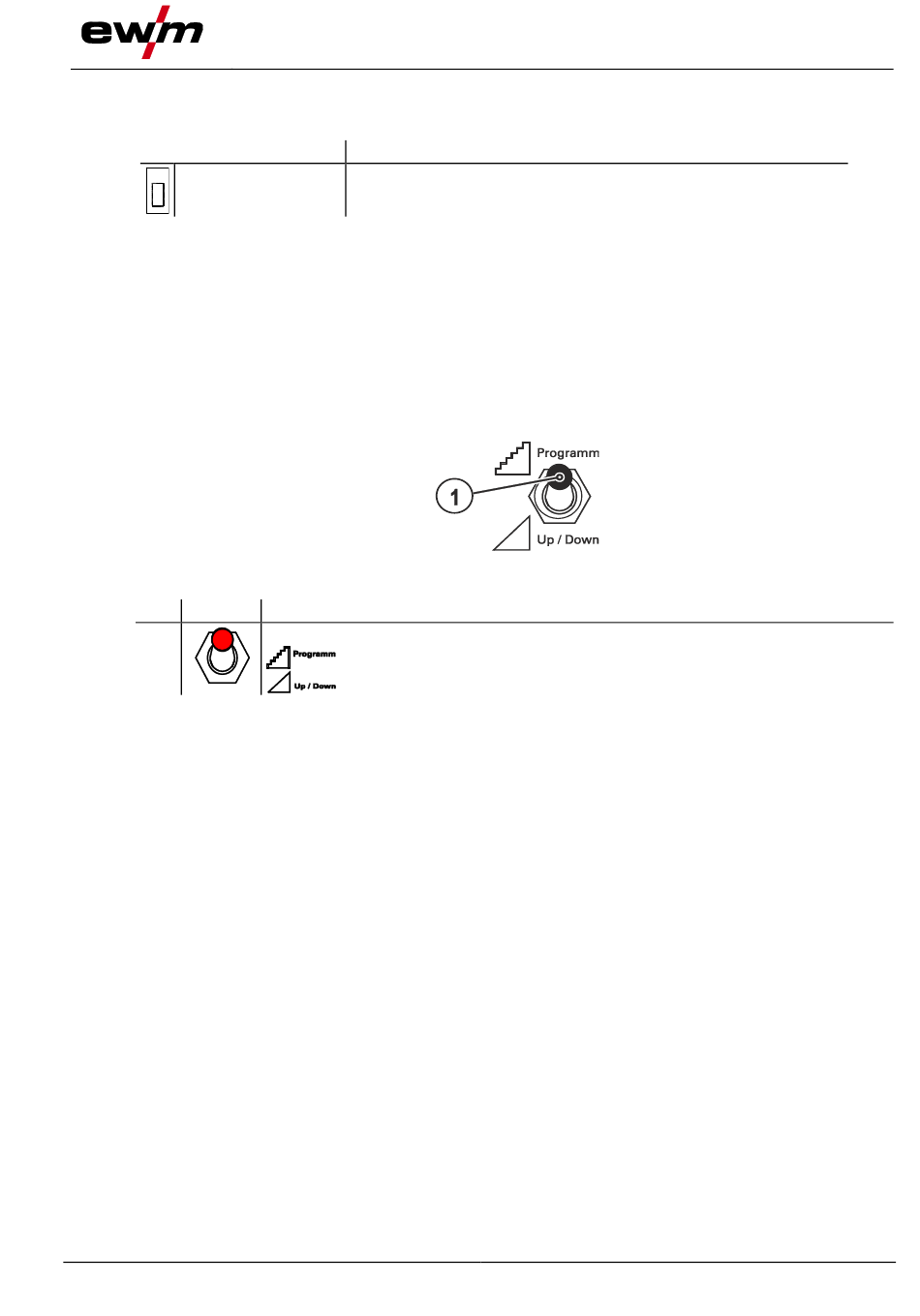

5.5.15.1 Program- and Up- / down operation

Item Symbol
1
099-005392-EW501
01.02.2016
Functions
•
Start/stop welding
Description 0
Welding torch function changeover switch (special welding torch required)
Changing over programs or JOBs
Infinite adjustment of welding performance.
Design and function
Figure 5-43
MIG/MAG welding
