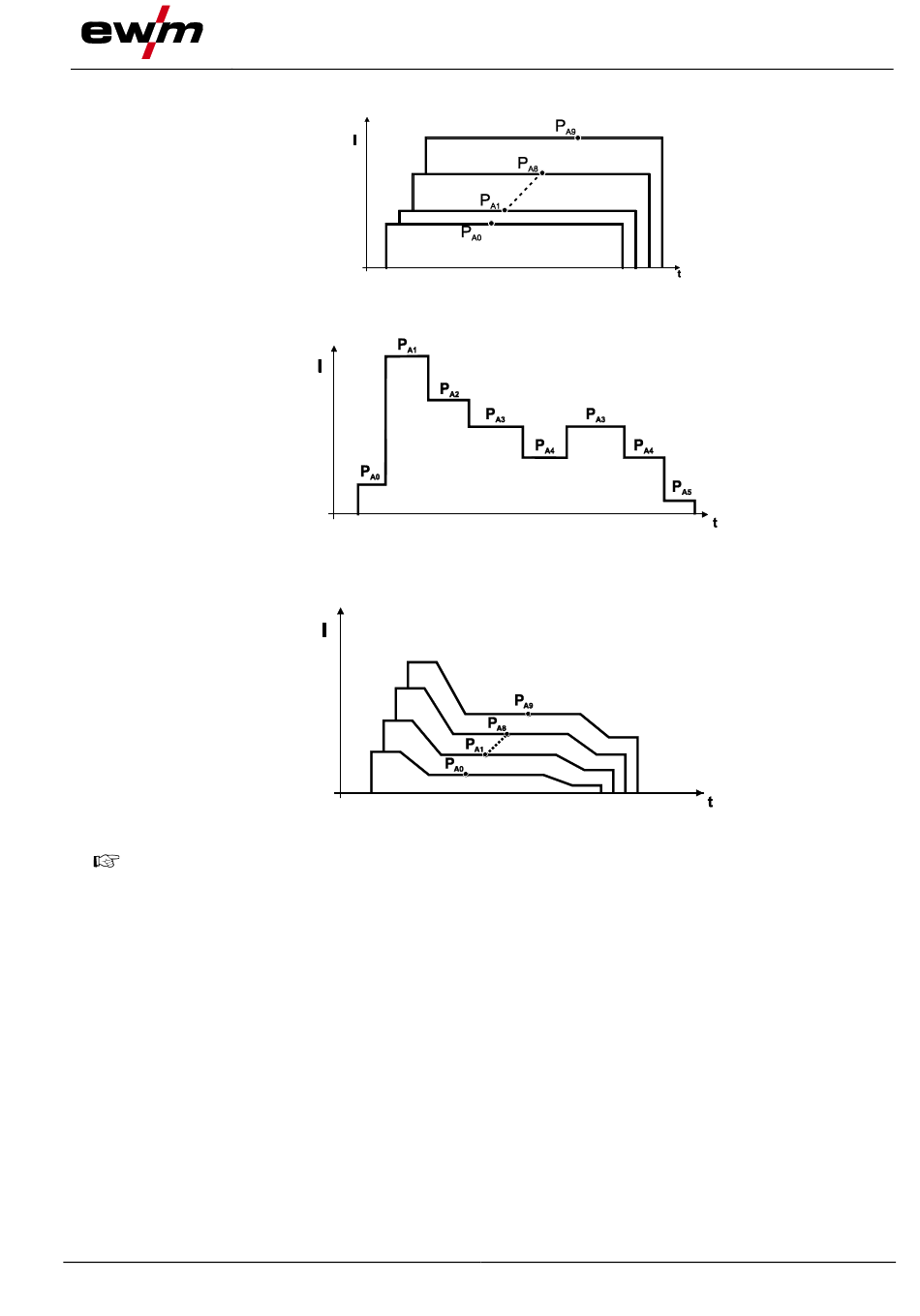

Example 1: Welding workpieces with different sheet metal thicknesses (non-latched)
Example 2: Welding different positions on a workpiece (latched)
Example 3: Aluminium welding of different sheet metal thicknesses (non-latched or latched
special)
Up to 16 programs (P
An operating point (wire speed, arc length correction, dynamics/choke effect) can be defined
permanently in each program.
Program P0 is an exception: the settings for operating points are made manually here.
Changes to the welding parameters are saved immediately!
099-005392-EW501
01.02.2016
Figure 5-40
Figure 5-41
Figure 5-42
to P ) can be defined.
A0 A15
