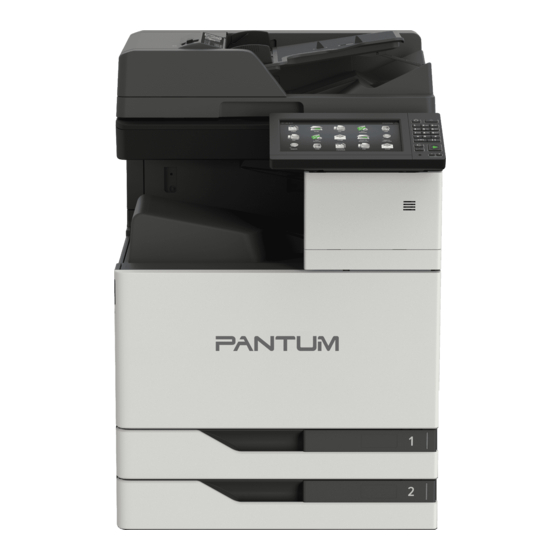

Pantum M9106-M9706 Series
Monochrome Multifunction Printer

Advertisement

Table of Contents
loading

Related Manuals for Pantum M9106 Series

Summary of Contents for Pantum M9106 Series

  • Page 1 Pantum M9106-M9706 Series Monochrome Multifunction Printer...
  • Page 2 Version: V1.2 Disclaimer For a better user experience, Zhuhai Pantum Electronics Co., Ltd. reserves the right to make changes to the User Guide. The information contained herein is subject to change without notice. Users are responsible for any damages arising from failing to follow this User Guide.
  • Page 3 Safety Precautions Disconnect the power supply The product should be placed close to or easily accessible to power sockets, so as to allow easy disconnection of power supply! Laser Safety The laser radiation is harmful to the human body. Since laser components are completely sealed in the printer, laser radiation will not leak.
  • Page 4 Safety Warning Please note the following safety warnings before using the printer: Warning There is high-voltage electrode inside the printer. Before cleaning the printer, make sure the power is turned off! Plugging and unplugging the power cord plug with a wet hand can result in an electric shock.
  • Page 5 Safety Information Conventions Note: Note indicates the information that can help you. Warning: Warnings indicate things that may damage printer’s hardware or software. CAUTION: A caution indicates a potentially hazardous situation that could injure you. Different types of caution statements include: CAUTION - POTENTIAL INJURY: Indicates a risk of injury.
  • Page 6 Disclaimer CAUTION - POTENTIAL INJURY: To avoid the risk of fire or electrical shock, connect the power cord to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible. CAUTION - POTENTIAL INJURY: To avoid the risk of fire or electrical shock, use only the power cord provided with this product or the manufacturer’s authorized replacement.
  • Page 7 • Disconnect all cords and cables from the printer. • If a separate floor-standing tray option or output option is installed on the printer, disconnect them before moving the printer. • If the printer has casters on its base, then carefully move it to the new location. Use caution when passing over thresholds and breaks in flooring.
  • Page 8 This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer’s components.The safety features of some parts may not always be obvious.The manufacturer is not responsible for any adverse consequences caused by using parts of other manufacturers.
  • Page 9 Precautions Precautions before Using the Printer: 1. Read and understand all instructions; 2. Familiarize yourself with the basic principles associated with operating electrical appliances; 3. Comply with all warnings and instructions marked on the equipment or specified in the manual supplied with the equipment;...
  • Page 10 23. This product is sold as a complete machine. The consumers can go to Pantum Aftersales Service Centre to purchase parts they need. If the product sold is inconsistent with the package list, please go to the specified Aftersales Service Centre to solve the problem;...
  • Page 11 Legal Information This symbol indicates that, at the end of your product’s life, it must not be discarded as domestic waste. Instead, you should dispose of your used equipment at a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 12: Table Of Contents

    Table of Content 01Introduction to the printer ....................... 1 Product series introduction ......................1 Product View ..........................2 Control Panel ..........................6 Overview of control panel ..................... 6 Home screen ......................... 7 Touch screen button ......................9 02Paper and Print Media ........................10 Paper Specification ........................
  • Page 13 06Print ..............................32 Start the printer ........................... 32 Print Settings ..........................32 Print the documents ......................32 Automatic Two-Sided Printing ................... 33 Print with page break ......................34 Skip Blank Pages ........................ 34 Binding function ........................35 Booklet printing ........................36 Secure Print .........................
  • Page 14 Paper size/type ........................55 Advanced portrait ....................... 56 Page break .......................... 56 Error Processing ......................... 57 Network ............................57 Network Settings ........................ 57 Network Information......................58 Information report ........................58 Consumable information ......................59 Data clearing function ........................ 59 10Routine Maintenance ........................60 Cleaning the Printer ........................
  • Page 15 The paper is jammed in the multi-purpose paper feeder ..........119 The paper is jammed in the door C ................. 121 The paper is jammed in the door D ................. 124 The paper is jammed in the 3000-sheet tray ..............126 The paper is jammed in the stapler .................

  • Page 16: 01Introduction To The Printer

    Introduction to the printer Product series introduction Product series parameters M9106DN M9706DN Interface type Print Language PCL6 Control Panel Touch screen 65ppm Print Speed (One-sided) 45ppm Automatic Two-Sided Printing Auto Duplex Scan Copy Scan : Support; Blank: Unsupport) Note: • This product series is subject to additions or changes without prior notice. •...

  • Page 17: Product View

    Product View Please leave enough room to open the paper tray, cover plate and door, and install the hardware options, when selecting a location for the printer. • Set up the printer near the power outlet. CAUTION - POTENTIAL INJURY: To avoid the danger of fire or electric shock, please connect the power cord to a properly grounded power supply with proper rated voltage The socket should be close to the product and easy to use.
  • Page 18 400 mm for the headroom 600 mm on the right 444.5 mm for the front 120 mm on the left 120mm for the back Side view Automatic document feeder (ADF) Control Panel Multi-purpose paper feeder Standard 2 x 500-sheet tray Standard output support Note: •...
  • Page 19 Front View 3000-sheet large-capacity tray • It cannot be supported until a 2x500-sheet tray or a 2500-sheet built-in large-capacity tray is installed. • If you want to buy this product, please contact the local distributor of the printer. 2x 500-sheet tray (tray 3, tray 4) •...
  • Page 20 Rear View Power Interface Network Interface USB Interface Note: • Printer appearance may differ because of various models and functions, so the schematic diagram is only for your reference.

  • Page 21: Control Panel

    Control Panel Overview of control panel Layout of touch screen buttons of printer control panel is shown as below: Name Functions • Check printer status and message. Color touch screen • Set and operate printer. Home button Go to the home screen. •...

  • Page 22: Home Screen

    Indicator Check the printer status. “Cancel” button Cancel the current printer task. “C” button Go to the interface of information report. Move the cursor backward in the input field to delete “Backspace” button characters. Home screen Use home screen button and icons to initialize operations such as copying or scanning. The layout is shown in the following figure: Name Functions...
  • Page 23 ID copy Access to “ID copy” menu and make an ID card copy. Switch Language Click the "Switch Language" button to switch the language. Access the “Secure Print” menu and print the secure print Secure Print job. Error status • This icon will be displayed when there is an error for indication troubleshooting in the machine.

  • Page 24: Touch Screen Button

    Touch screen button Layout of touch screen buttons of printer control panel is shown as below: Name Functions Home button Go back to the Home. Radio button Select the item. Return button Return to the previous menu.

  • Page 25: 02Paper And Print Media

    Paper and Print Media Paper Specification Plain paper (60-90 gsm), thick paper 1 (91-120 gsm), thick paper 2 Media Type (121-157 gsm), thick paper 3 (158-209 gsm), thick paper 4 (210-256 gsm) A4-Short Side, A4-Long Side, A3 A5-Short Side, JIS B5-Short Side, Media size JIS B5-Long Side, Legal, Letter-Short Side, Letter-Long Side, Tray 1/3/4...
  • Page 26 This may be due to incorrect operation, inappropriate temperature and humidity, or other factors beyond the control of Pantum. Before purchasing large quantities of print media, make sure that the print media meets the specifications specified in this User Guide.

  • Page 27: Non-Printing Area And Non-Scanning Area

    Non-printing Area and Non-scanning Area The shaded part indicates the non-printing area and non-scanning area. Top and bottom Left and right margins Usage Paper Size margins (A) 5mm(0.197inch) 5mm(0.197inch) Printing 5mm(0.197inch) 5mm(0.197inch) 5mm(0.197inch) 5mm(0.197inch) Scan 5mm(0.197inch) 5mm(0.197inch) Einlegen von Papier Note: •...

  • Page 28: Install Paper Tray

    Install paper tray 1. Pull out the tray. Note: • Do not remove the tray while the printer is working. 2. Adjust the guide to match the size of the loaded paper.
  • Page 29 3. Flex, fan out and align the paper edges before loading. 4. Load the paper. • When using the paper, please place the side for printing face up and follow the operations below: Note: • When loading the pre-perforated paper, make the holes on the front or left of the tray. •...

  • Page 30: Install The Multi-Purpose Paper Feeder

    5. Insert the tray. When loading a paper type other than plain paper, please set the paper size and paper type from Control Panel to match the loaded paper. Install the multi-purpose paper feeder 1. Open the multi-purpose paper feeder. 2.
  • Page 31 3. Flex, fan out and align the paper edges before loading. 4. Load the paper or special media. When using the paper, please execute any of the following operations: 5. Set the paper size and paper type from Control Panel to match the loaded paper.

  • Page 32: Paper And Manuscript Use Process

    Paper and Manuscript Use Process Note: • Druckeraussehen konnte unterschiedlich wegen seine Modelle sein. Die schematische Darstellung ist nur zum Informationszwecken. Manuscript requirements: Source Type Size A4 long and short sides , A3, A5 long and short Automatic sides , Big 16K long and short sides , 8K JIS document Plain paper feeder (ADF)
  • Page 33 2. Load the manuscript face down. 3. Align the manuscript to match the appropriate paper size. Note: • If the manuscript does not match with any size marker, please align the upper-left corner of the manuscript with the arrow. • Make sure there is no document in the ADF. If a document is detected in the ADF, it will be more preferential than that on glass platen.

  • Page 34: Scan With The Automatic Document Feeder (Adf)

    Scan with the automatic document feeder (ADF) The document feeder supports single-sided scanning and automatic duplex scanning. Refer to Section 8 for the scanning method. 1. Put the original into the ADF with its front upward and top fed first. 2.

  • Page 35: 03Driver Installation And Uninstallation

    -ivh driver location path + file name of installation package (you can simply drag and drop the driver into the terminal) Example: sudo rpm -ivh ‘/home/sugon/ Desktop / pantum-r_1.0.3-1_amd64.rpm enter "y" and press Enter to execute, as shown in the figure:...

  • Page 36: Installation Of .Deb Format

    -i driver location path + file name of installation package (you can simply drag and drop the driver into the terminal) Example: sudo dpkg -i ‘/home/test/ Desktop / pantum-r_1.0.3-1_amd64.deb enter "y" and press Enter to execute, as shown in the figure: Add Printer Note: •...
  • Page 37 2) On the control panel interface, select “Printer” to enter the printer settings interface. 3) Click the "Add" button on the "Printer Settings" interface. Select the USB printer device on the "New Printer" interface. Click the "Forward" button. The system automatically searches for installed drivers, and add a USB printer.

  • Page 38: Install A Network Printer

    4) When the printer is successfully added, a dialogue box will pop up to ask you whether to print a test page. Click “Print Test Page” to check if the printer is working properly. Install a network printer To install a network printer, make sure that the computer and the printer are on the same LAN.
  • Page 39 3. Click the "Add" button on the "Printer Settings" interface. Select the connected network printer named with IP address on the "New Printer" interface. Click the "Forward" button. The system automatically searches for installed drivers to install the printer. 4. When the printer is successfully added, a dialogue box will pop up to ask you whether to print a test page.

  • Page 40: Uninstall Driver

    Uninstall Driver Delete the printer icon before driver uninstallation. Delete the printer icon in the following steps: 1. Click “Start” and select “Control Panel” to enter the control panel interface. 2. On the control panel interface, select “Printer” to enter the printer settings interface. 3.

  • Page 41: Uninstall The Driver In Rpm Format

    2. After the uninstallation is completed, you can enter the following command in the "Terminal" to check if the driver has been completely removed. sudo rpm -q pantum enter “y” and press Enter to execute, as shown in the figure:...

  • Page 42: Uninstall The Driver In Deb Format

    2. After the uninstallation is completed, you can enter the following command in the "Terminal" to check if the driver has been completely removed. sudo dpkg -l pantum enter “y” and press Enter to execute, as shown in the figure:...

  • Page 43: 04Wired Network Setup (Applicable To Wired Network Models)

    Wired network setup (applicable to wired network models) In case printers support wired network printing, they can be connected to network to control printer to print in wired network mode. Set IP Address The IP address of the printer may be automatically obtained through DHCP function or set manually.

  • Page 44: 05Web Server

    Web server You can manage printer setup via the embedded Web server. Visit the embedded Web server 1. Turn on the power of printer and computer. 2. Connect the printer to network to ensure that the printer is connected to the network where the computer is connected to.

  • Page 45: Ip Address Setup

    IP address setup You need to connect your printer to network before IP address setup. 1. In case of wired network model, connect the printer to wired network by connecting to its network interface with network cable. IPv4 setup IPv4 address of the printer is divided into DHCP auto assignment and manual setting, and the DHCP auto assignment function is on by default.

  • Page 46: Recover Factory Settings Via Web Server

    2. Click “Add”, input recipient address and then click “Apply”. III. Set up email notification 1. Click “Settings” – “Machine settings” – “E-mail Notification”. 2. Click button and select the email addresses you want to add in the list of contacts popping out.

  • Page 47: 06Print

    Print Before using the printer to print documents, please read Chapter 3 and install the printer driver. Start the printer 1. Make sure that the power cord and USB/network cable are properly connected. 2. Start the computer. Refer to Chapter 3 if you need to install the printer driver.

  • Page 48: Automatic Two-Sided Printing

    2. Select printer of the corresponding model. 3. Make the print settings according to your needs under the respective tabs such as “General”, “Page Setup”, “Page Processing”, “Tasks”, “Color” and “Advanced”. 4. Single click “OK” to finish printing setup. Automatic Two-Sided Printing his machine supports automatic duplex printing of plain paper, thick paper 1, thick paper 2, thick paper 3 and thick paper 4.

  • Page 49: Print With Page Break

    Print with page break This printer supports the function of adding page breaks between printed texts, which can be enabled through printer settings, between jobs, between copies, or disabled. You can make the changes in the following steps as required: 1.

  • Page 50: Binding Function

    Single click “OK” to finish printing setup.Click "Print" to realize the printing effect of skipping blank pages. Binding function If you have installed the optional stapler, you can set “Folded”, “Offset”, “Staple”, “Output Support” and “Punch” for “Binding Function” in the paper interface of printing preferences. Note: •...

  • Page 51: Booklet Printing

    Booklet printing Note: • "Booklet" cannot be concurrently used with "Multipage" or "Zooming". • To enable the Booklet function, please also check "collated". • To start a Booklet, please select any of the following paper types: SRA3, A3, A4, A5, A6, 8K, Big 16K, JIS B4, JIS B5, JIS B6, Letter, Legal, Ledger, Executive, Folio, A3Wide or Statement.

  • Page 52: Secure Print

    Secure Print You can set the PC to save the print job in the printer memory until you enter the password to start the print job from the printer’s control panel. 1. Open the document. Click File - Print. 2. Select printer of the corresponding model. 3.

  • Page 53: Copying

    Copying Copying function Copying function Instructions Copy source Set the paper size of the originals. Copy To The specified paper size and tray can be set. Duplex copying It supports manual duplex copying for originals. Image quality Set the definition mode to improve the copying effect. Common Collated copy Collate copies of an original.

  • Page 54: Copying Cancel

    4. Place the original text in the glass platen, scan this page, then give a prompt of "Scan next page". When there is another page to scan, take away the previous one, put the next one in the glass platen, click “Scan next page”. After scanning all the pages, click “End scan”. Copying cancel Please click the “Cancel”...

  • Page 55: Image Quality

    4. Two-sided → Two-sided: Image quality Select corresponding image quality mode for original document used in order to improve copying effect. There are 4 modes in total: Auto: default mode, applicable to text and image originals. Text + image: applicable to originals with mixed text and image. Image: applicable to original image.

  • Page 56: Resizing

    Resizing When original document is copied, resize image copied. There are “automatic adjustment” and “manual adjustment” for zooming, with 100% as default. 1. Auto Adjustment: Automatic adjustment should be functioned together with “Copy from” and “Copy to”. That is, select the required paper size in “Copy from”, and select the paper size and paper type to be copied in “Copy to”...

  • Page 57: Advanced Portrait

    (3)vertical four-in-one: Note: • “Manual adjustment” in “N-in-1” and “Zoom” cannot be set at the same time. • “N-in-1” does not support “Duplex -> Duplex” copy mode. Advanced portrait According to the original you use, adjust the “brightness” “contrast”, “original background elimination”...

  • Page 58: Booklet Copy

    Booklet copy Booklet copy refers to typesetting and printing the originals to be copied in the format of book. The front cover and back cover of the booklet may also be set. After copying, all printed documents are folded in half for you to read it as a book. Create a booklet After the booklet settings is created, the originals to be copied can be scanned on one side or on both sides, and finally the booklet copying with the effect of duplex printing can be achieved.
  • Page 59 Cover page settings The front and back cover effects of the booklet can be achieved through the cover page setting as shown in the following figure: Inside front cover: Outside front cover: Inside and outside front covers:...

  • Page 60: Watermark Copy

    Inside back cover: Outside back cover: Inside and outside back covers: Note: • The copy size of the booklet, the paper size of the front cover and the back cover should be consistent. Watermark Copy You can add a watermark to your copies by the watermark function on the printer’s control panel. Note: •...
  • Page 61 Page break between jobs Page break between copies 1. Page break by collate 2. Non-collate multiple copies Note: • The Page Break function can be enabled in conjunction with the collate and non-collate copy functions. • The Page Break function cannot be set together with binding and folding.

  • Page 62: Id Copy Setting

    ID copy setting Placement location: Place the certificate in the “orange area” in the upper left corner of the glass platen. Wherein, the blue area is the best position for ID copying. Change related setting through setting menu for better copy result. 1.

  • Page 63: Scan

    Scan This printer provides the "pull-scan" scanning method: scanning via a PC-based scanning application.Before scanning, please be sure a printer driver has been installed in the computer. The following diagrams are based on the example of the RedOS operating system. Different operating systems may have different interface styles.
  • Page 64 4. Select “Settings and Preview" to complete the scan settings. Note: •ID scan only supports A4 platen scanning, colour and greyscale modes. • Landscape scan only supports such scan sizes as A4, A5, Big 16K, JIS B5, Statement and Letter. •...
  • Page 65 6. When scanning is complete, click “Save” button to finish storing the scanned image. Note: • There are four supported file types for saving images scanned by the scanning app software: PNG, JPEG, PDF and WebP. • You may click “Help” button to open the scanning application help file to know more about the scan settings.

  • Page 66: Cancel Scan Job

    Scan to E-mail You may scan a black-white or color file as an appendix to the e-mail application, with specific operation steps as follow: 1. Be sure the printer and the computer are both switched on and connected with each other properly.

  • Page 67: General Settings

    General Settings This Chapter mainly introduces some general settings. Note: • The panel appearance may be a little different due to difference in type or function. All diagrams are only for reference. System Settings Sleep Time Setting Sleep mode can reduce the energy consumption of printer effectively, and “Sleep time setting” can be made in the idle time before the device enters sleep mode.

  • Page 68: Time/Date

    Time/date You may set the time and date with the Time/Date option. You can make the settings in the following methods as required: 1. Click the “Settings” button on the home screen to enter the “System Settings” interface. 2. Click and select “Time/Date” to set “Time Format”, “Date Format” and “Time”. 3.

  • Page 69: Restore Factory Settings

    Restore Factory Settings “Restore factory settings” is used to recover the default settings of printer. The printer will restart itself automatically after recovering factory settings. You can make the settings in the following methods as required: 1. Click the “Settings” button on the home screen to enter the “System Settings” interface. 2.

  • Page 70: Print Settings

    Print Settings Paper size/type Paper size/type can be used to set the paper size and paper type of each tray of the machine. You can make the settings in the following methods as required: 1. Click the “Settings” button on the home screen to enter the “Print Settings” interface. 2.

  • Page 71: Advanced Portrait

    Advanced portrait In order to get better printing effect, you can adjust “Print Density” and “Contrast” in the “Advanced Portrait”. Page break 1. Click the “Settings” button on the home screen to enter the “Print Settings” interface. Click and select “Page break”...

  • Page 72: Error Processing

    Error Processing In order to ensure your printing safety, the printer will handle the print job according to your settings when there are errors such as no paper and paper jam in the printing process. The operation steps are as follows: 1.

  • Page 73: Network Information

    Network Information You can check the network status through Network Information.You can make the settings in the following methods as required: 1. Click the “Network” button on the home screen to enter the “Network Settings” interface. 2. Click and select “Network Information” to check the corresponding network information. Information report You can print information report by operating the Control Panel.

  • Page 74: Consumable Information

    Note: • The product report of the model you actually use may differ from the above product report. Consumable information You can check the batch number of consumables from the consumables information displayed on the home screen of the printer.You can make the settings in the following methods as required: 1.
  • Page 75 ScrtyMgmnt The security management function can be mainly divided into three major features: Lock Screen Password, Job Control, and Port Restriction. Note: • The initial password for printer's lock screen and job control is 12345678. • For security reasons, you are recommended to change the default password. You can enter the "User Management"...
  • Page 76 Job Control You can enable the job control function to restrict users from using the printer's copy and scan functions. After these restrictions are enabled, no copy or scan operations are available. You can make the settings in the following methods as required: 1.

  • Page 77: 10Routine Maintenance

    Routine Maintenance Note: • Druckeraussehen konnte unterschiedlich wegen seine Modelle sein. Die schematische Darstellung ist nur zum Informationszwecken. Cleaning the Printer Note: • Cut off the power supply of the printer before cleaning. • Please use mild detergents. • Some parts of the printer are still in high temperature within a short time after use. To prevent burns, please don’t directly touch places labled with high temperature warning in contact with internal components after opening the printer’s front or rear cover.

  • Page 78: Clean The Scanner

    Clean the scanner 1. Open the scanner cover. 2. Wipe the following areas with a piece of soft and lint-free wet cloth: • ADF Glass: • ADF glass mat:...
  • Page 79 • Scanner glass: • Scanner glass mat:...
  • Page 80 3. Open the door B1. 4. Wipe the following areas: • ADF glass in door B1...
  • Page 81 • ADF glass mat in door B1 5. Close the cover. 6. Wipe the sensor area with a clean and wet cotton swab. 7. Close the scanner lid.

  • Page 82: Clean Print Head Lenses

    Clean print head lenses 1. Open the door A. 2. Remove waste toner bottles. 3. Clean the print head lenses with the print head brush. 4. Insert the brush blade back to its original place.

  • Page 83: Empty The Punching Box

    5. Insert the waste toner bottle and close the door. Empty the punching box 1. Open the door H.
  • Page 84 2. Remove and then empty the punching box. 3. Insert the punching box. 4. Close the cover.

  • Page 85: Replacing Parts And Consumables

    Replacing parts and consumables Replace the toner cartridge 1. Open the door A. 2. Remove the toner cartridge. 3. Unpack the new toner cartridge. 4. Shake the toner cartridge three times.
  • Page 86 5. Insert a new toner cartridge. 6. Remove waste toner bottles.
  • Page 87 7. Clean the print head lenses with the print head brush. 8. Insert the brush blade back to its original place. 9. Insert the waste toner bottle and close the door.

  • Page 88: Replace Photosensitive Drum

    Replace photosensitive drum 1. Open the door A. 2. Remove waste toner bottles. 3. Remove the photosensitive drum. Note: • Some parts of the printer are easily damaged by static electricity. Touch the metal surface in an area away from the symbol before touching any part or assembly in an area marked with an electrostatic sensitive symbol.
  • Page 89 4. Unpack the new photosensitive drum. Note: • Do not expose the photosensitive drum to direct sunlight for more than 1 minute. Prolonged exposure to light may lead to print quality problems. • Do not touch the photosensitive drum. Otherwise, the quality of future print jobs will be affected. 5.
  • Page 90 6. Clean the print head lenses with the print head brush. 7. Insert the brush blade back to its original place. 8. Insert the waste toner bottle and close the door.

  • Page 91: Replace Waste Toner Bottles

    Replace waste toner bottles 1. Open the door A. 2. Remove waste toner bottles. 3. Clean the print head lenses with the print head brush. 4. Insert the brush blade back to its original place.

  • Page 92: Replace Paper Pickup, Paper Feed And Separation Rollers

    5. Unpack the new waste toner bottle. 6. Insert a new waste toner bottle and close the door. Replace paper pickup, paper feed and separation rollers Paper pickup roller Paper feed roller...
  • Page 93 Separation roller 1. Power off the printer. 2. Remove all trays. • Standard tray...
  • Page 94 3. Open the door C. Note: • Make sure that the door does not hit any cables connected to the printer. • If the 3000-sheet tray has been installed, slide the tray to the right to open the door. • The inside of the printer may be very hot. To avoid being burned by heating components, please wait for the surface to cool before touching the components.
  • Page 95 5. Find the roller. 6. Remove the roller.

  • Page 96: Replace The Transfer Belt

    7. Insert a new roller until it clicks into place. Note: • Make sure the roller is inserted to the proper position. 8. Close doors D and C. 9. Insert the tray and power on the printer. Replace the transfer belt 1.
  • Page 97 2. Open the door C. Note: • Make sure that the door does not hit any cables connected to the printer. • If the 3000-sheet tray has been installed, slide the tray to the right to open the door. • The inside of the printer may be very hot. To avoid being burned by heating components, please wait for the surface to cool before touching the components.
  • Page 98 4. Loosen the screws that hold the transfer belt. 5. Remove the paper guide.
  • Page 99 6. Remove the transfer belt. 7. Unpack the new transfer belt. Note: • Do not touch the transfer belt. Otherwise, the quality of future print jobs will be affected. 8. Insert a new transfer belt until it clicks into place. 9.

  • Page 100: Replace The Transfer Roller

    10. Insert the paper guide. 11. Fix the transfer belt. 12. Reinstall the door stop. 13. Close the door and power on the printer. Replace the transfer roller 1. Open the door C. Note: • Make sure that the door does not hit any cables connected to the printer. •...

  • Page 101: Replace The Adf Separation Roller

    3. Unpack the new transfer roller. 4. Insert a new transfer roller until it clicks into place. 5. Close the cover. Replace the ADF separation roller 1. Power off the printer.
  • Page 102 2. Remove the ADF separation pad. 3. Remove the ADF separation roller.
  • Page 103 4. Unpack the new separation roller. 5. Insert a new separation roller. 6. Insert the separation pad. 7. Turn on printer power.

  • Page 104: Replace The Adf Paper Pick-Up And Feed Rollers

    Replace the ADF paper pick-up and feed rollers 1. Power off the printer. 2. Open the door B.
  • Page 105 3. Remove the ADF pick-up and feed rollers. 4. Unpack the new paper pickup and feed rollers. 5. Insert the new paper pickup and feed rollers. 6. Close the door and power on the printer.

  • Page 106: Replace The Staple Box

    Replace the staple box Replace the staple box in hole punch and stapler finisher 1. Open the door H. 2. Remove the staple box. 3. Unpack the new staple box.
  • Page 107 4. Insert a new staple box until it clicks into place. 5. Close the cover. Replace the staple box in booklet finisher 1. Open the door H and pull out the booklet maker.
  • Page 108 2. Remove the staple box. 3. Unpack the new staple box. 4. Insert a new staple box until it clicks into place. 5. Push the booklet maker back to its original place and close the door.

  • Page 109: Installing Optional Tray

    Installing optional tray Note: • If you want to buy this optional part, please contact the local distributor of the printer. Install 2 x 500-sheet tray (tray 3, tray 4) 1. Power off the printer. 2. Unplug the power cord from the outlet, and then unplug the power cord from the printer. 3.
  • Page 110 4. Install the stabilizers to the tray, and then remove the rubber cover.
  • Page 111 5. Align the printer with the tray with the side handle, and then lower the printer in place. 6. Remove the connector cover plate at the rear of the printer with the screwdriver stored inside the door A.
  • Page 112 7. Connect the tray connector to the printer. 8. Open the feed tray 2, 3 and 4.
  • Page 113 9. Secure the tray to the printer with a locking clip and metal holder. • Front • Rear 10. Close the tray and reinstall the connector cover. 11. Connect the power cord to the printer and then to the outlet. 12.

  • Page 114: Install 3000-Sheet Large-Capacity Tray

    Install 3000-sheet large-capacity tray Note: • The 3000-sheet tray cannot be supported until a 2 x 500-sheet tray is installed. 1. Power off the printer. 2. Unplug the power cord from the outlet, and then unplug the power cord from the printer. 3.
  • Page 115 5. Open the feed tray 2, 3 and 4. 6. Remove the metal holder and locking clip that secure the 2 x 500-sheet tray to the printer. • Front...
  • Page 116 • Rear 7. Close the tray. 8. Use the side handles to remove the printer from the 2 x 500-sheet tray.
  • Page 117 9. Remove the stabilizers from the tray. 10. Remove the rubber cover.
  • Page 118 11. Open the tray and remove the mounting bracket and guide cover. 12. Install the side mounting bracket to the tray, and then insert the guide plate into the guide.
  • Page 119 13. Install the guide, and then install the mounting bracket and the guide cover. 14. Close the tray. 15. Align the printer with the tray with the side handle, and then lower the printer in place.
  • Page 120 16. Align the 3000-sheet tray with the printer, and then install the fixing column. 17. Attach the tray cable with clips.
  • Page 121 18. Connect the tray cable to the printer. 19. Install the tray cable cover.
  • Page 122 20. Slide the tray until it clicks into place. 21. Install the stabilizers to the printer.
  • Page 123 22. Connect the 2 x 500-sheet tray connector to the printer. 23. Open Feed Tray 2, 3, and 4, and secure the 2 x 500-sheet tray to the printer with the locking clip and metal holder. • Front...

  • Page 124: Install The Stapler, Hole Punch Or Booklet Finisher

    • Rear 24. Close the tray. 25. Connect the power cord to the printer and then to the outlet. 26. Turn on printer power. Add a tray to the print driver to make it available for printing jobs. Install the stapler, hole punch or booklet finisher 1.
  • Page 125 3. Remove the publication support from the side or rear of the printer. 4. Unpack the stapler, hole punch or booklet finisher. 5. Remove the standard output support, and then remove the paper clamp. 6. Remove the paper guide with the screwdriver stored inside the door A.
  • Page 126 7. Insert the paper transport components. Note: • Use the screws provided along with the stapler. 8. Connect the stapler to the printer.
  • Page 127 9. Insert the staple box into the stapler until it clicks into place. 10. Remove filter cover. Note: • This step is only applicable to some printer models.
  • Page 128 11. Connect the stapler cable to the printer. 12. Reinstall the filter cover. Note: • This step is only applicable to some printer models. 13. Secure the cable.
  • Page 129 14. Insert the output support. Note: • Use the screws provided along with the stapler. • Don't move the holder when the Output Support 2 is inserted. • The Output Support 3 is only supported in the booklet finisher. 15. Install the publication support, and then the clip. 16.

  • Page 130: Troubleshooting

    Informationszwecken. Please read this section carefully. It may help you to solve common problems encountered during the printing process. If the problems persist, please contact Pantum Aftersales Service Centre. Prior to handling common problems, first check that: • The power cord is connected correctly and the printer is powered on.

  • Page 131: Use Recommended Paper

    • Do not slide paper into the tray. Load paper as shown in the figure. • Make sure that the paper guide is placed correctly, and keep a gap between the paper guide and the paper to prevent the paper guide from clinging to the paper. •...

  • Page 132: Locate Jammed Paper

    Locate jammed paper No. Paper jam locations Automatic document feeder (ADF) Door C Door D Multi-purpose paper feeder 3000-sheet large-capacity tray 2x 500-sheet tray Stapler • Booklet Finisher • Hole Punch and Stapler Finisher...

  • Page 133: Cleaning Jammed Paper

    Cleaning Jammed Paper Paper jam in the automatic document feeder (ADF) 1. Remove all original documents from the ADF tray. 2. Open the door B. 3. Remove the jammed paper. Note: • Make sure that all paper fragments are removed. 4.

  • Page 134: The Paper Is Jammed In The Multi-Purpose Paper Feeder

    6. Remove the jammed paper. Note: • Make sure that all paper fragments are removed. 7. Close the cover. The paper is jammed in the multi-purpose paper feeder 1. Take out the paper from the multi-purpose paper feeder. 2. Remove the jammed paper. Note: •...
  • Page 135 3. Open the door C to remove all paper fragments. Note: • The inside of the printer may be very hot. To avoid being burned by heating components, please wait for the surface to cool before touching the components. • Make sure that the door does not hit any cables connected to the printer. •...

  • Page 136: The Paper Is Jammed In The Door C

    The paper is jammed in the door C 1. Open the door C. Note: • The inside of the printer may be very hot. To avoid being burned by heating components, please wait for the surface to cool before touching the components. Note: •...
  • Page 137 2. Remove the jammed paper from any position below. Note: • Make sure that all paper fragments are removed. • Fuser area • Below the fuser area...
  • Page 138 • Duplex printing area • Above the duplex printing area 3. Open the standard tray, and then take out the jammed paper. Note: • Make sure that all paper fragments are removed. 4. Close the tray, and then close the door.

  • Page 139: The Paper Is Jammed In The Door D

    The paper is jammed in the door D 1. Open the door D, and then take out the jammed paper. Note: • If the 3000-sheet tray has been installed, slide the tray to the right to open the door. • Open the door C to confirm that all paper fragments have been removed, and then close the door.
  • Page 140 2. Open the tray, and take out the jammed paper. Note: • Make sure that all paper fragments are removed. 3. Close the tray, and then close the door.

  • Page 141: The Paper Is Jammed In The 3000-Sheet Tray

    The paper is jammed in the 3000-sheet tray 1. Slide the 3000-sheet tray. 2. Remove the jammed paper. Note: • Make sure that all paper fragments are removed.

  • Page 142: The Paper Is Jammed In The Stapler

    3. Open the door F, and then take out the jammed paper. Note: • Make sure that all paper fragments are removed. 4. Close the door and slide the tray back into its original place. The paper is jammed in the stapler 1.
  • Page 143 2. Open the door J. 3. Open the door H.
  • Page 144 4. Remove the jammed paper from any position below. Note: • Make sure that all paper fragments are removed. • Door J • Area H1 and H2...
  • Page 145 • Area H6 5. Pull out the booklet maker. 6. Remove the jammed paper from any position below. Note: • Make sure that all paper fragments are removed.
  • Page 146 • Area H8 • Area H9...

  • Page 147: Staples Are Stuck In The Hole Punch And Stapler Finisher

    • Area H10 7. Push the booklet maker back to its original place. 8. Close doors H and J. Staples are stuck in the hole punch and stapler finisher 1. Open the door H.
  • Page 148 2. Remove the staple box holder. 3. Remove the loose staples.

  • Page 149: Staples Are Stuck In The Booklet Finisher

    4. Insert a new staple box holder until it clicks into place. 5. Close the cover. Staples are stuck in the booklet finisher Open the door H and pull out the booklet maker.
  • Page 150 2. Remove the staple box holder. 3. Remove the loose staples.

  • Page 151: Software Failure

    4. Insert a new staple box holder until it clicks into place. 5. Push the booklet maker back to its original place and close the door. Software Failure Problem Solution Reinstall the printer driver. The printer icon does not appear in the "Devices and Printers"...

  • Page 152: Error Message

    Please cancel the current scan job or Scanner is Busy With other scan jobs. wait for the completion of other scan jobs. Please contact Pantum Customer Scan failed Scanner internal failure. Service. If you have selected ADF as scan source,...

  • Page 153: Common Troubleshooting

    Fault phenomenon Cause Solution Problems Poor print quality Image Defects. Image Defects. printing Please contact Pantum Failed to copy The scanner is damaged. Customer Service. Problems • The scanner is dirty or • Clean the scanner. copying defective. Copy Image •...
  • Page 154 • Printer internal failure. • Data cable of the device is not properly connected. • Ensure proper connection Problems • The scan driver is installed of the data cable. Scanning error scanning incorrectly. • Reinstall the scan driver. • The LCD screen prompts error messages.

  • Page 155: Image Defects

    • Internal parts failure. • Separate the print media or use better quality and dry print media. Note: • If the problem persists, please contact the customer service center. See the Three Guarantees certificate for contact details. Image Defects Problem Cause Solution •...
  • Page 156 • Please adjust the toner density from “Print Preferences” or “Print” based on • A higher density is set when your operating system, or adjust the printing. print density from the printer’s control • The print head lenses are dirty. panel.
  • Page 157 • The print head lenses are dirty. • Clean print head lenses. • The photosensitive drum with • Please remove the photosensitive missing color installed drum with missing color and reinsert properly. • The photosensitive drum with • Please replace the photosensitive missing color is damaged.
  • Page 158 • There is a foreign body inside the • Clean print head lenses. printer. • please contact the customer services center. • Print media that does not meet the • Please correctly use the medium specifications is used. For example, conforming to the specifications.
  • Page 160 • The print media does not meet the usage specification. For example, the • Please correctly use the medium print media is textured, damp, or too conforming to the specifications. See rough. Section 2. • Photosensitive drum is not installed •...

  • Page 161: 12Product Specifications

    • Specification values vary slightly from printers with different models with different functions ,and product specifications vary from different countries and regions. • These values are based on the initial data. For more information about the latest specifications, please visit: www.pantum.com. Overview of the Specifications Product Size(W*D*H)

  • Page 162: Print Specifications

    Print Specifications M9106DN A4:45ppm Printing speed (single-sided) M9706DN A4 :65ppm M9106DN A4:45spm; Printing speed (duplex) M9706DN A4:65spm Max. monthly print 275,000 pages/month volume Recommended monthly print 8000 – 50000 pages volume Print Language PCL6 Duplex printing Support Print Time of First 5.2s Page Copy Specifications...

  • Page 163: Scan Specifications

    Scan Specifications Scan Type Flatbed+ADF single-sided:80ppm Scan Speed (A4) duplex:160spm Scanning technique Type of document DADF feeder Max. ADF capacity 150 pages Scan Area Max A3 Scan resolution Max 1200x1200dpi...
