Pantum M7310 Series User Manual

Monochrome laser mfp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pantum M7310 Series
Monochrome Laser MFP
It is recommended to carefully read this Guide before using the printe

Advertisement

Table of Contents
loading

Related Manuals for Pantum M7310 Series

Summary of Contents for Pantum M7310 Series

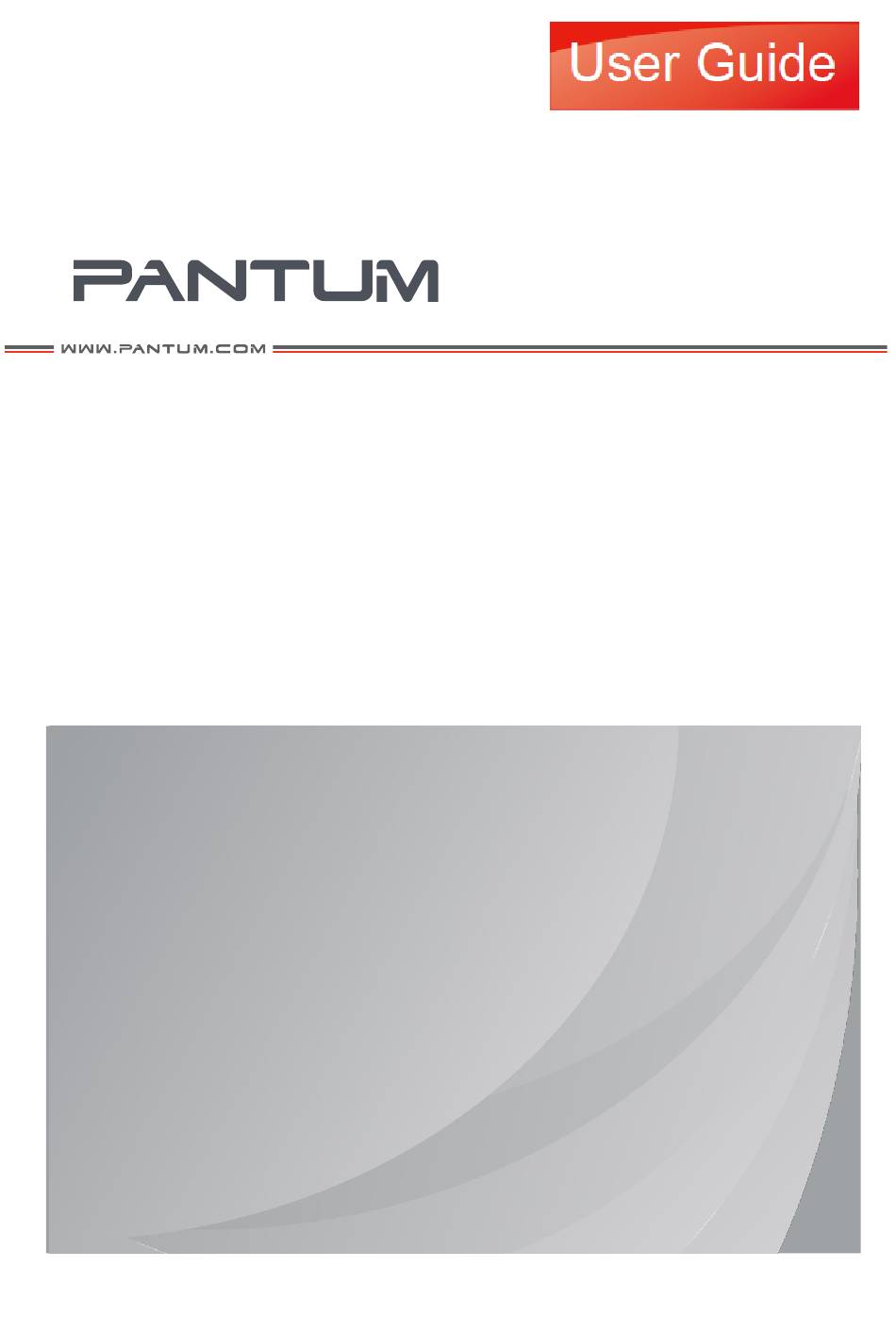

  • Page 1 Pantum M7310 Series Monochrome Laser MFP It is recommended to carefully read this Guide before using the printe...
  • Page 2 Version:V1.1 Disclaimer For a better user experience, Zhuhai Pantum Electronics Co., Ltd. reserves the right to make changes to the User Guide. The information contained herein is subject to change without notice. Users are responsible for any damages arising from failing to follow this User Guide. Meanwhile, except the express warranty made in the product maintenance manual or service commitment, Zhuhai Pantum Electronics Co., Ltd.
  • Page 3 Safety Precautions Disconnect the power supply The product should be placed close to or easily accessible to power sockets, so as to allow easy disconnection of power supply! Laser Safety The laser radiation is harmful to the human body. Since laser components are completely sealed in the printer, laser radiation will not leak.
  • Page 4 Safety Warning Please note the following safety warnings before using the printer: Warning There is high-voltage electrode inside the printer. Before cleaning the printer, make sure the power is turned off! Plugging and unplugging the power cord plug with a wet hand can result in an electric shock.
  • Page 5 Precautions Precautions before Using the Printer: 1.Read and understand all instructions. 2.Familiarize yourself with the basic principles associated with operating electrical appliances. 3.Comply with all warnings and instructions marked on the equipment or specified in the manual supplied with the equipment. 4.If the operating instructions conflict with the safety information, please refer back to the safety information, as you may have misunderstood the operating instructions.
  • Page 6 23.This product is sold as a complete machine. The consumers can go to Pantum Aftersales Service Centre to purchase parts they need. If the product sold is inconsistent with the package list, please go to the specified Aftersales Service Centre to solve the problem.
  • Page 7 31. Please keep this User Guide properly. 32. The power consumption of the product with wireless function is 5.0W / without wireless function is 2.0W in networked standby if all wired network ports are connected and all wireless network ports are activated.
  • Page 8 Radio Equipment directive 2014/53/EU only for models ending with suffix “W”. The manufacturer of this product is: Zhuhai Pantum Electronics Co., Ltd., Building 02,06 and 08,No.888 Shengping Avenue, Pingsha Town, Zhuhai City, Guangdong Province, 519000 PR China A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative.

  • Page 9: Table Of Contents

    Table of Contents 1. Before Using the Printer ........................1 1.1. Product series introduction....................... 1 1.2. Supplied Accessories ....................... 2 1.3. Product View ..........................3 1.4. Laser Toner Cartridge ......................5 1.5. Control Panel ..........................6 1.5.1. Control Panel ......................... 6 1.5.2.
  • Page 10 6.2. Use Web server to manage printer ..................56 6.2.1. IP address setup ......................57 6.2.2. Wireless setup ......................58 6.2.3. Machine setup ......................59 6.2.4. Recover factory settings via Web server..............62 7. Print ..............................63 7.1. Print Function ......................... 63 7.2.
  • Page 11 10.1. "Pantum" APP ........................100 10.1.1. Operating systems supported .................100 10.1.2. How to download Pantum App ................100 10.1.3. How to use this "Pantum" APP ................100 10.2. Mopria mobile print ......................101 10.2.1. The operating systems and applications which support Mopria mobile printing ..101 10.2.2.
  • Page 12 14. Product Specifications ........................134 14.1. Overview of the Specifications ...................134 14.2. Print Specifications ......................135 14.3. Copy Specifications ......................135 14.4. Scan Specifications ......................135...

  • Page 13: Before Using The Printer

    1. Before Using the Printer 1.1. Product series introduction M7310DN/ M7312DN/ M7310DW/ M7312DW/ Product series parameters M7318DN series M7318DW series ● ● Interface type ● ● Wi-Fi ● Print Language PDL ● ● Control Panel Touch screen ● ● 33ppm ●...

  • Page 14: Supplied Accessories

    1.2. Supplied Accessories Name Parts Toner cartridge Drum component USB Interface Cable Power Cord Installation guide Pantum Warranty Note: • The Pantum Warranty may not be attached in some regions.

  • Page 15: Product View

    1.3. Product View Side view This is used to remove the paper jammed in scanning Cover of automatic document feeder for the ADF. Feed tray of automatic document This is used to place originals scanned from the ADF. feeder Exit tray of automatic document feeder Prevent originals scanned from falling off. Open the cover of scanner to place the scanned Cover of scanner originals on its glass plate.
  • Page 16 For placing mediums that are printed in manual feed Manual feed tray tray. Turn the power on or off and press this button under Ready state to enter energy-saving mode. Power switch Press and hold this button for more than 2s to turn the printer power off.

  • Page 17: Laser Toner Cartridge

    1.4. Laser Toner Cartridge Laser toner cartridge is composed of drum component and toner cartridge. Service life of drum component Type Average Print Volume About 12000 Pages A4/LTR-based page (1 Longevity of drum component page/job). Service life of toner cartridge Type Average Print Volume Standard-volume toner cartridge...

  • Page 18: Control Panel

    1.5. Control Panel 1.5.1. Control Panel The layout of the printer control panel is shown below: No. Name Functions • Check printer status and message. Color touch screen • Set and operate printer. Return button Return to the previous menu. Home button Go to the home screen.

  • Page 19: Home Screen

    1.5.2. Home screen Use home screen buttons and icons to initialize print or scan. The layout is shown as below: Name Functions Copy Access to “Copy” menu and make a copy. Scan Access to “Scan” menu and scan document. ID copy Access to “ID copy”...

  • Page 20: Touch Screen Button

    1.5.3. Touch screen button Layout of touch screen buttons of printer control panel is shown as below: Name Functions Radio button Select or delete an item. Up arrow Scroll up. Down arrow Scroll down. Acceptance button Save setting. Cancel button Cancel selection.

  • Page 21: Paper And Print Media

    This may be due to incorrect operation, inappropriate temperature and humidity, or other factors beyond the control of Pantum. Before purchasing large quantities of print media, make sure that the print media meets the specifications specified in this User Guide.

  • Page 22: Special Paper

    2.2. Special Paper This printer supports using the special paper for printing. Special paper includes: label paper,envelope, transparent film, thick paper,carton paper, thin paper. Note: • When using special paper or print media, be sure to select matched print type and size in the print settings so as to get the best print effect.

  • Page 23: Non-Printing Area And Non-Scanning Area

    2.3. Non-printing Area and Non-scanning Area The shaded part indicates the non-printing area and non-scanning area. Left and right margins Usage Paper Size Top and bottom margins (A) 4.2mm(0.165inch) 4.2mm(0.165inch) Printing Letter 4.2mm(0.165inch) 4.2mm(0.165inch) 2mm(0.079inch) 2mm(0.079inch) Scan Letter 2mm(0.079inch) 2mm(0.079inch) 2.4.
  • Page 24 2. Slide the clip of extended tray of auto feed tray, paper length deflector and paper width deflector to the slot suitable for paper size, in order to match paper length and width. Note: • Do not overly squeeze the "paper length guide" and "paper width guide", otherwise it could easily lead to deformation of paper.

  • Page 25: Install Manual Feed Tray

    Note: • It is recommended that you raise the output tray to prevent the paper from slipping and falling after printing. If you choose not to raise the output tray, we recommend that you immediately remove the printed paper from the printer. •...
  • Page 26 3. Slide the paper deflector of manual feed tray to match the two sides of paper. Do not use excessive force; otherwise, paper will be made jammed or skewed. 4. Put a flat printing medium into the manual feed tray with both hands. Note: •...

  • Page 27: Paper And Manuscript Use Process

    2.5. Paper and M anuscript Use Process Manuscript requirements: Source Type Size Automatic A4, A5, B5, document feeder Plain paper A6,Letter,Folio,Legal (ADF) Plain paper, thin paper, thick paper, transparent A4, A5, B5, Letter, Full Platen film, carton paper, label paper, envelope Scanning Platen, Custom 2.5.1.
  • Page 28 2. Load the manuscript face down. 3. Align the manuscript to match the appropriate paper size. Note: • If the manuscript does not match with any size marker, please align the upper-left corner of the manuscript with the arrow. • Make sure there is no document in the ADF. If a document is detected in the ADF, it will be more preferential than that on glass platen.

  • Page 29: Scan With The Automatic Document Feeder (Adf)

    4. Close the scanner cover gently. Note: • Please put the paper or document on the scanner glass after the glue, ink or correction fluid are completely dried. • Rough textured, uneven, oil stained and extremely smooth paper will make printing effect poor.
  • Page 30 2. Adjust the document guide till it gets close to the paper stack. Note: • The ADF supports feeding 50 pieces of paper at most that should be fed one by one.

  • Page 31: Driver Installation And Uninstallation

    3. Driver installation and uninstallation 3.1. Driver Setup This device supplies driver setup applications for Windows and macOS. We recommend One- click installation, which helps you install the driver automatically in a faster and easier way. Should you encounter trouble when using the One-click installation, you may try more setup methods.
  • Page 32 For macOS: • Double-click on “Pantum XXX Series_Mac_Driver” – “Pantum Install Tool”. (The XXX in Pantum XXX Series refers to product model.) 4. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
  • Page 33 • If the Install Tool finds only one printer, it will proceed to network configuration and driver installation automatically when you click on "One-click installation" under Wi-Fi. (For macOS, authorization is required before printer Wi-Fi can be configured.) • If the Install Tool finds more than one printer, a printer list will pop up when you click on "One-click installation"...
  • Page 34 For macOS: • Double-click on “Pantum XXX Series_Mac_Driver”–“Pantum Install Tool”. (The XXX in Pantum XXX Series refers to product model.) 4. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
  • Page 35 Note: • You can put your mouse cursor in the "One-click installation" button to check the popup information in order to confirm if the current printer is the one you need to install through IP address before you click the button. •...
  • Page 36 • If your software has searched more than one printers, the printer list interface will pop up.You need to configure the current printer which is connected via USB cable to wireless network and install driver. Please select "Configure the print via USB and install" on the printer list interface and check the USB printer option.
  • Page 37 For macOS: • Double-click on “Pantum XXX Series_Mac_Driver”–“Pantum Install Tool”. (The XXX in Pantum XXX Series refers to product model.) 4. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
  • Page 38 6. The setup will start when you click on "One-click installation" under Wi-Fi. The setup may take a while, depending on your PC configuration. Please wait. 7. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly.
  • Page 39 For macOS: • Double-click on “Pantum XXX Series_Mac_Driver”–“Pantum Install Tool”. (The XXX in Pantum XXX Series refers to product model.) 4. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
  • Page 40 Note: • You can put your mouse cursor in the "One-click installation" button to check the popup information in order to confirm if the current printer is the one you need to install through IP address before you click the button. •...
  • Page 41 For macOS: • Double-click on “Pantum XXX Series_Mac_Driver”–“Pantum Install Tool”. (The XXX in Pantum XXX Series refers to product model.) 3. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
  • Page 42 5. The setup will start when you click on "One-click installation" under USB. The setup may take a while, depending on your PC configuration. Please wait. 6. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly.
  • Page 43 For macOS: • Double-click on “Pantum XXX Series_Mac_Driver”–“Pantum Install Tool”. (The XXX in Pantum XXX Series refers to product model.) 5. Read and agree to the terms contained in the End User License Agreement and the Privacy Policy, click the “Next”...
  • Page 44 • If the Install Tool finds only one printer, the setup will start when you click on "One-click installation" under Wired Network. The setup may take a while, depending on your PC configuration. Please wait. • If the Install Tool finds more than one printer, a printer list will pop up when you click on "One-click installation"...

  • Page 45: More Setup Methods

    8. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly. 3.1.2. More setup methods 3.1.2.1. More setup methods for Windows • Before installing the drive, you need to learn about printer model by printing printer information page out and check the product name (please refer to Section 11.4 for printing methods).
  • Page 46 7. The software installs the driver automatically and the installation process may need some time. The duration is related to your computer configuration, please wait patiently. 8. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly.
  • Page 47 9. The installation software will search the printer automatically and the searching process may need some time. 10. After finishing searching, select the printer that needs to be connected and click “Next”. Note: • If the printer you need to connect is not in the list of printers searched, please click “Refresh”...
  • Page 48 3.1.2.1.3. Installation by wireless network connection mode(applicable to Wi-Fi models) Wireless network connection type is divided into basic structure mode and Wi-Fi Direct mode (please refer to Section 5 for details). 3.1.2.1.3.1. Installation in basic structure mode 1. Connect computer to access point (wireless router). 2.
  • Page 49 8. Select “Yes, I want to configurate the printer's wireless network” on the wireless setup window popped out, and operate according to the prompts to set up the printer to wireless network (please refer to Section 5.1.1 for setup method). 9.
  • Page 50 Note: • If the printer you need to connect is not in the list of printers searched, please click “Refresh” to search again. • When the printer IP address changes under printer driver installed with host ID , you can also directly print without re-installing the driver.
  • Page 51 7. Select "Wireless network connection" and click on "Install". 8. Select “No, the printer has been connected to wireless network” on the wireless setup window popping out, and then click “Next”. 9. The installation software will search the printer automatically and the searching process may need some time.
  • Page 52 1. Turn the power of printer and computer on. 2. Insert the setup CD supplied in the CD-ROM of the PC, and double-click on "Pantum XXX Series_Mac_Driver" – "Pantum Install Tool". (The XXX in Pantum XXX Series refers to product model.)
  • Page 53 Section 4 to learn how to configure the network). 4. Insert the setup CD supplied in the CD-ROM of the PC, and double-click on "Pantum XXX Series_Mac_Driver" – "Pantum Install Tool". (The XXX in Pantum XXX Series refers to product model.) 5.
  • Page 54 6. Enter the password of the PC, and click on “OK”. 7. Click on “More setup methods” at the bottom of the setup interface for access. 8. Select a network printer from the search results. 9. Click on “Install” on the lower right. Note: •...
  • Page 55 Section 4 to learn how to configure the network). 4. Insert the setup CD supplied in the CD-ROM of the PC, and double-click on "Pantum XXX Series_Mac_Driver" – "Pantum Install Tool". (The XXX in Pantum XXX Series refers to product model.) 5.
  • Page 56 1. Turn the power of printer and computer on. 2. Insert the setup CD supplied in the CD-ROM of the PC, and double-click on "Pantum XXX Series_Mac_Driver" – "Pantum Install Tool". (The XXX in Pantum XXX Series refers to product model.)
  • Page 57 6. Click on "Off-line installation" on the lower left. 7. The software installs the driver automatically and the installation process may need some time. The duration is related to your computer configuration, please wait patiently. 8. Install complete. Please finish printer adding as guided or refer to Section 3.1.2.2.4.1.

  • Page 58: Uninstall Driver

    The information on your computer screen may differ because of multiple operating systems. 1. Click "Go" - "Applications" - "Pantum" - "Utilities" - "Pantum Un-install Tool". 2. Delete the driver as instructed in the pop-up Uninstall window.

  • Page 59: Wired Network Setup (Applicable To Wired Network Models)

    4. Wired network setup (applicable to wired network models) In case printers support wired network printing, they can be connected to network to control printer to print in wired network mode. 4.1. Set IP Address The IP address of the printer may be automatically obtained through DHCP function or set manually.

  • Page 60: Wireless Network Setup (Applicable To Wi-Fi Models)

    5. Wireless network setup (applicable to Wi-Fi models) Wireless network connection type is divided into basic structure mode and Wi-Fi Direct mode. If you have problems with wireless network setup, please refer to Chapter 5.3 Wireless Network Setup FAQs. Basic structure mode: connecting to a wireless device via router 1.
  • Page 61 5.1.1.2. Setup methods of wireless network setup tools 1. Take the wireless network setup tool in computer. 1) Windows system: Click the “Start menu” – “All programs” - “Pantum”－ Product name – “Wireless network setup tool”. 2) macOS system: click "Go" - "Applications" - "Pantum" - "Utilities" - "Wireless Network Configuration Tool"...
  • Page 62 2) Please tick “No” to configure other wireless network needed to connect to. Complete configuration according to interface prompt. Note: • The display password is not ticked by default; if it is ticked, all passwords input can be seen in clear text. 2.2 The computer is not connected to wireless network.

  • Page 63: Wi-Fi Protected Setup (Wps) Setup

    Operate as per real interface. (Please refer to Chapter 5.1.2 for detailed WPS configuration.) Note: • If the printer cannot be used normally after wireless network setup is finished, please install the drive again. Please select “wireless network connection ” as the installation method .

  • Page 64: How To Disable The Wi-Fi Network Connected

    5.1.3. How to disable the Wi-Fi network connected 1. From printer control panel navigate to: “ ” -Network set-Wireless conf.-Station. 2.Select “Close” button and save. 5.2. Wi-Fi Direct mode You can connect wireless client (including the computer and mobile device with wireless network feature) to wireless network printer without using the access point (wireless router).
  • Page 65 5.2.2.1. Connection method of wireless client that supports Wi-Fi Direct feature (direct invitation to connect) You must use mobile devices that support Wi-Fi Direct function for Wi-Fi Direct connection. The operating steps may differ because of the mobile device you are using. 1.

  • Page 66: How To Disable The Wi-Fi Direct

    Note: • In case of auto connection mode, the mobile device will start to connect automatically after initiating connection invitation without panel confirmation. 5.2.2.2. Connection method of wireless client that does not support Wi-Fi Direct function (input password to connect) 1.
  • Page 67 • The printer cannot find the SSID of the access point (wireless router) you need to connect, please check the SSID of access point and try to connect again. • Every time when the setup of access point (wireless router) is changed, you must set up the wireless network of printer again.

  • Page 68: Web Server

    6. Web server You can manage printer setup via the embedded Web server. 6.1. Visit the embedded Web server 1. Turn on the power of printer and computer. 2. Connect the printer to network to ensure that the printer is connected to the network where the computer is connected to (please refer to Chapter 4 Chapter 5...

  • Page 69: Ip Address Setup

    5. It supports to configure e-mail address and FTP address to scan the file to be scanned directly to E-mail box or FTP server. 6.2.1. IP address setup You need to connect your printer to network before IP address setup. 1.

  • Page 70: Wireless Setup

    6.2.1.2. IPv6 setup 1. Turn on printer power to connect printer to network. 2. Log in the embedded Web server (please refer to Chapter 6.1 for login method). 3. Click “Settings” – “Network settings” – “Protocol Settings” – “IPv6”. 4. Tick “Enable IPv6 protocol” and “Enable DHCPv6” (ticked by default) and then click “Apply”. You can refresh the browser and view the “IPv6 Local Link Address”...

  • Page 71: Machine Setup

    2. If you need to configure a wireless network, turn on the basic status of wireless network, and then click the SSID of the access point (wireless router) in the search list of hotspots, enter the secret key in the authentication, and click Apply. 6.2.2.2.
  • Page 72 III. Set up email notification 1. Click “Settings” – “Machine settings” – “E-mail Notification”. 2. Click button and select the email addresses you want to add in the list of contacts popping out. You can also tick “address X” (such as address 1) and input the email addresses you want to add. 3.
  • Page 73 3. Click “Create” to pop out a window as below and edit the group name and check the e-mail address to be added in the contact name (e-mail address) listbox, and then click "Apply". 6.2.3.3. Configure the FTP address book If you want to scan a file to the FTP server, you need to configure the FTP address book first.When scanning, you may send the image scanned to the FTP server.Before configuring the FTP address book, you may need to ask your network administrator for the server IP address, port number, login...

  • Page 74: Recover Factory Settings Via Web Server

    6.2.3.4. Sleep time setup 1. Log in the embedded Web server (please refer to Chapter 6.1 for login method). 2. Click “Settings” – “Machine settings” – “System”. 3. Select sleep time according to you need and then click “Apply”. 6.2.4. Recover factory settings via Web server 1.

  • Page 75: Print

    7. Print 7.1. Print Function You can set the print function through "Start"-"Devices and Printers"- select corresponding printer- right click – set print function in "Printing preferences". Some functions are as follows: Functions Diagram Automatic Two-Sided Printing Collate Print Reverse Print N-in-1 Poster Print(for Windows Operation System only) Zoom Print...

  • Page 76: Print Settings

    7.2. Print Settings 7.2.1. Print parameter settings You can set up printing parameters with the following two methods before sending printing work (such as paper type, paper size and paper source). Operating Temporary printing setup change Permanent default setup change system 1.
  • Page 77 7.2.2.1. Duplex printing unit setup For the purpose of achieving the best printing result, you can set up the paper size of duplex printing unit. As for duplex printing of A4 and 16K papers, the slide should be adjusted to the A4 position; as for Letter, Legal, Folio and Oficio duplex printing, the slide should be adjusted to the Letter position.
  • Page 78 4. Install the duplex unit in the printer. 7.2.2.2. How to carry out auto duplex printing 1.Open the print job to be printed from the application (such as a Notepad). 2.Select Print from the File menu.
  • Page 79 3. Select printer of the corresponding model. 4. Single click “Preferences” for printing setup. 5. Select the “Duplex” in “Basic” tab and then select “Long Edge” or “Short Edge”. 6. Single click “OK” to finish printing setup. Click “Print” to realize auto duplex printing.

  • Page 80: Fine Mode Printing

    7.2.3. Fine mode printing The Fine mode is applicable to engineering drawings and fine lines printing. Set up fine mode in the basic page of printer preference . After setup, fine printing mode can be realized. 7.2.4. Mute printing If the Mute Printing is set, the printing noise will be reduced but the printing will slow down to some extent.

  • Page 81: Open Help Document

    7.2.5. Open Help Document You can open the "Printing preferences" and click "Help" button (for Windows Operation System only). The help document contains the user guide where you can find the information on print settings. 7.3. Printing Mode The printer can print with auto feed tray and manual feed tray. The defaulted state is auto selection, and if there is printing medium in the manual feed box, papers in manual feed tray will be used with priority.

  • Page 82: Printing With The Automatic Feeder Tray

    7.3.1. Printing with the Automatic Feeder Tray Before printing, please make sure mediums of corresponding quantity have been installed inside the auto feed tray, and there is no printing medium in the manual feed tray. Note: • For precautions on loading paper, see Chapter •...

  • Page 83: Usb Print

    Note: • Manual feed mode means that papers will be fed from the manual feed tray first if there are papers being put inside it. • Generally, the manual feeder tray is used to print on special paper, such as envelopes, transparencies, etc., and only one piece of paper can be loaded each time.
  • Page 84 2. Once the USB flash disk is inserted, the USB flash disk drive interface will automatically pop up. Select “USB Flash Disk Print”. 3. Select document to be printed and set print properties as required. 4. Click “Print” after setting. Note: •...

  • Page 85: Secure Printing

    7.5. Secure printing You can save print job in the printer’s memory through PC setting until you enter password in printer control panel to start such job. 1. Open document, click File-Print. 2. Click Property, Preferences, Option or Setting. 3. Select “secure printing” in “Print preference” and tick “secure printing”. 4.
  • Page 86 8. Select document to be printed, enter document print password, make a print according to interface prompt.

  • Page 87: Google Cloud Print

    Print for printing in any place. For information on how to use Google Cloud Print, please download the operation manual on the website http//www.pantum.com 7.7. Cancel printing If you want to cancel the operation during printing, please press “Cancel” key on the printer's control...

  • Page 88: Copying

    8. Copying 8.1. Copying function Copy Instructions Multipage Print a multi-page document to a piece of paper. Clone Print several identical images to a piece of paper. Poster Print a one-page original to pieces of paper. Collated copy Collate copies of an original. Duplex copying Duplex copying of the original can be achieved.

  • Page 89: Image Quality

    8.4.1. Image quality Select corresponding image quality mode for original document used in order to improve copying effect. There are 4 modes in total: Auto: default mode, applicable to text and image originals. Text + image: applicable to originals with mixed text and image. Image: applicable to original image.

  • Page 90: Clone

    (2) Horizontal four-in-one: (3)vertical four-in-one: Note: • "Multipage” and “resizing function” cannot be set at the same time. 8.4.5. Clone Through setting on clone feature, you may print multiple original images on one piece of paper. Copying with the ADF and the glass platen are both supported. The clone copying includes 3 modes: 2x2：...

  • Page 91: Poster

    8.4.6. Poster Poster setting enables the printing of one piece of original document on several pieces of paper. The "Poster" feature supports only copying with the glass platen. The poster copying includes 3 modes: 2x2： 3x3： 4X4： Note: • The “poster” and “resizing function” cannot be set at the same time.

  • Page 92: Collated Copy

    8.4.7. Collated copy The "Collated Copies" feature supports only copying with the automatic document feeder (ADF). The collated copy includes 2 modes: Startup: Closed: 8.4.8. Duplex copy You can use flat plate and ADF for Auto Duplex copy, ADF supports auto duplex copy. There are 4 modes in total for duplex copying: 1.

  • Page 93: Paper Setting

    8.4.9. Paper setting Select the paper size and paper type of original copying in Paper Settings menu. Paper dimension: A4, Letter, B5, A5, A6, Executive, Legal and Folio. Paper type: common paper, thick paper, envelope paper, film paper, card paper, tagboard and thin paper.

  • Page 94: Intensity

    Position: Half page up-down: default mode; put ID card at “orange left half area” of glass platform. Half-page up and down, half-page left and right or A5 left and right: put the ID card in the "blue area" in glass platen. Note: •...

  • Page 95: Scan

    9.1.1.1. Pantum Scan Application Operation Steps: 1. Double click on "Pantum Scan Application" on the computer, the icon is shown as below: 2. The prompt window is shown as below: 3. Set Scan in the right list. Click "Scan" on the bottom right corner and start scan.
  • Page 96 This product complies with the TWAIN and Windows Image Application (WIA) standard. If using the application which supports TWAIN and WIA standard, users can use the scan function and directly scan the images to the open application. The handbook requires Office Software (Word and Excel) and Photoshop ,for example, to show the operation.
  • Page 97 4. After the window pops up, set the scan information in the right list of "Basic Setting" and "Advanced Setting". Click on "Scan" and start scan. If you desire to change a scanning port, please click "Port" at the lower part of above picture to select a scanning port, as shown below:...
  • Page 98 9.1.1.2.2. Photoshop Operation Steps: 1.Launch Photoshop, click on "File" – "Import" on the top left corner and select TWAIN Scan, as is shown below: 2. After the window pops up, please refer to Step 4 of 9.1.1.2.1 to see the specific operation steps. 9.1.1.3.
  • Page 99 3) Click on "Device" and select WIA Scan,click the “Custom Insert” below. 4) The prompt window as is shown below, set the scan information. 5) Click on "Adjust the Scanned Image Quality" on the bottom left corner of the above picture, the advanced properties interface will pop up, then users can set the scan;...
  • Page 100 2. Photoshop Operation Steps: 1) Launch Photoshop, click "File"- "Import" on the top left conrner and select WIA Scan, as is shown below: 2) After the window pops up, please refer to Step 4 and Step 5 of 9.1.1.3.1 to see the specific operation steps.
  • Page 101 2. When the pop-up window appears, select the printer you want to use, and right click the mouse. 3. Click on "Start Scan" in the above option bar.

  • Page 102: Macos System Scan

    4. After the window pops up, set the scan and click "Scan" on the bottom right corner and start scan. 9.1.2. macOS System Scan 9.1.2.1. ICA Scan 9.1.2.1.1. Open ICA via "Print and Scan" Operation Steps: 1. After installing the printer driver, click "System Preferences" icon on the bottom left corner of the computer desktop.
  • Page 103 2. After the window pops up, click on "Print and Scan". 3. After the window pops up, click on "Scan".
  • Page 104 4. Click on "Open Scanner" and the scan window will pop up. 5. Click on "Show Details" on the bottom right corner to set the scan parameters. 6. Click on "Scan" on the bottom right corner and start scan.
  • Page 105 9.1.2.1.2. Call CIA through applications Operation Steps: 1. Click on "Finder" icon on the bottom left corner of the computer desktop, or use keyboard shortcuts command+shift+C to open the window. Find "Image Capture" in "Applications" (or conduct keyboard shortcuts command+shift+A to directly switch to "Applications") and click to launch the application.

  • Page 106: Push Scan

    9.1.2.2. TWAIN Scan Take Photoshop as an example. Operation Steps: 1. Launch Photoshop, click on "File" – "Import" on the top left corner and select TWAIN Scan, as is shown below: 2. After the window pops up, please refer to Step 4 of 9.1.1.2.1 to see the specific operation steps.
  • Page 107 1. Be sure the printer and the computer are both switched on and connected with each other properly. 2. Please see Chapter 6.2.3.1 to configure the SMTP Client. 3. Please see Chapter 6.2.3.2 to configure the e-mail address book. 4. Put an original on the glass platen or into the ADF (please see Chapter 2.5 for how to put an original).
  • Page 108 4. Select proper scan setting, click “Scan” button to make a scan. The printer will create a folder named PantumScan in which all scanned files are saved in PDF or JPG. Note: • USB formats supported: FAT and FAT32 for Windows system and MS-DOS (FAT) for macOS system.
  • Page 109 3. In the pop-up “Network Access” window, click the drop-down menu, select “Everyone”, and click “Add”. 4. Change the “Everyone” permission level added in Step (3) to “Read/Write”, and click “Share (H)” in the lower right corner.
  • Page 110 5. If your shared folder path is displayed at the network path, it means it is successfully shared. 9.1.3.5.2. “Scan to SMB” configuration 1. Be sure the printer and the computer are both switched on and connected with each other properly. 2.

  • Page 111: Scanning Function

    9.2. Scanning function This machine supports ADF automatic duplex scanning. Take Pantum scanning application software as an example: 1. Place the original in ADF (see Section 2.5.2 for specific operation). 2. Recall “Pantum Scanning Application” (see Section 9.1 for specific operation).

  • Page 112: Mobile Print/Scan

    How to download it for iOS mobile device: Click the App Store icon > Search interface > input “PANTUM” or “Pantum print” in the search bar > Download and install on the interface of iOS device to download. 10.1.3. How to use this "Pantum" APP 10.1.3.1.

  • Page 113: Mopria Mobile Print

    10.1.3.2.2. Operation steps 1. Turn on printer power. 2. For an iOS mobile device, tap the “PANTUM” icon on the main screen to enter the first interface of “PANTUM”. 3. Select the connection method according to your habit to connect the printer.

  • Page 114: Nfc Label

    NFC antenna of your mobile device. • If the mobile device is not installed with Pantum App, the Pantum App download link will pop out automatically. Try again after downloading and installing the App.

  • Page 115: Airprint Mobile Print

    4. Click 5.Tap "print". 6.Please make sure the Pantum printer is selected. If you select other printers (or no printer), please click printer option and then select your Pantum printer. 7. Set printing parameters such as number of copies to print.

  • Page 116: General Settings

    11. General Settings This Chapter mainly introduces some general settings. Note: • The panel appearance may be a little different due to difference in type or function. All diagrams are only for reference. 11.1. System Settings 11.1.1. Ink saving setting You can select the save toner mode which can reduce toner consumption and reduce printing cost.

  • Page 117: Restore Factory Settings

    11.1.3. Restore Factory Settings “Restore factory settings” is used to recover the default settings of printer. The printer will restart itself automatically after recovering factory settings. 1. Click “ ” button in control panel to enter “Menu setting” interface. 2. Click and select “System Setting”-“Restore set” to reset to defaults. Note: •...

  • Page 118: Mute Printing

    11.1.5. Mute printing Set mute mode to realize low speed printing with low noise. When mute mode is “on”, printing will be in a low speed. This mode is “off” by default. 1. Click “ ” button in control panel to enter “Menu setting” interface. 2.

  • Page 119: Network Settings

    11.2. Network Settings You can check or set network through Network set. 1. Click “ ” button in control panel to enter “Menu setting” interface. 2. Click and select “Network set” to set “Wired config.”, “Wireless conf.” and “WiFi Direct”. 11.3.

  • Page 120: Print Information Report

    11.4. Print information report You can print information report by operating control panel. These pages can help you to learn about product information, and diagnose and solve product failures. 1. Click “ ” button in control panel to enter “Menu setting” interface. 2.

  • Page 121: Online Upgrade

    1. Click and select “Scan"-“Scan to FTP" in control panel to enter Scan to FTP setting interface. 2. Enter FTP Add., FTP port, user name and password into input box, click “Add” button to add FTP Add. into FTP Add. book. 3.

  • Page 122: Routine Maintenance

    12. Routine Maintenance Note: • Printer appearance may differ because of various models and functions, so the schematic diagram is only for your reference. 12.1. Cleaning the Printer Note: • Cut off the power supply of the printer before cleaning. •...
  • Page 123 3. Open the front cover and take the laser toner cartridge out along the track. Note: • When removing the toner cartridge, put the toner cartridge in a protective bag or wrap it with thick paper to avoid direct light damaging the toner cartridge. 4.Clean the inside of the printer by gently wiping the shaded area, as shown in picture, with adry and lint-free cloth.
  • Page 124 5. Wipe the LSU lens of printer gently with dry lint cloth. 6. Open the auto feed tray and wipe the pickup roller gently with dry lint cloth.

  • Page 125: Toner Cartridge And Drum Component Maintenance

    Note: • the machine with the ADF should be regularly cleaned, removing dirt on the top cover of the ADF. Please wipe the place as shown in figure with a soft cloth. 12.2. Toner cartridge and drum component maintenance 12.2.1. About toner cartridge and drum component component 1.Cartridge, use and maintenance of the drum assembly.

  • Page 126: Replace Toner Cartridge And Drum Component

    • Please pay attention to toner leakage while it is taking out or disassembled. In case of toner leakage, skin contact with toner or spattering into eyes or mouth, please wash it with clear water immediately, or see a doctor if feeling unwell. •...
  • Page 127 2. Open the front cover and then remove the laser toner cartridge along the guide rail. 3. Press the blue button on the left side of drum component with left hand and lift the toner cartridge handle with right hand at the same time to take the toner cartridge out. 4.
  • Page 128 7. Take the drum component with toner cartridge installed and install it inside the printer along the inner track of printer to finish installing. 8. Close the front cover. Replace the drum assembly steps are as follows: 1.Power off the printer.
  • Page 129 2. Open the front cover and take the laser toner cartridge out along the track. 3. Press the blue button on the left side of drum component with left hand and lift the toner cartridge handle with right hand at the same time to take the toner cartridge out.
  • Page 130 4. Open the package of new drum component, take the protection device of drum component, and put the drum component on a horizontal table. 5. Install the drum component along the inner track to finish installing toner cartridge. 6. Take the drum component with toner cartridge installed and install it inside the printer along the inner track of printer to finish installing.

  • Page 131: Troubleshooting

    13. Troubleshooting Please read this section carefully. It may help you to solve common problems encountered during the printing process. If the problems persist, please contact Pantum Aftersales Service Centre. Prior to handling common problems, first check that: • The power cord is connected correctly and the printer is powered on.
  • Page 132 2.Gently pull the jammed paper out. 3. Install paper tray. 4.Open the front cover.
  • Page 133 5. Take the laser toner cartridge out along the track. (For the purpose of preventing printing quality from affecting by the exposure of photosensitive drum, please put the laser toner cartridge inside the protection bag or warp it with thick paper). 6.Gently pull the jammed paper out.

  • Page 134: Paper Jam In The Fuser Unit

    13.1.2. Paper Jam in the Fuser Unit Note: When papers jammed in fuser unit are taken out, please pay attention and do not touch the shaded area shown below in order to avoid burns. 1. Open the front cover and then remove the laser toner cartridge along the guide rail.
  • Page 135 2.Open the rear cover. 3.Open the fuser door using the handles on both sides. 4.Gently pull the jammed paper out.

  • Page 136: Duplex Unit Jam

    5. Close the back cover after removing the paper jammed. 6. Install a new toner cartridge and then close the front cover; then, the printer will recover printing automatically. 13.1.3. Duplex Unit Jam 1. Remove the duplex printing unit from the back of the printer.
  • Page 137 • If the printer still does not start printing, please check that all the jammed paper inside the printer has been cleared. • If you cannot remove the jammed paper yourself, please contact your local Pantum authorized repair center or send the printer to the nearest Pantum authorized service center for repair.

  • Page 138: A Paper Jam Occurs On The Automatic Document Feeder (Adf)

    13.1.4. A paper jam occurs on the automatic document feeder (ADF) 1. Open the ADF’s top cover. 2. Remove the paper jammed from the ADF.
  • Page 139 3. After removing the paper jamed, close the top cover and then the printer will be back to the ready state. 4. If it is difficult to remove the paper jammed, please try to open the scanner cover and remove it from the pressing block.

  • Page 140: Software Failure

    Printer paper jam The print paper is loaded incorrectly. paper. Please cancel the current Scanner is Busy With other scan jobs. scan job or wait for the completion of other scan jobs. Please contact Pantum Scan failed Scanner internal failure. Customer Service.

  • Page 141: Common Troubleshooting

    Problems in Poor print 13.4.2 Image Defects. See 13.4.2 Image Defects. printing quality Please contact Pantum Customer Failed to copy The scanner is damaged. Service. Problems in • The scanner is dirty or • Clean the scanner. copying Copy Image defective.
  • Page 142 The cable between the computer and the printer is • Please disconnect the printer cable and Online printing not connected properly. then connect it again. does not work Driver program of printer is • Please uninstall and then reinstall the not installed correctly.

  • Page 143: Image Defects

    13.4.2. Image Defects Problem Cause Solution • The print media does not meet the • Please use proper print media usage specifications, for within the specification range. example the media is damp or too rough. • Set the resolution and •...
  • Page 144 • Dirty toner cartridge. • Clean or replace toner • Damaged inner parts of toner cartridge. cartridge • The reflective glass of the laser inside • Clean the mirror of the laser at the printer is dirty. the back of the printer. •...
  • Page 145 new fuser assembly. • Dirty toner cartridge • Clean or replace toner • The transfer roller inside the printer is cartridge dirty. • Clean the internal transfer part • The transfer voltage inside the printer is of the printer. abnormal. The back of the printout is dirty •...
  • Page 146 • Specification values vary slightly from printers with different models with different functions ,and product specifications vary from different countries and regions. • These values are based on the initial data. For more information about the latest specifications, please visit: www.pantum.com. 14.1. Overview of the Specifications Product Size(W*D*H)
  • Page 147 NFC : 13.56MHZ Wi-Fi 2.4GHz : 2400MHz – 2483.5MHz Frequency Band Wi-Fi 5GHz : 5150MHz - 5350MHz; 5470MHz - 5725MHz; Wi-Fi 5.8GHz : 5725MHz - 5850MHz WLAN 2.4GHz: ≤20.00dBm EIRP Maximum output power (Declaration for EU WLAN 5GHz : ≤20.00dBm EIRP Compliance) WLAN 5.8GHz : ≤14.00dBm EIRP 14.2.
  • Page 148 Unique Identifier Trade Name: Pantum Model No.: M73****(suffix *: A-Z, 0-9, hyphen or blank) Responsible Party – U.S. Contact Information Company Name: PANTUM (USA) CO.,LTD Office address:13875 Ramona Ave.,Chino, CA 91710 TEL: 626-965-6662 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
