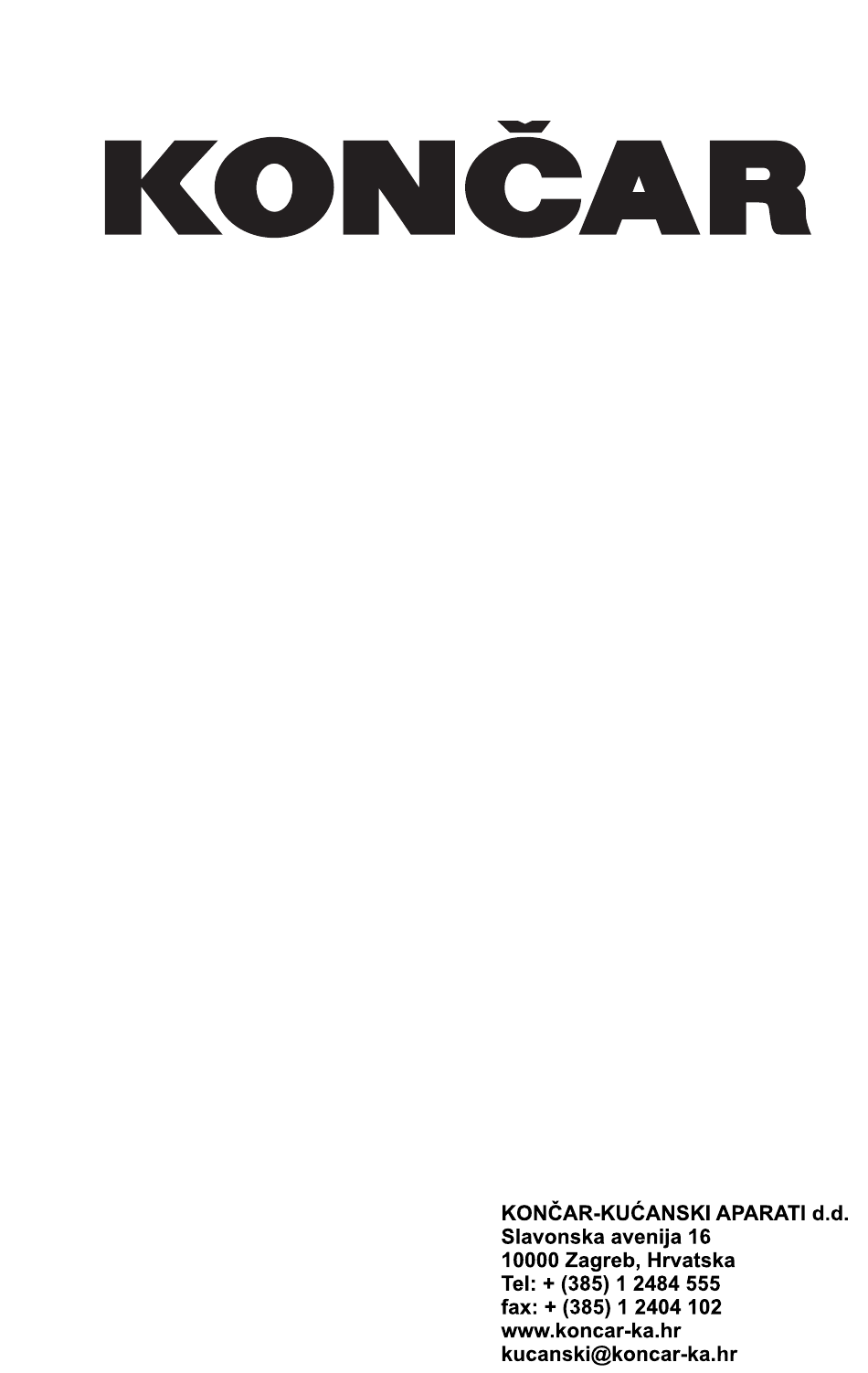

- Page 1 USER MANUAL / UPUTE ZA UPORABU REFRIGERATOR / HLADNJAK...
- Page 2 USER MANUAL ENGLISH Content 1. Safety Information Page 1~ Page ~9 2. Product description Page 10~16 3. Installation 4. Daily use Page 17~26 Page 26~27 5. Troubleshooting...
- Page 3 SAFETY INFORMATIONS! Before first use In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
- Page 4 Children should be supervised to ensure that they do not play with the appliance. Leaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric...
- Page 5 WARNING! Do not touch the light bulb if it has been on for a long period of the time could be very hot. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING! Do not locate multiple portable socket- outlets or portable power suppliers at the rear of the appliance.
- Page 6 - bed and breakfast type of environments - catering and similar non-retail applications WARNING! Any electrical componentsplug, power cord, compressor and etc.must be replaced by a certified service agent or qualified service personnel. WARNING! The light bulb supplied with this appliance is a “special use lamp bulb”...
- Page 7 Daily use Do not put hot on the plastic parts in the appliance. Do not place food products directly against the rear wall Frozen food must not be refrozen once it has been thawed out. Store pre packed frozen food in accordance with frozen food manufacture , s instructions -Appliance , s manufactures storage recommendations should be strictly adhered to.
- Page 8 frozen food, storing or making ice-cream and making ice cubes. One-, two- and three - star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food) If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.
- Page 9 Adequate air circulation should be around the appliance, lacking this leads to overheating. achieve sufficient ventilation follow the instructions relevant to installation. -Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
- Page 10 PRODUCT DESCRIPTION Control panel Water/ ice Dispenser (Remove away the metal compressor room cover) Main control board Power cord Compressor External main water valve This illustration is only for hinting, the detail please check your appliance.
- Page 11 PRODUCT DESCRIPTION Ice box cover Ice storage box Fridge balcony*4 Fridge shelves*3 Freezer shelves*3 Freezer drawers*2 Fridge crispers*2 Freezer balcony*1 Water pipe connector This illustration is only for hinting, the detail please check your appliance.
- Page 12 INSTALLATION...
- Page 13 Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: for refrigerating appliances with climate class: extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C;...
- Page 14 INSTALLATION Product accessories Water pipe parts * 1 Water filter * 1 Water pipe connector*1 Water filter connector*2 Anti-slip clips *8 Dispenser water tray * 1 User manual * 1...
- Page 15 INSTALLATION 4. There is a water pipe connector at the bottom of the refrigerator freezer. Remove it from the protective cover and disconnect from the water pipe, and remember to pull the water pipe out of the lower hinge.
- Page 16 DAILY USE Important! How to install the water filter and water pipe 1.Before installing, the filter should be rinsing with water for 5 minutes or 5L of water to ensure that the toner in the filter is rinsed clean. Water source Connect tube Filter Basin...
- Page 17 4. Take out the water filter from the accessory bag, insert the connectors on both sides of the filter, then connect the water pipe and clamp into the anti-slip clips (pay attention to the direction of the filter arrow) Water filter Connectors Water pipes Anti-slip clips...
- Page 18 Caution! • The external water source must be clean and the water pressure should be 1.5~7 bar to guarantee proper working. • Check the water pipe connection, check whether there are any other things inside the ice making machine and ice storage box. •...
- Page 19 SUPER COOLING ,SUPER FREEZER ,SMART Press the ice off button to control the ice maker. If you want to close the ice maker, press this button, then the product will stop making ice until you press this button again. “ change your water filter”. In general, you should need the water filter every 6 months to ensure the highest water quality.
- Page 20 ICE OFF mode, the symbol will light on when you touch the button to close the ice maker, it means the refrigerator will stop making ice any more. REMIND CHANGING WATER FILTER mode, the symbol will light on when the water filter has been used for 6 months to remind you replace a new water filter in time.
- Page 21 5 times 3 seconds...
- Page 22 First use Cleaningtheinterior How to use the dispenser? You can get cubed ice, crushed ice and cooling water by pressing the paddle switch, which is selected by displaying the operation panel; Note! If the paddle switch is pressed continuously for more than 3 minutes, the dispenser will stop working to protect the electrical components.
- Page 23 Important! This section tells you how to avoid most issues you would happen. We recommend that you read through them carefully before using the appliance. 1. When taking water for the first time or not taking water for a long time, please take out 1~2L of water and pour it away;...
- Page 24 2) Clean the ice storage box regularly If the ice is not used for a long time or the freezer door is frequently opened, the ice in the ice storage box may melt and became frozen together, which makes the distributor outlet blocked. The ice in the ice storage box needs to be removed manually.
- Page 25 Thawing Ice-cube Accessories Movable shelves Positioning the door balconies...
- Page 26 Daily use...
- Page 27 Helpfulhintsandtips Hints for freezing Hints for storage of frozen food Hints for fresh foodrefrigeration Hints for refrigeration Cleaning...
- Page 28 Troubleshooting If you experience a problem with your appliance or are concerned that theappliance is not functioning properly, you could follow below tips to check the appliancebefore calling for service.
- Page 29 Failing to access the water source Make sure the water source and the or open the water valve valve is open Dispenser couldn’t get Check whether the filter direction is The filter is not installed correctly cooling water reversed The water valve or connectors are Check whether water valve or not installed correctly connectors are reversed...
- Page 30 UPUTE ZA UPORABU HRVATSKI Stranica 1~6 1. Sigurnosne informacije Stranica 7~8 2. Opis proizvoda Stranica 9~15 3. Instal Stranica 16~25 . Svakodnevna uporaba...
- Page 31 UPOZORENJA I SIGURNOSNE INFORMACIJE Prije prve uporabe Za vašu sigurnost i pravilnu uporabu, prije postavljanja i uporabe savjetima i upozorenjima. < ih osoba...
- Page 32 nformacije...
- Page 33 oštećenje <...
- Page 34 Svakodnevna uporaba...
- Page 35 12.h 13.Nemojte vaditi i dirati namirnice u zamrzivaču vlažnim mokrim rrukama jer to može izazvati abrazije kože ili ozebline. 14.Postolje, ladice,vrata itd.nemojte koristiti za stajanje ili podupiranje. 15.Jednom odmrznute namirnice ne smiju se ponovno zamrzavati. 16.Nemojte konzumirati sladoled ili kocke leda izravno iz zamrzivača jer to može izazvati ozebline na ustima.
- Page 36 • < • • • napa Ušteda energije nemojte stavljati topla jela a"...
- Page 37 KW/^ WZK/sK E WKD E...
- Page 38 KW/^ WZK/sK E WKD E...
- Page 39 INSTALACIJA VENTILACIJA razmake. < , vrata i magnetna brtva spustiti. Vrata...
- Page 40 Pozicioniranje mjesto gdje temperatura okoline odgovara klimatskom razredu okoline u rasponu od 10 °C do 32 °C; (SN) rasponu od 16 °C do 32 °C;(N) u rasponu od 16 °C do 38 °C;(ST) - trop od 16 °C do 43°C;(T) Instalacija Osigurajte da zrak <...
- Page 41 INSTALACIJA...
- Page 54 Korisni savjeti i preporuke < • D • W • • W zamrzavanje • za zrak • E izbjegavate porast temoerature • Sol smanjuje vijek spremanja hrane. • < uzrokovati ozebline • W Savjeti za spremanje smrznute hrane •...
- Page 56 CKK0R- 01...
