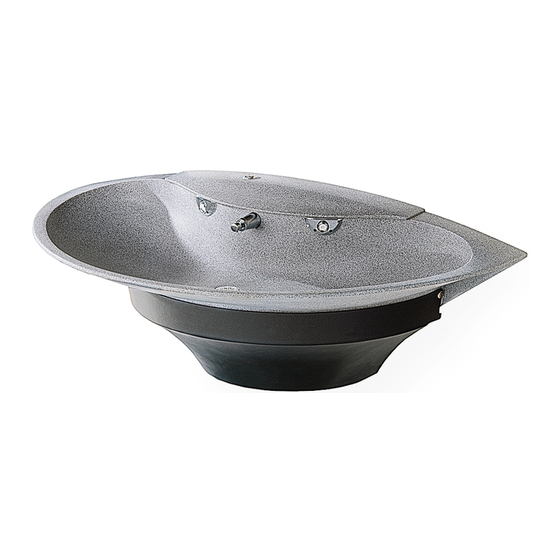

Bradley Express Crescent CRS Series Installation Manual

Bradley Express Crescent CRS Series Installation Manual

Lavatory system
Hide thumbs Also See for Express Crescent CRS Series:

Advertisement

Quick Links

CRS-3/BIR3/LSD
CRS-2/BIR3/LSD
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation.
Electrical power MUST remain off until installation is complete.
Installer's hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out
rating of 1,000 lb.
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Read this entire installation manual to ensure proper installation. When finished with the installation, file
this manual with the owner or maintenance department. Compliance and conformity to local codes and
ordinances is the responsibility of the installer. Product warranties may be found under "Products" on our
website at bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
For standard height mounting, do not exceed the recommended 33.5" distance from the fixture rim to the
finished floor.
215-1328 Rev. Q: ECO 21-08-008
© 2021 Bradley
Page 1 of 11
3/8/2021
Installation
CRS-2/BIR3, CRS-3/BIR3
Express
Lavatory System
CRS-Series

Table of Contents

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . 3-7
Cleaning and Maintenance . . . . . . . . . . . . . . . . 8
Troubleshooting BIR3 . . . . . . . . . . . . . . . . . . . . 9
Solenoid Valve Repair Parts . . . . . . . . . . . . . . 10
Navigator
Valve Troubleshooting . . . . . . . . . . 11
®
NOTE: Refer to installation manual 215-1583 for
soap system installation
NOTE: 3-station unit is shown throughout.
2-station is similar.
WARNING
NOTICE
IMPORTANT
Menomonee Falls, WI 53052 USA
Crescent
®
®
.
P .O . Box 309
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp .com
