CRS-3/BIR/LSD
CRS-2/BIR/LSD
IMPORTANT
Read this entire installation manual to
ensure proper installation.
Flush all the water supply lines before
making connections.
Wall anchors used must have a minimum
pull-out rating of 1,000 lbs.
File these instructions with the owner or
maintenance department.
215-1328 Rev. H; EN 02-817
Page 1 of 13

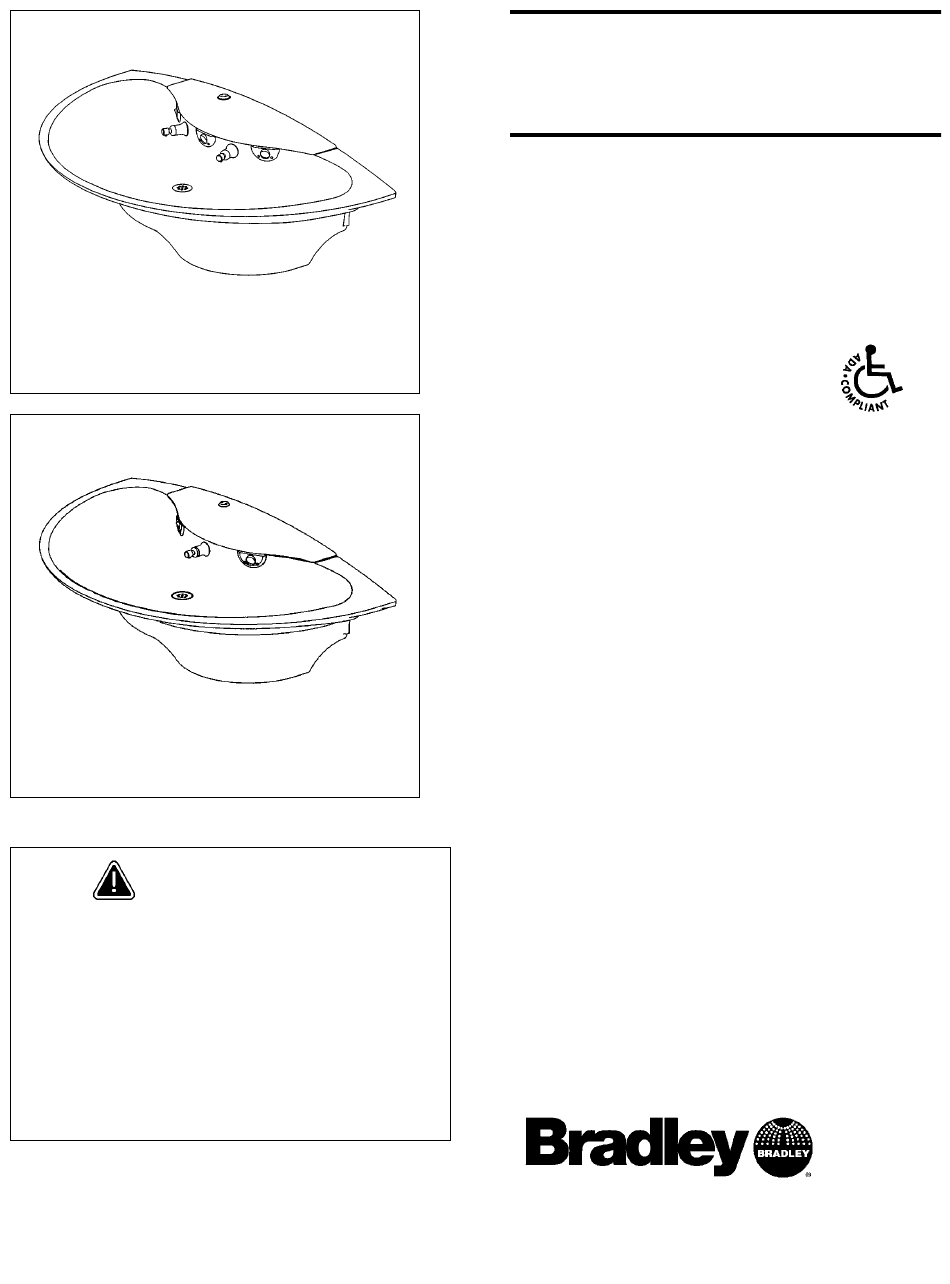

Installation
Instructions
CRS-2/BIR, CRS-3/BIR
Express® Crescent™
Lavatory System
CRS-Series
Complies with Texas
Accessibility Standards
(TAS) for Juvenile Height
applications.

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . .2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation Instructions . . . . . . . . . . . . . . . . . . . . 4-10
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . .11
Assembly of Components . . . . . . . . . . . . . . . . . . . .12
Vernatherm™ Valve Maintenance . . . . . . . . . . . . . .13
For soap system installation, refer to installation manual
215-1377
NOTE: 3-station unit shown throughout. 2-station
is similar.
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Express Crescent CRS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bradley Express Crescent CRS Series

Summary of Contents for Bradley Express Crescent CRS Series

  • Page 1: Table Of Contents

    Wall anchors used must have a minimum pull-out rating of 1,000 lbs. File these instructions with the owner or maintenance department. P.O. Box 309, Menomonee Falls, WI 53052-0309 TEL. 1-800-BRADLEY FAX 262-251-5817 215-1328 Rev. H; EN 02-817 http://www.bradleycorp.com Page 1 of 13...

  • Page 2: Pre-Installation Information

    1. This warranty is limited to replacing or repairing, at our option, transportation charges prepaid by the purchaser, any Bradley unit or part thereof which our inspection shall show to have been defective within the limitations of this war- ranty.

  • Page 3: Dimensions

    30" TAS Ages 4 thru Subtract 4" *20" 10 or 11, Grades: (508) Pre-K thru 5 or 6 & Proposed Juvenile Height ADA 24" Preschool (required Subtract 10" by some local codes) Bradley Corporation • 215-1328 Rev. H; EN 02-817...

  • Page 4: Installation Instructions

    Subtract 2" 30" TAS Ages 4 thru 10 or 11, Grades: Pre-K thru 5 or 6 Subtract 4" & Proposed Juvenile Height ADA 24" Preschool (required by some local codes) Subtract 10" Bradley Corporation • 215-1328 Rev. H; EN 02-817...
  • Page 5 Subtract 2" 30" TAS Ages 4 thru 10 or 11, Grades: Pre-K thru 5 or 6 Subtract 4" & Proposed Juvenile Height ADA 24" Preschool (required by some local codes) Subtract 10" Bradley Corporation • 215-1328 Rev. H; EN 02-817...
  • Page 6 2. Level the bowl assembly with shims if necessary and then tighten anchors. TOP COVER THREADED ROD (2) 330-078 TOP COVER BRACKET 140-852 Figure 3 WING NUTS (2) 161-076 Bradley Corporation • 215-1328 Rev. H; EN 02-817...
  • Page 7 Attach the 1/2" 90° ell to the check/stop. Attach the 1/2" cross to the the check/stop. Attach the flexible hoses from the operation boxes to the 1/2" cross (see Figure 5d). Figure 5a Figure 5b Bradley Corporation • 215-1328 Rev. H; EN 02-817...
  • Page 8 Figure 5c 1/2" CROSS 269-1585 FLEXIBLE 1/2" TEE SUPPLY HOSE 269-1150 (TO OPERATION BOX) TO SUPPLY Optional Stop/Check Valve (For single tempered or cold line assembly) S27-102 with Filter Washer 269-1188 Figure 5d Bradley Corporation • 215-1328 Rev. H; EN 02-817...
  • Page 9 2. Install six "AA" alkaline batteries (not included). 3. Wait for five seconds before testing the unit (allows sensors to adapt to site conditions). COVER SCREWS (4) FLEX HOSE WASHER Figure 6a FILTER Figure 6b Bradley Corporation • 215-1328 Rev. H; EN 02-817...
  • Page 10 5. Wait five seconds for the sensor to adapt, then test the range. If the range is okay, then replace the valve box cover and tighten the screws. Bradley Corporation • 215-1328 Rev. H; EN 02-817...

  • Page 11: Cleaning And Maintenance

    #7448 Scotch-Brite™ pad. • Repair kit: In the unlikely event your Terreon® surface becomes damaged, it can easily and inexpensively be repaired. Contact your Bradley representative to order a repair kit and be sure to specify color when ordering.

  • Page 12: Assembly Of Components

    * Items may be purchased complete. WASHER S05-142A 125-001BB Order Part No. S05-168 from your Bradley Representative. Figure 7 Other replacement parts Dual Operation Single Operation Control Control Box Box S67-218 S67-219 Bradley Corporation • 215-1328 Rev. H; EN 02-817...

  • Page 13: Maintenance Instructions

    No Water Cold Valve shuts off or drips Correct Correct Cold Cold Cold Reversed Cold Cold/below 107° Hot/above 107° Reversed No Water Reversed No Water Cold Cold Reversed Reversed Cold Cold Cold Bradley Corporation • 215-1328 Rev. H; EN 02-817...
