IMPORTANT
Read this entire installation manual
to ensure proper installation.
Flush all the water supply lines
before making connections.
Wall anchors used must have a
minimum pull-out rating of 1,000
lbs.
File these instructions with the
owner or maintenance department.
215-1325 Rev. L; EN 02-078
Page 1 of 21
Installation
Instructions

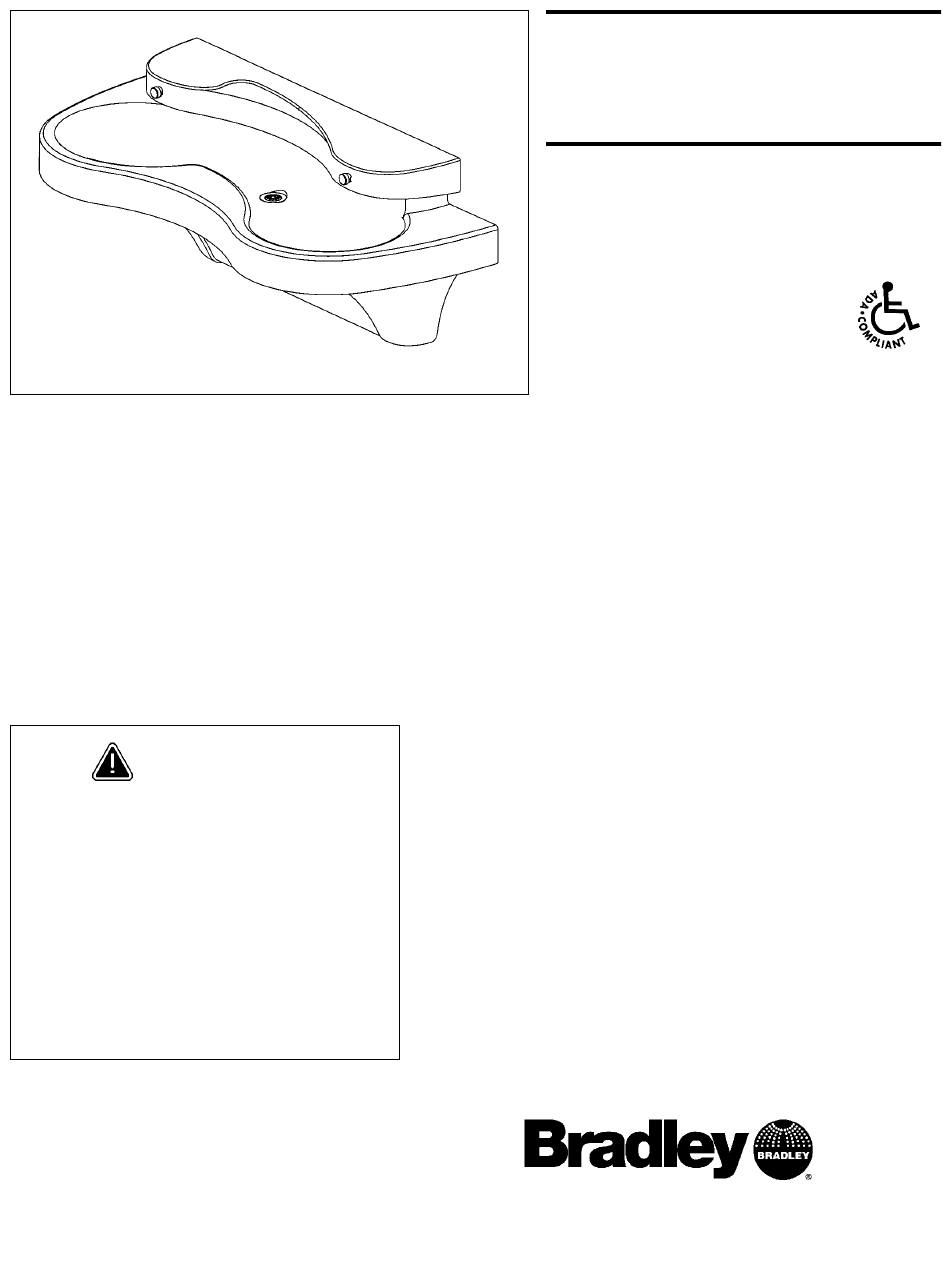

MG-2/AST
Express® Lavatory
System - MG Series
with Pushbutton
Air Valve

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . .2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Instructions . . . . . . . . . . . . . . . . 5-12
Cleaning and Maintenance . . . . . . . . . . . . . . . .12
Assembly of Components . . . . . . . . . . . . . .13-15
Metering Air Valve Maintenance . . . . . . . . . . .16
Vernatherm™ Valve Maintenance . . . . . . . . . .18
Soap System . . . . . . . . . . . . . . . . . . . . . . . .19-21
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817
