Summary of Contents for QualGear QG-PM-002-WHT

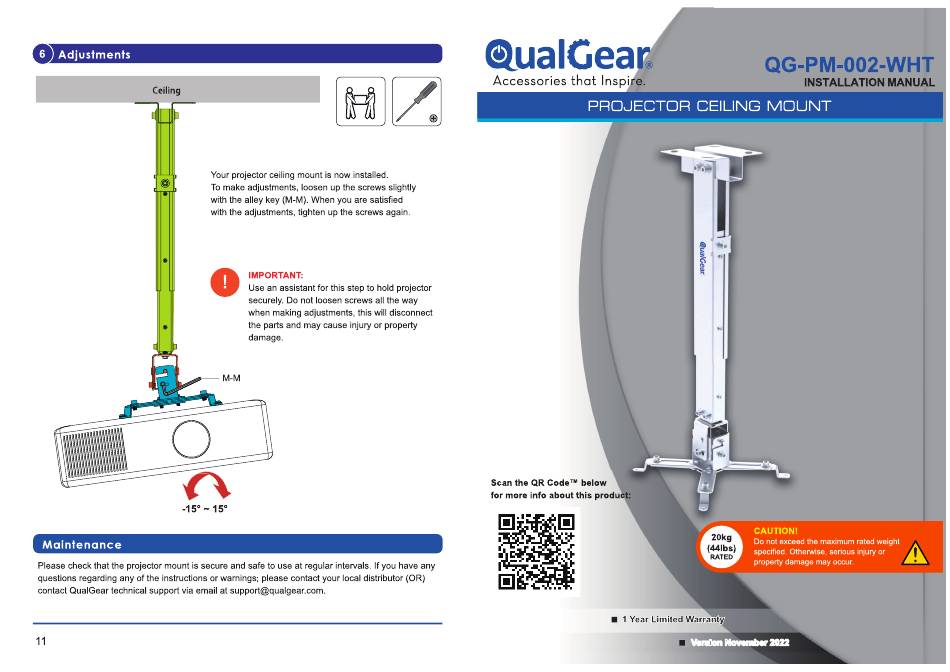

- Page 1 Version November 2022 Version November 2022...
-
Page 2: Parts Checklist
Before starting installation, please check that all parts shown in this checklist IMPORTANT: are included. If any parts are missing or damaged, contact your local distributor or support@qualgear.com for replacement parts and do not start assembly and installation WARNING until you receive all the parts. -
Page 3: Cable Management

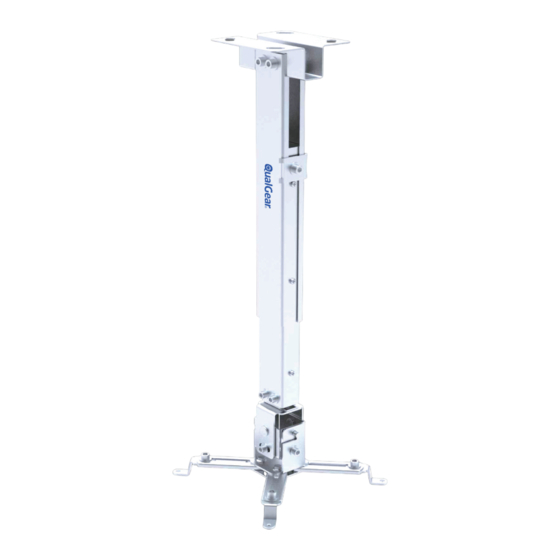

Make sure the installation direction Cable Management NOTE of the decorative cover is correct. Make sure IMPORTANT: that the installation direction of the decorative cover is correct tighten Adjust the desired height of the extension column, and then tighten the clamp plate screw using a 5mm alley key (M-N) - Page 4 Installing the Projector Ceiling Mount Assembly Mounting to a Wooden Ceiling Attach the adjustable extension column to the ceiling plate with four M6 screws (M-B) and four D6 washers (M-L) using a 5mm Allen key (M-N) as shown below. For concrete ceiling mounting, follow Step 3b. For mounting to drywall, use toggle anchors (not included).
- Page 5 Mounting to a Brick or a Concrete Ceiling Do NOT use power drill and do NOT over tighten the lag bolts. Hold the marking template provided against the ceiling where you want to install the projector, mark four holes for drilling. 70mm 70mm (2.7")
- Page 6 Installing Adapter Bracket to the Projector Connecting the Projector Mount Assembly to the Extension Column To adjust the height of the extension column, M-O/ M-P/ M-Q loosen the clamp plate screw with the 5mm Allen M-H/ M-I/ M-J/ M-L key (M-N), adjust the extension column to a desired position, and then tighten the clamp plate screw as shown on the left.
