QualGear QG-SB-002-BLK Installation Manual

Universal speaker wall mount

Download this manual

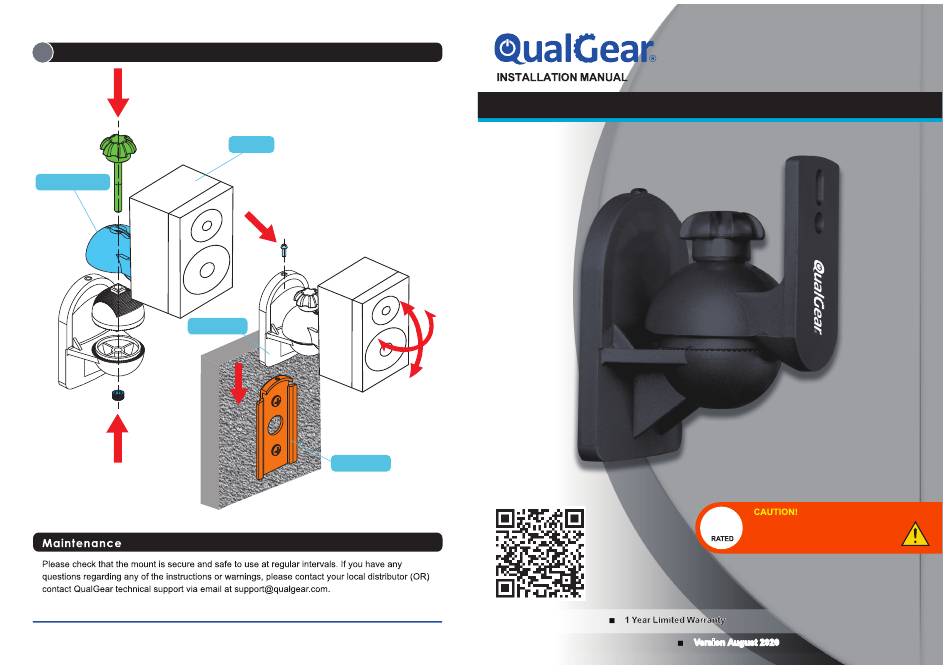

Installing the Speaker onto the Mount

Assemble the speaker bracket and speaker assembly with the

speaker mount by using the knob and flat nut that was previously

removed from step 1.

Speaker Bracket

Speaker Mount

Speaker can be adjusted by

swiveling±70° left or right, and

by tilting ±20°up or down.

Speaker

Then insert the assembled

speaker mount with speaker

onto the wall plate. Secure it

by tightening the screw.

Wall Plate

UNIVERSAL SPEAKER WALL MOUNT

Scan the QR Code™ below

for more info about this product:

QG-SB-002-BLK

3.5kg

Do not exceed the maximum rated weight

(7.7lbs)

specified. Otherwise, serious injury or

property damage may occur.

Version August 2020

Page 1 Installing the Speaker onto the Mount QG-SB-002-BLK Assemble the speaker bracket and speaker assembly with the UNIVERSAL SPEAKER WALL MOUNT speaker mount by using the knob and flat nut that was previously removed from step 1. Speaker Speaker Bracket Then insert the assembled speaker mount with speaker onto the wall plate.
Page 2 Please read the entire installation manual before you start installation and assembly. included before you start installation and assembly. Part and Hardware Package WARNING Do not begin to install your QualGear product Tighten screws firmly, but do not over tighten.  ...
Page 3 Installing the Speaker Bracket 25mm 25mm (1") (1") ø 2.4mm Speaker Screw the speaker bracket onto the speaker. (ø 3/32") 2 -B L Speaker Bracket B -0 0 Q G -S Using the marking template, mark two holes for Using a power drill and 3/32" drill bit, drill pilot drilling on the centerline of the stud.
Page 4 Mounting to a Concrete Wall 30mm 30mm (1.2") (1.2") Marking Template ø 5.5mm (ø 7/32") 2 - B - 0 0 - S B Using a power drill and 7/32" masonry drill bit, drill pilot holes of 7/32" (5.5mm) diameter and at least 1.2"...
