Attaching the 1.5" NPT Pipe to the Suspended Ceiling Adapter
IMPORTANT!
Do not loosen screws all the way when making adjustments,
this will disconnect the parts and may cause injury or property damage.
Alley Key
(I)
(F) x 2
OR
(G) x 2

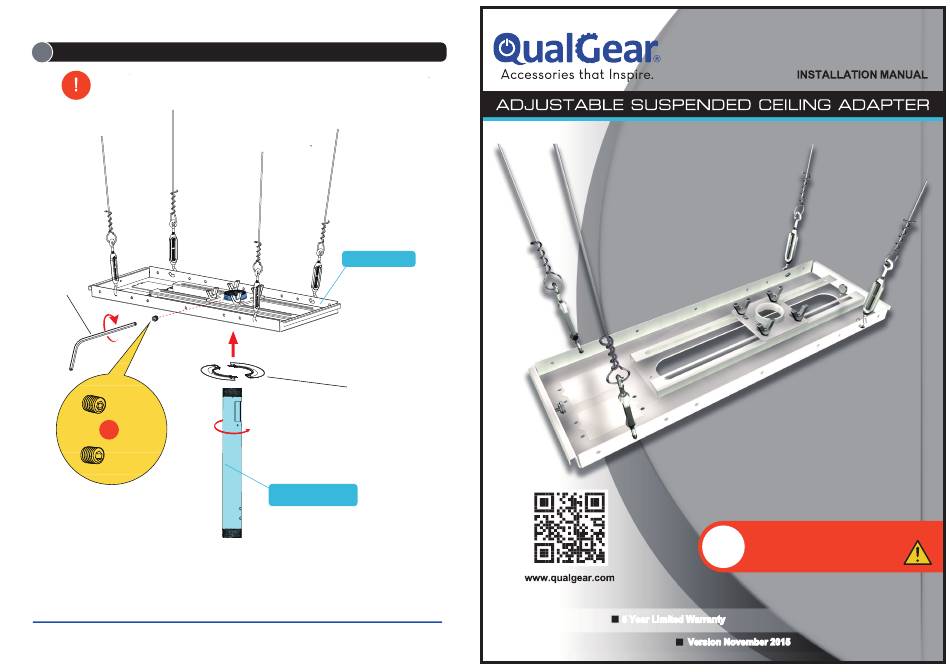

To connect the 1.5" NPT pipe (sold separately) to the ceiling adapter, twist the male threaded end
into the female thread of the adapter. Then secure the position with screws (F or G) using the
allen key (I). Decorative cover (H) can be attached post-installation to make the appearance look tidy.
Ceiling Adapter
Decorative Cover
(H)
1.5" NPT Pipe
(not included)
QG-PRO-PM-SCA-W
CAUTION!
45.5kg
Do not exceed the maximum rated weight
(100lbs)
specified. Otherwise, serious injury or
RATED
property damage may occur.
5 Year Limited Warranty
5 Year Limited Warranty
Version November 2015
Version November 2015
