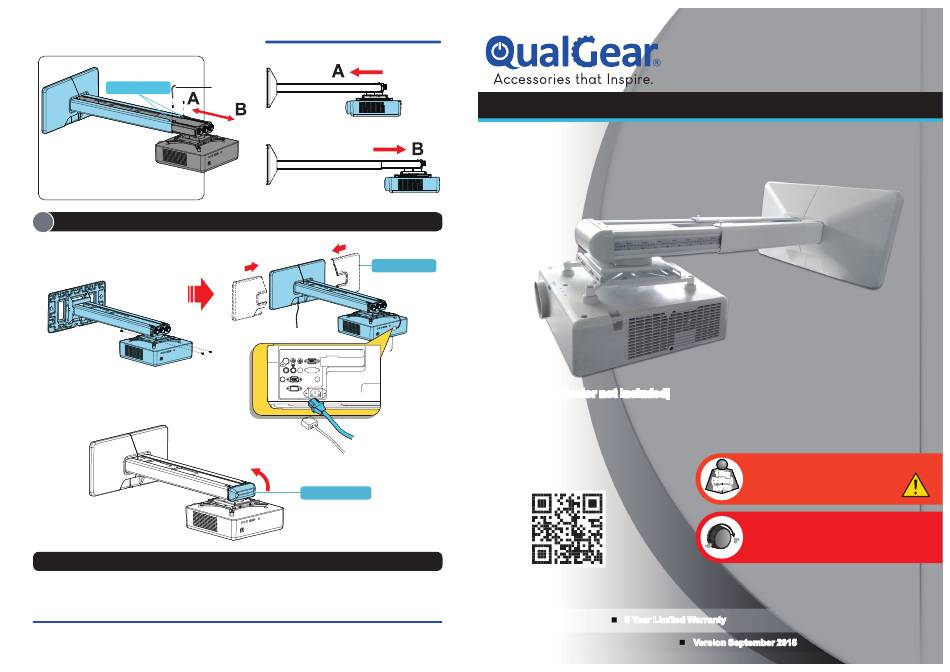

Adjusting the Forward/Backward Slide
W-D
Locking Screws
Installing the Wall Plate Covers and the Decorative Cover
7
Connect the cables to the projector, and install
the wall plate covers and the decorative cover.
Maintenance
Please check that the projector mount is secure and safe to use at regular intervals. If you have any
questions regarding any of the instructions or warnings, please contact your local distributor (OR)
contact QualGear technical support via email at support@qualgear.com.
11
Wall Plate Cover
Decorative Cover
PROJECTOR WALL MOUNT
[Projector not included]
[Projector not included]
www.qualgear.com
5 Year Limited Warranty
5 Year Limited Warranty
Version September 2015
Version September 2015
QG-PM-FT1-WHT
INSTALLATION MANUAL
CAUTION!
Do not exceed the maximum rated weight
15kg
15kg
(33lbs)
(33lbs)
specified. Otherwise, serious injury or
RATED
RATED
property damage may occur.
ADJUSTABLES: Vertical Tilt, Horizontal Roll, and
Horizontal Rotation: +/- 5 degrees
Horizontal Slide (Forward/Backward): 358 – 658mm,
5° 5°
-5°
from the center of the wall plate
-5°
Horizontal Slide (Left/Right): 90mm
Advertisement
Table of Contents
Related Manuals for QualGear QG-PM-FT1-WHT
Summary of Contents for QualGear QG-PM-FT1-WHT
-
Page 1: Installation Manual
Please check that the projector mount is secure and safe to use at regular intervals. If you have any questions regarding any of the instructions or warnings, please contact your local distributor (OR) contact QualGear technical support via email at support@qualgear.com. 5 Year Limited Warranty... - Page 2 Before starting installation, please check that all parts shown in this checklist are included. If any parts are missing or damaged, contact your local distributor or WARNING support@qualgear.com for replacement parts and do not start assembly and installation until you receive all the parts. Mounting Bracket (x1) Do not begin to install your QualGear product Tighten screws firmly, but do not over tighten.
- Page 3 Cable Management Mounting to a Wooden Stud Wall For concrete or brick wall NOTE Mounting Bracket mounting, follow Step 3b. Stud Finder Feed the projector cable(s) through the mounting bracket. Checking the Installation Position Using an edge-to-edge stud finder, find the Using a level, mark the centerline of the stud.
- Page 4 Mounting to a Concrete or a Brick Wall Brick Concrete Wall Plate Hold the marking template against the wall where you want to install the projector, mark five holes for drilling. 60mm (2. " 4 ( 3/8") 5. Using a 5mm allen key (W-C), mount the wall plate and fasten with the M6x55mm screws (W-A). Using a power drill and a 3/8"...
- Page 5 Installing the Mounting Bracket onto the Wall Plate Mounting Bracket Wall Plate Using 5mm allen key (W-C), attach the mounting bracket to the wall plate with screws (W-E). Place concrete anchor (W-B) in each hole. Tap each anchor flush with the Installing the Projector onto the Projector Wall Mount wall using a hammer.
- Page 6 Adjusting the Horizontal Roll According to the type of your projector, choose the appropriate screws, and then attach the projector mounting plate to the projector, with or without the extension arms. WITHOUT EXTENSION ARMS M-A/ M-B/ M-C/ M-D/ M-E/ M-F/ M-G/ M-H/ M-I FRONT VIEW...
