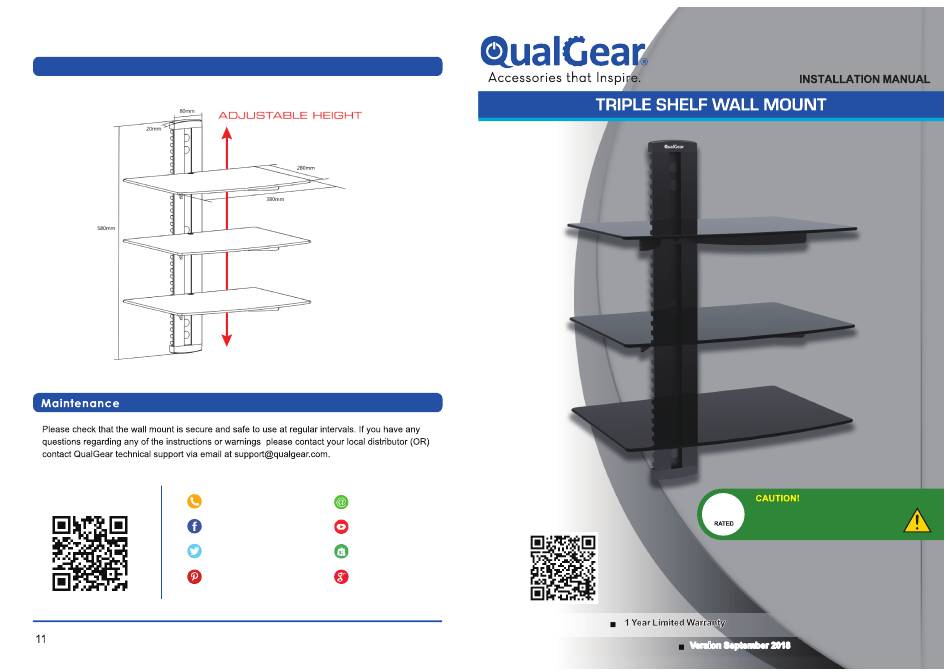

Product Dimensions
Scan the QR Code™
+1 (972) 423-8960
below to contact us:
facebook.com/qualgear
twitter.com/qualgear
pinterest.com/qualgearusa
;
support@qualgear.com
youtube.com/qualgear
store.qualgear.com
google.com/+qualgear
Scan the QR Code™ below
(17.6lbsx3)
(17.6lbsx3)
for more info about this product:
Version September 2018
Version September 2018
QG-DB-003-BLK
8kgx3
8kgx3
Do not exceed the maximum rated weight
specified. Otherwise, serious injury or
property damage may occur.
Advertisement
Related Manuals for QualGear QG-DB-003-BLK
Summary of Contents for QualGear QG-DB-003-BLK
- Page 1 QG-DB-003-BLK Product Dimensions Scan the QR Code™ +1 (972) 423-8960 support@qualgear.com below to contact us: 8kgx3 8kgx3 Do not exceed the maximum rated weight Scan the QR Code™ below (17.6lbsx3) (17.6lbsx3) specified. Otherwise, serious injury or for more info about this product: facebook.com/qualgear...
-
Page 2: Parts Checklist
Before starting installation, please check that all parts shown in this checklist IMPORTANT: are included. If any parts are missing or damaged, contact your local distributor or support@qualgear.com for replacement parts and do not start assembly and installation WARNING until you receive all the parts. - Page 3 Mounting to a Wooden Stud Wall Wall Plate For concrete wall NOTE mounting, follow Step 1b. Stud Finder Using an edge-to-edge stud finder, find the Using a level, mark the centerline of the stud. edges of the stud. 50mm 50mm (2") (2") Mount the wall plate (C) and tighten it with the provided...
- Page 4 Mounting to a Concrete Wall NOTE Do NOT use power drill and do NOT over tighten the lag bolts. Marking Template Wall Plate QG-DB- 003-BL Hold the marking template (F) provided against the wall where you want to install your AV equipment, mark six holes for drilling.
- Page 5 Assembling the Glass Holder and the Connecting Piece Connecting Piece Tighten screws until Connecting Piece NOTE 3mm of space is Glass Holder between part D and B At the desired location, use the Install the connecting pieces (D) to the glass holders (B). Allen key to tighten the screws until the glass holders are secured.
- Page 6 Cable Management (AV equipment not included) If adjustment is necessary, loosen screws (P-C) with Allen key (P-F), slide the glass holders to the desired position then tighten screws again to secure. Installing the Glass Shelves Glass Shelf Place the glass gently on the mounted glass holder. Run the cable through the cable clips. Glass Holder Attach the glass shelves to the glass holder using the plastic bushes (P-D), screws (P-C) and Allen Key (P-F)."...
