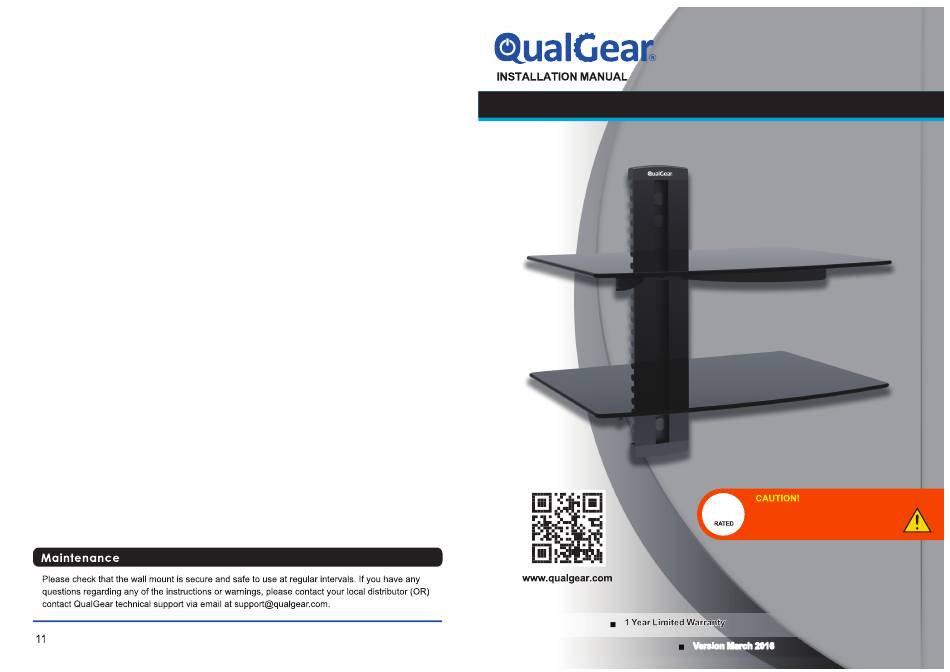

- Page 1 QG-DB-002-BLK DUAL SHELF WALL MOUNT 8kgx2 8kgx2 Do not exceed the maximum rated weight (17.6lbsx2) (17.6lbsx2) specified. Otherwise, serious injury or property damage may occur. Version March 2016 Version March 2016...
-
Page 2: Parts Checklist
Before starting installation, please check that all parts shown in this checklist IMPORTANT: are included. If any parts are missing or damaged, contact your local distributor or support@qualgear.com for replacement parts and do not start assembly and installation WARNING until you receive all the parts. - Page 3 Mounting to a Wooden Stud Wall Wall Plate For concrete wall NOTE mounting, follow Step 1b. Stud Finder Using an edge-to-edge stud finder, find the Using a level, mark the centerline of the stud. edges of the stud. 50mm 50mm (2") (2") Mount the wall plate (C) and tighten it with the provided...
- Page 4 Mounting to a Concrete Wall NOTE Do NOT use power drill and do NOT over tighten the lag bolts. Wall Plate Marking Template QG-D B-002 -BLK Hold the marking template (F) provided against the wall where you want to install your AV equipment, mark four holes for drilling.
- Page 5 Assembling the Glass Holder and the Connecting Piece Connecting Piece Tighten screws until NOTE 3mm of space is Glass Holder between part D and B At the desired location, use the Install the connecting piece (D) to the glass holder (B). allen key to tighten the screws until the glass holder is secured.
-
Page 6: Cable Management
Cable Management (AV equipment not included) If adjustment is necessary, loosen screws P-C with allen key P-F, slide the glass holder to the desired position then tighten screws again to secure. Installing the Glass Shelves Glass Shelf Place the glass gently on the mounted glass holder. Run the cable through the cable clips. Glass Holder Attach the glass shelves to the glass holder using the screw and the plastic bush.
