A V O C A D C S e r i e s I n s t a l l a t i o n G u i d e
Thanks for choosing our Avoca DC Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan Only):-
MADC133WWR

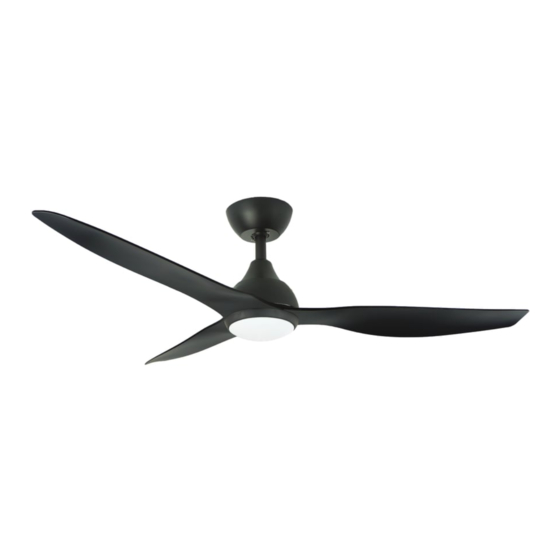

1320mm 3 Blade Ceiling Fan Matt White
MADC133MMR
1320mm 3 Blade Ceiling Fan Matt Black
MADC133WOR
1320mm 3 Blade Ceiling Fan Matt White/Oak
MADC123WWR
1219mm 3 Blade Ceiling Fan Matt White
MADC123MMR
1219mm 3 Blade Ceiling Fan Matt Black
MADC123WOR
1219mm 3 Blade Ceiling Fan Matt White/Oak
Models Parameters (Fan and LED Light):-
MADC1333WWR
1320mm 3 Blade Ceiling Fan Matt White with 20W LED Light
MADC1333MMR
1320mm 3 Blade Ceiling Fan Matt Black with 20W LED Light
MADC1333WOR
1320mm 3 Blade Ceiling Fan Matt White/Oak with 20W LED Light
MADC1233WWR
1219mm 3 Blade Ceiling Fan Matt White with 20W LED Light
MADC1233MMR
1219mm 3 Blade Ceiling Fan Matt Black with 20W LED Light
MADC1233WOR
1219mm 3 Blade Ceiling Fan Matt White/Oak with 20W LED Light
Part List:
Qty 1x motor assembly
Qty 1x instruction manual
Qty 1x hanging bracket
Qty 1x wall control kit
Application
Flat Surface / Ceiling
How to Assemble
Fg.1
Align the bracket and screw the hanger bracket to
the ceiling tightly.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
Slope Ceiling up to 15°
Qty 1x screw kit
Qty 1x balancing kit
Qty 3x blades
Corrugated Ceiling
Fg.2
Wire to mains as illustrated
Apex Ceiling
