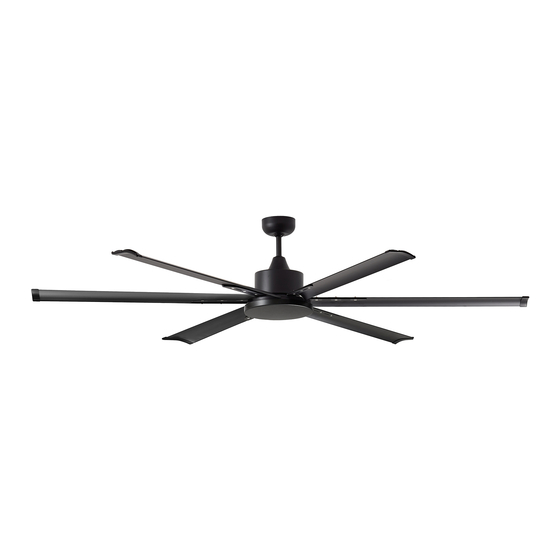

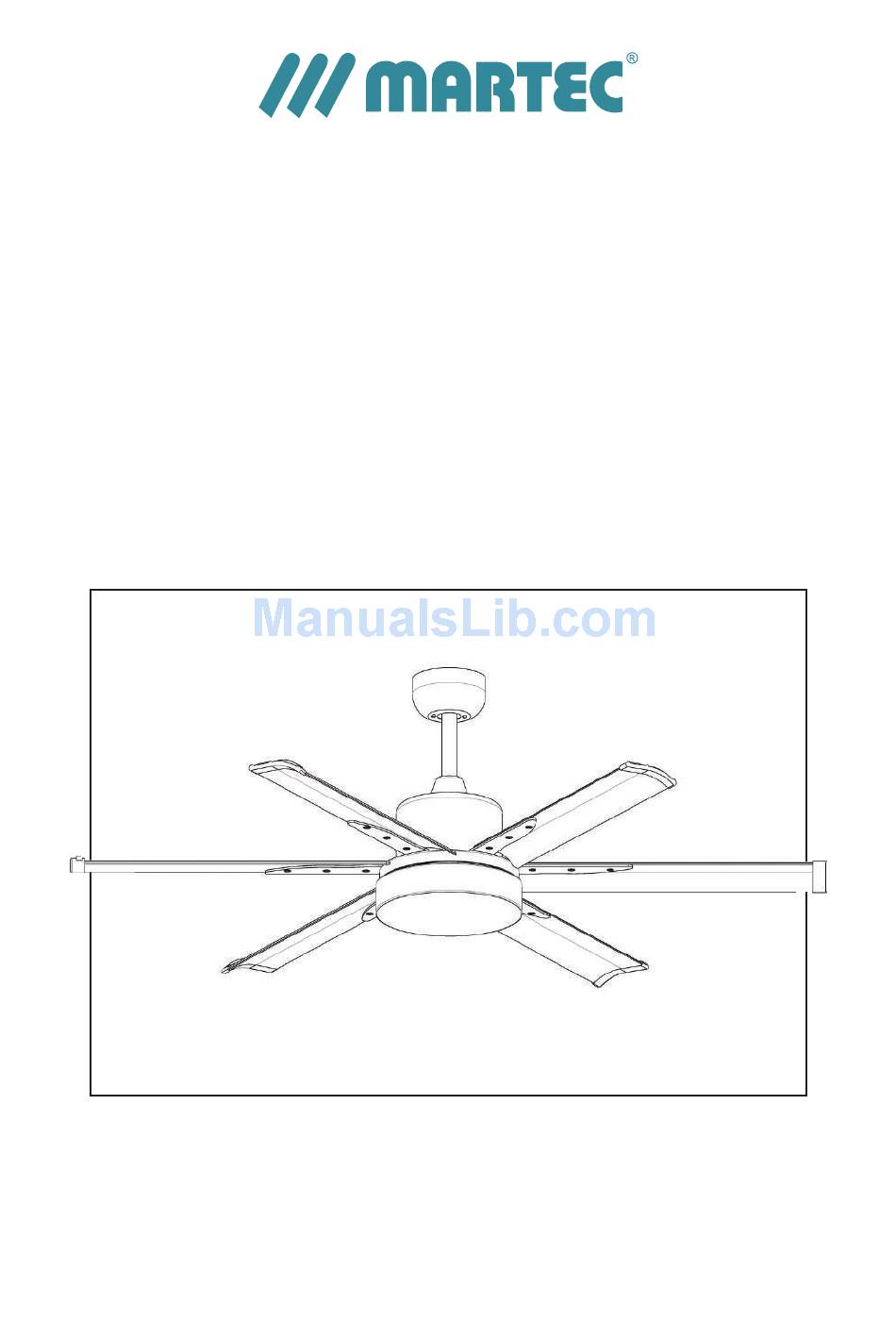

- Page 1 Albatross Series Ceiling Fan Instruction Book Models: MAFM MAFML2 MAFML3 MAFML5...
-
Page 2: Important Safeguards
Ltd and supplied within this package, as this will void warranty. WARNING Only approved Martec Pty Ltd wall controllers should be used for the operation of our fans. The use of unauthorised controllers will void the warranty. DO NOT mix blades from one fan to another. All blades must be replaced if damaged. -
Page 3: Parts List
PARTS LIST DESCRIPTION QUANTITY Motor assembly Instruction manual Screw kit Balancing kit Hanging bracket Remote control kit Without Light With Light Page 2 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au... -
Page 4: How To Assemble
HOW TO ASSEMBLE Secure the hanger bracket to ceiling beam or a suitable piece of timber inserted between the ceiling beams. Martec Pty Ltd recommends the bracket to be attached with two long screws as supplied within the package. (See Fig.1.) Place fan into hanger bracket and align Ball Joint Slot with hanger bracket as illustrated. - Page 5 HOW TO REMOVE THE SHADE FOR INSTALLING LIGHT BULBS (Version with lights) Turn anticlockwise to remove the shade. (See Fig.5.) Fig.5 CCT (Colour changeable temperature) Simply flick the switch on the LED plate (See Fig.6.) to select the desired colour temperature (3000K, 4000K or 5000K).
- Page 6 Page 5 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au...
- Page 7 WIRING SCHEMATIC DIAGRAM FOR RECEIVER INSTRUCTIONS AND FUNCTIONS OF TRANSMITTER LED indicator light Light ON/OFF (use to switch dim the LED light within 1 second) Speed of the fan (1 high speed – 5 low speed) Timing control of the fan Direction of the fan (reverse switch) Fan ON/OFF 12V battery should be used in Transmitter...
-
Page 8: Important Reminders
INSTALLING RECEIVER REMOTE CONTROL IMPORTANT REMINDERS Please note: Receiver must be correctly installed in the mounting bracket on fan When the transmitter cannot control the receiver, please check the battery has sufficient charge in the transmitter. When the transmitter cannot control the receiver, please check if there is any existence of similar remote controlled products nearby, causing interference with each other. - Page 9 Martec Pty Ltd service network. The Martec Pty Ltd service network is defined at our discretion, yet is limited by the boundary of the city in which you live. Travel outside of the city limits by the Martec Pty Ltd authorised service agent will incur commercial costs to be paid for by the purchaser at a rate calculated by the number of kilometres travelled beyond the city limits.
- Page 10 With the exception of the Precision Stainless Steel 316 ceiling fan, none of Martec’s Ceiling Fans are meant for outdoor use, and will either rust or encounter problems which are not covered within this warranty.
-
Page 11: Product Description
................................................................................. I, the Customer, hereby acknowledge that I have read and agree with the Martec Pty Ltd warranty statement and the conditions found within regarding the warranty service and its limitations. I, the Customer, acknowledge that Martec Pty Ltd reserves the right to charge me, the...
