Summary of Contents for Martec Ariel Series

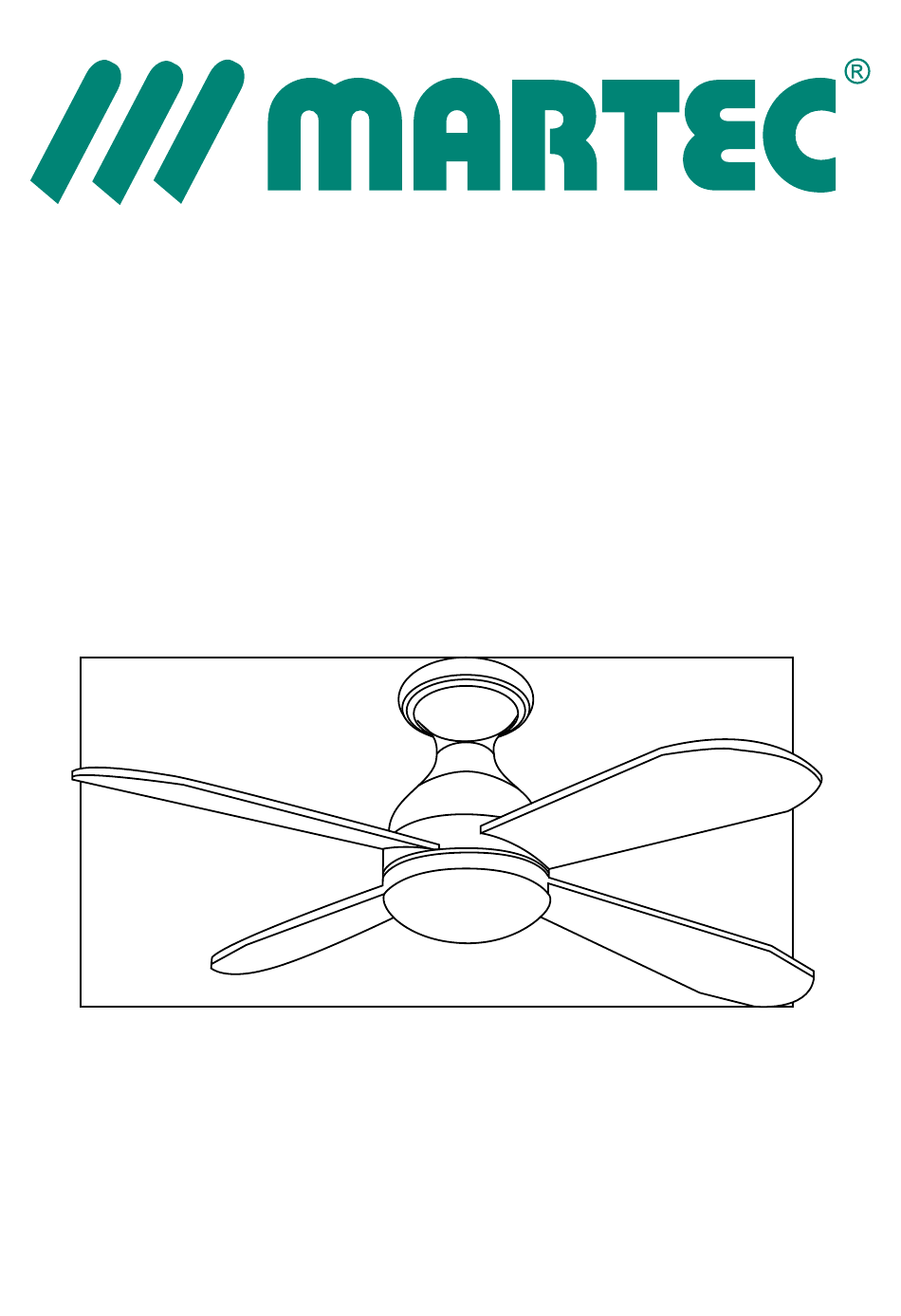

- Page 1 Ariel Series Model: MAF114 & MAF1142...
-
Page 2: Important Safeguards
Thank you for purchasing your Martec Ariel Series product. Please read all instructions carefully before assembly and use. IMPORTANT SAFEGUARDS Read these instructions carefully before installing or using the product. Keep the instructions handy for future reference. SAFETY Installation of fans must follow SAA standards and meet local Authority regulations. A fully qualified and licensed electrician lawfully must carry out installation. - Page 3 CAUTION: To reduce the risk of electric shock, do not install the product where it can be exposed to rain, moisture or any liquid. With the exception of Martec’s Precision 316 Stainless Steel fan (which can be installed in covered or enclosed outdoor environments), all of Martec’s (and FourSeasons) ceiling fans should not...
-
Page 4: Assembly Drawing
ASSEMBLY DRAWING MAF114 A. Fan Motor Assembly B. Mounting Bracket C. Fan Blade D. Bottom Housing E. Wall Control F. Balancing Kit MAF1142 G. Fan Motor Assembly H. Mounting Bracket I. Fan Blade J. Glass Bowl K. Wall Control L. Blancing Kit M. -
Page 5: How To Assemble
(4) long wood screws as supplied within the packaging. (See Fig 1) NOTE: Martec Pty Ltd assumes that the installation of this ceiling fan is carried out as per the instruction manual i.e. mounted to a solid timber structure. It is the purchasers responsbility to ensure that the installatin electrician has carried out the installation of this ceiling fan as per the instruction manual. - Page 6 2. Place fan into hanging bracket and connect all cables to the terminal block. (See Fig 2) At this point c heck every screw, nut, and bolt to ensure that they are as tight as they can be, as they can work loose during shipping. This will avoid the risk of any unnecessary wobbling.
-
Page 7: Installing Blades
INSTALLING BLADES Insert blades one at a time through slots in the motor housing. Secure each blade with three screws and washers as provided, through the opening in the light disc. (See Fig 4) Once you have finished installing all four (4) blades, either screw on the bottom plate (if you have the MAF114 model, See Fig 5) or install lamp and glass shade (if you have the MAF1142 model, See Fig 6). - Page 8 REMOVING AND REPLACING THE LIGHT BULB / SHADE Carefully twist the light shade anti-clockwise to remove. Once the lamp is fitted, place glass shade into light base and twist clockwise. (See Fig 6) Warning: Do not overtighten light shade as expansion and contraction of metal housing may cause lamp shade to get stuck.
- Page 9 USE IN ALL SEASONS Always ensure that the fan is set to “OFF” and the blades have stopped rotating prior to changed the direction the blades rotate. The reverse switch on the fan sohuld be set to “SUMMER” (Forward motion) during warmer seasons to move the blades in an anti-clockwise direction, and “WINTER”...
-
Page 10: Remote Control (Optional)
NOTE: Only the remote control supplied within this packaging or remote controls approved by Martec Pty Ltd can be used with this fan in order to avoid the voiding of the warranty. SUPPLY CIRCUIT... -
Page 11: Wall Control
Please refer to the instruction sheet packed with the control unit for more information about the wirirng and installation. NOTE: Only the wall control provided within the packaging or a wall control approved by Martec Pty Ltd can be used with this fan in order to avoid the warranty being voided. TO NEUTRAL... - Page 12 EXPLODED DIAGRAM (MAF114)
- Page 13 EXPLODED DIAGRAM (MAF1142) Ballast Lamp Light Back Plate Socket Washer Washer Glass Shade...
- Page 14 Martec Pty Ltd service network. The Martec Pty Ltd service network is defined at our discretion, yet is limited by the boundary of the city in which you live. Travel outside of the city limits by the Martec Pty Ltd authorised service agent will incur commercial costs to be paid for by the purchaser at a rate calculated by the number of kilometres travelled beyond the city limits.
- Page 15 ................................................................................. I, the Customer, hereby acknowledge that I have read and agree with the Martec Pty Ltd warranty statement and the conditions found within regarding the warranty service and its limitations. I, the Customer, acknowledge that Martec Pty Ltd reserves the right to charge me, the...
