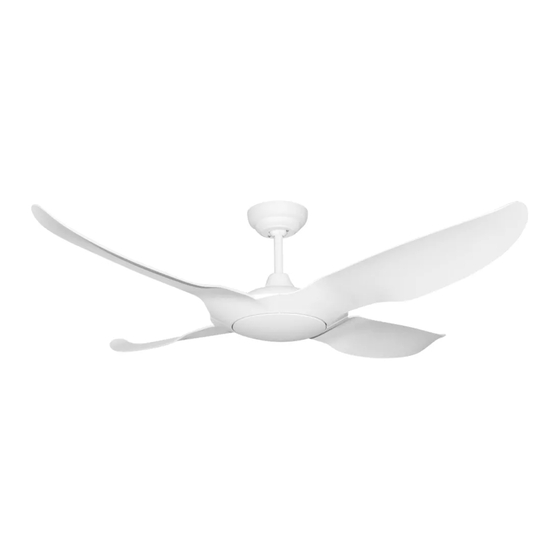

Easy Switch Blade Ceiling Fan
INSTALLATION/ASSEMBLY MANUAL
MZF134WSR / MZF134TSR Zodiac Ceiling Fan
MZF18WS / MZF18TS Optional Light Kit (Sold Separately)
2
YEAR
In-Home
Quick Connect
System
Warranty*
ZODIAC
and Light Kit (optional)
Available in White and Titanium Silver
54W
DC
MOTOR
Energy
Brushless
Efficient
Quiet
Remote Control
www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au
52"
6 Speed
Lightweight
Easy Switch
ABS Blades
Blade System
2
19º
Blade
Tropical
Pitch
Rated
