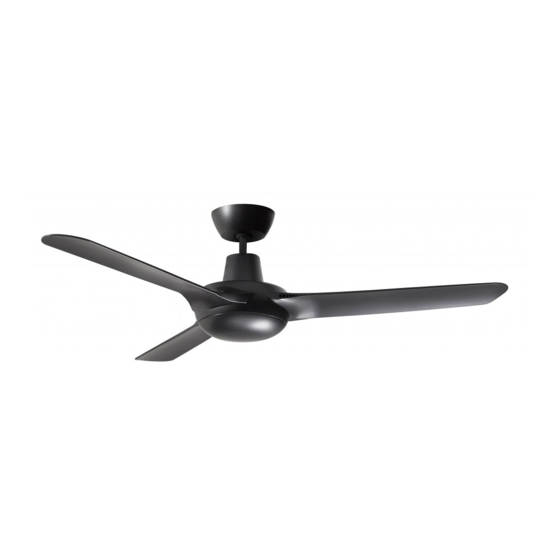

- Page 1 CRUISE SERIES Ceiling Fan Instruction Book Models: MCF133 MCF143 MCF1333 MCF1433 DESCRIPTION QUANTITY Motor assembly Instruction manual Screw kit Balancing kit Hanging bracket Wall control kit Blades...
- Page 2 ONLY install the remote controller kit that comes supplied by Martec Pty Ltd within package. DO NOT control operation of fan and light with any other remote control than what was approved by Martec Pty Ltd and supplied within this package, as this will void warranty.
- Page 3 WITHOUT LIGHT www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 3...
- Page 4 WITH LIGHT www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 4...
-
Page 5: How To Assemble
Secure the hanger bracket to ceiling beam or a suitable piece of timber inserted between the ceiling beams. Martec Pty Ltd recommends the bracket to be attached with two long screws as supplied within the package. There is a ball seat rubber cover need to be pressed into the bracket.(See Fig.1.) Place circular shockproof gasket above the hanger bracket. - Page 6 HOW TO INSTALL BLADES Step 2. The blade hole and motor screw hole must be aligned, then lock the blade screw, but do not lock it too tightly. Repeat this procedure for all blades. Make sure all these 3 blades are installed in place securely. Step 3.
- Page 7 HOW TO INSTALL THE LIGHT KIT PLATE (Version with light) As shown in the figure below, lock the light kit plate on the light kit plate connector. HOW TO INSTALL THE FACE PLATE (Version without light) Align the position as shown in the figure below. Lower the decoration cover, spin clockwise and click into place.
- Page 8 HOW TO INSTALL/REMOVE THE GLASS SHADE (Version with lights) Align the shade as shown in the figure below, and place the glass shade. Spin it clockwise. To remove turn the shade anticlockwise. Tricolour CCT (Colour changeable temperature) Please make sure the light switch is off before changing the colour temperature. Simply flick the switch on the LED plate (See Fig.5.) to select the desired colour temperature (3000K, 4000K or 5000K).
