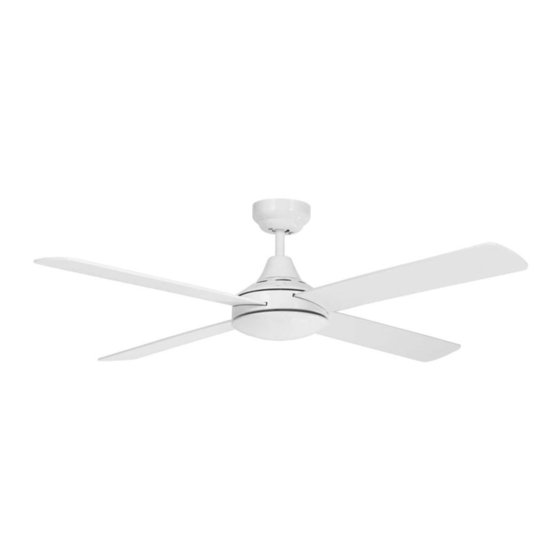

Models: FSLDC124MR/ FSLDC124WR/ FSLDC1243MR/FSLDC1243WR
DESCRIPTION
Motor assembly
Instruction manual
Balancing kit
Hanging bracket
Remote control kit
Link DC Series
Ceiling Fan Instruction Book
DC Remote for
No Light Model
Screw kit
Blades
DC Remote for
with Light Model
QUANTITY
1
1
1
1
1
1
4
Advertisement
Related Manuals for Martec FOURSEASONS Link DC Series
Summary of Contents for Martec FOURSEASONS Link DC Series
- Page 1 Link DC Series Ceiling Fan Instruction Book DC Remote for DC Remote for No Light Model with Light Model Models: FSLDC124MR/ FSLDC124WR/ FSLDC1243MR/FSLDC1243WR DESCRIPTION QUANTITY Motor assembly Instruction manual Screw kit Balancing kit Hanging bracket Remote control kit Blades...
- Page 2 ONLY install the wall controller kit that comes supplied by Martec Pty Ltd within package. WARNING Only approved Martec Pty Ltd wall controllers should be used for the operation of our fans. The use of unauthorised controllers will void the warranty. DO NOT mix blades from one fan to another. All blades must be replaced if damaged.
-
Page 3: How To Assemble
Secure the hanger bracket to ceiling beam or a suitable piece of timber inserted between the ceiling beams. Martec Pty Ltd recommends the bracket to be attached with hardware as supplied within the package. There is a ball seat rubber cover need to be pressed into the bracket.(See Fig.1.) Place circular shockproof gasket above the hanger bracket. - Page 4 HOW TO INSTALL/REMOVE THE PC SHADE (Version with lights) Align the shade as shown in the figure below, and place the PC ( Plastic) shade. Spin it clockwise. To remove turn the shade anti-clockwise HOW TO INSTALL/REMOVE THE METAL COVER (Version without lights) Align the metal cover with the central spindle extended from motor as shown in the figure below, and spin it clockwise.
- Page 5 INSTRUCTIONS AND FUNCTIONS OF TRANSMITTER LED indicator light Light ON/OFF (use to switch dim the LED light within 1 second) Speed of the fan (1 high speed – 5 low speed) Timing control of the fan Direction of the fan (reverse switch) Fan ON/OFF 12V battery should be used in Transmitter LED indicator light...
- Page 6 Wire Connections Without Light to AC Power brown blue green TO FAN WIRES MOTOR LIGHT black blue brown black to the FAN MOTOR www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 6...
-
Page 7: Wire Connections
Wire Connections With Light brown blue yellow green black brown blue yellow green to AC Power brown blue green TO FAN WIRES MOTOR LIGHT black blue brown black to the FAN LIGHT to the FAN MOTOR blue brown black yellow green blue brown black... - Page 8 Martec Pty Ltd service network. The Martec Pty Ltd service network is defined at our discretion, yet is limited by the boundary of the city in which you live. Travel outside of the city limits by the Martec Pty Ltd authorised service agent will incur commercial costs to be paid for by the purchaser at a rate calculated by the number of kilometres travelled beyond the city limits.
- Page 9 $190.00 www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au...
