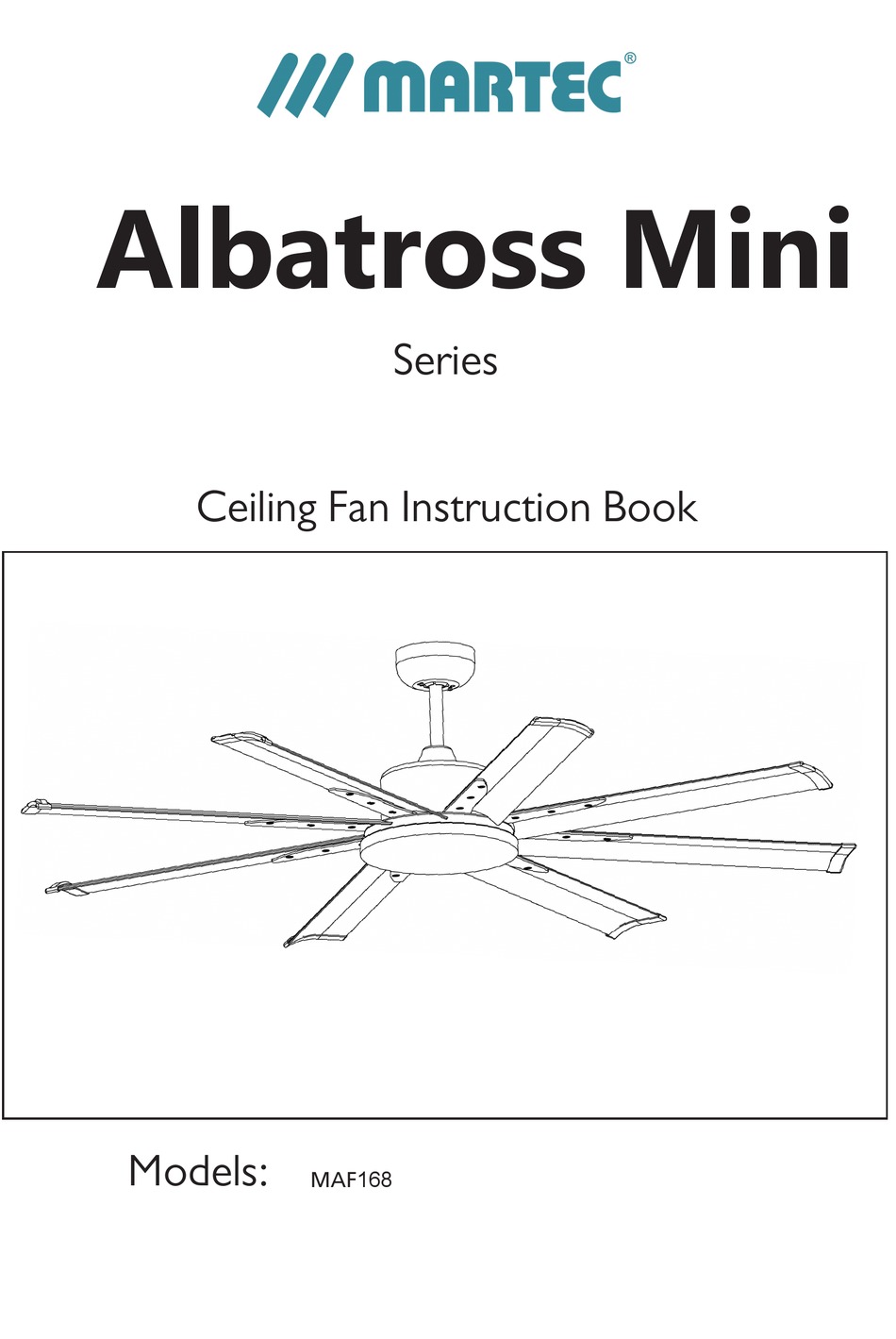

- Page 1 Albatross Mini Series Ceiling Fan Instruction Book Models: MAF168...
-
Page 2: Important Safeguards
WARNING Only approved Martec Pty Ltd wall controllers should be used for the operation of our fans. The use of unauthorised controllers will void the warranty. DO NOT mix blades from one fan to another. All blades must be replaced if damaged. -
Page 3: Parts List
PARTS LIST DESCRIPTION QUANTITY Motor assembly Instruction manual Screw kit Balancing kit Hanging bracket Remote control kit Blades With Light Page 2 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au... - Page 4 HOW TO INSTALL BLADES Attach the blade to the top of the motor with three blade screws and washers provided. Tighten them securely. Repeat this procedure for all blades. (See Fig.4.) Fig.4 Page 3 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au...
- Page 5 Page 4 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au...
- Page 6 WIRING SCHEMATIC DIAGRAM FOR RECEIVER LED indicator light Light ON/OFF (use to switch dim the LED light within 1 second) Speed of the fan (1 high speed – 5 low speed) Timing control of the fan Direction of the fan (reverse switch) Fan ON/OFF INSTRUCTIONS AND FUNCTIONS OF TRANSMITTER 12V battery should be used in Transmitter...
-
Page 7: Important Reminders
INSTALLING RECEIVER REMOTE CONTROL IMPORTANT: PAIRING BETWEEN REMOTE AND RECEIVER Turn “ON” the power supply and within 30 seconds press and hold the transmitters “FAN ON/OFF” button for 5 seconds and a “beep” will be heard this will then activate a successful pairing and all functions will work normally. - Page 8 Martec Pty Ltd service network. The Martec Pty Ltd service network is defined at our discretion, yet is limited by the boundary of the city in which you live. Travel outside of the city limits by the Martec Pty Ltd authorised service agent will incur commercial costs to be paid for by the purchaser at a rate calculated by the number of kilometres travelled beyond the city limits.
- Page 9 With the exception of the Precision Stainless Steel 316 ceiling fan, none of Martec’s Ceiling Fans are meant for outdoor use, and will either rust or encounter problems which are not covered within this warranty.
