Reolink Duo 2 PoE Operational Instruction page 7

RST
RST
11
T
RST
RST RST

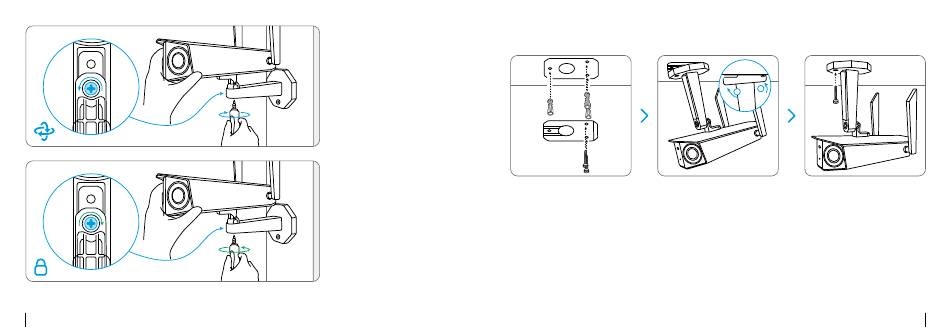

To get the best field
of view, loosen the
adjustment screw on
security mount and
turn the camera.
Stiffen the adjustment
screw to lock the
camera.
RST
RST
Mount the Camera to Ceiling
Drill holes in accordance with the mounting template, Secure the mounting plate to the wall
with the upper two screws and hang the camera on it. Then lock the camera in position
with the lower screw.
RST
RST RST
1
2 1 1
2 2
1
2
RST
12
