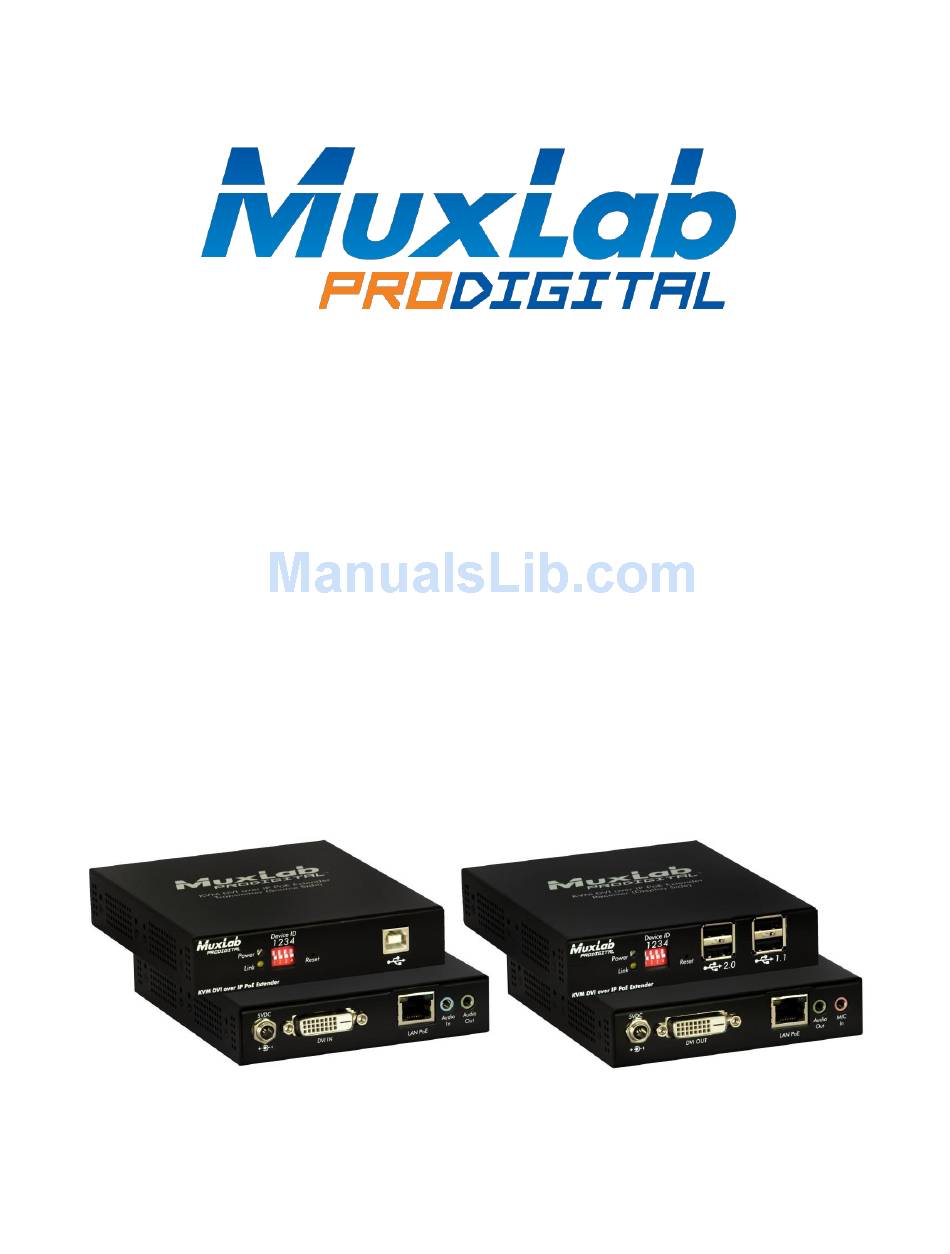

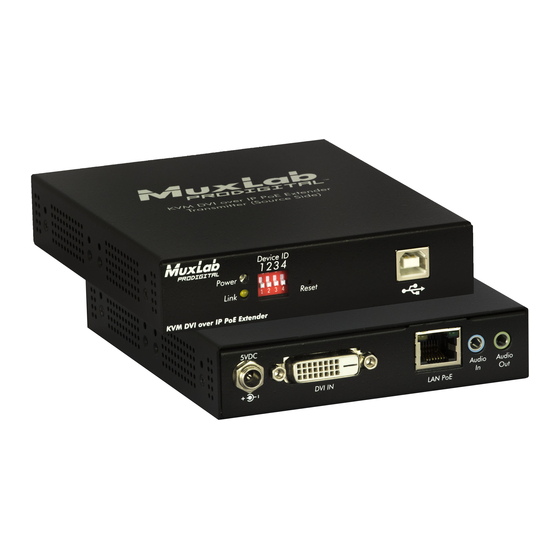

KVM DVI over IP PoE Extender - 500771
KVM DVI over IP PoE Extender Kit

Operation Manual

500771
Page 1
© MuxLab Inc. 2016
94-000846-A / SE-000846-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500771 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MuxLab 500771

Summary of Contents for MuxLab 500771

  • Page 1: Operation Manual

    KVM DVI over IP PoE Extender - 500771 KVM DVI over IP PoE Extender Kit Operation Manual 500771 Page 1 © MuxLab Inc. 2016 94-000846-A / SE-000846-A...

  • Page 2: Table Of Contents

    KVM DVI over IP PoE Extender - 500771 Table of Contents 1 Introduction ............................... 3 Key Features:............................. 3 2 Direct Switching Method ........................... 5 3 On Screen Display (OSD) Switching Method ....................6 3.1 Login to the KVM Device ......................... 7 3.2 Logout from the KVM Device ........................

  • Page 3: Introduction

    Ethernet LAN, supporting 1920x1200 and 1080p resolution @ 60Hz via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500771-TX) and Receiver (500771-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The Transmitter terminates to a computer server/workstation via a DVI & USB port, The Receiver terminates to a DVI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub.
  • Page 4 Supports audio insert & mic-out (TX), and audio extract & mic-in (RX) Please reference the 500771 Installation Guide for specifications and instructions on how to connect Transmitters to workstations and the Receiver to a DVI display, USB keyboard and USB mouse (plus two additional USB devices, if required).

  • Page 5: Direct Switching Method

    KVM DVI over IP PoE Extender - 500771 2 Direct Switching Method This method of switching from one workstation to another supports up to 16 workstations. It supports a quick and simple method of switching to different workstations. If more than 16 workstations is required, then the On Screen Display (OSD) Switching Method must be used.

  • Page 6: On Screen Display (Osd) Switching Method

    KVM DVI over IP PoE Extender - 500771 3 On Screen Display (OSD) Switching Method The OSD Switching Method does not rely on the Dip Switch setting and thus is not limited to only 16 workstations. This method supports 100’s of workstations.

  • Page 7: Login To The Kvm Device

    KVM DVI over IP PoE Extender - 500771  Connect: After selecting a workstation in the Node List, then pressing “Connect” provides control over the selected workstation (assuming it is not already under the control of another client).  Refresh: Pressing “Refresh” updates the Node List of available workstations.

  • Page 8: Logout From The Kvm Device

    KVM DVI over IP PoE Extender - 500771 3.2 Logout from the KVM Device To Logout, simple click on “Logout”, and the login screen will be displayed. You will be required to login, should you wish to take control of the KVM device and connect with available workstations.

  • Page 9: Returning

    KVM DVI over IP PoE Extender - 500771 Note: The KVM Transmitter name can be set via the web interface of the said KVM Transmitter. To do so, follow the procedure in the section “Setting the Transmitter/Receiver Name”. To actually select a workstation to control, use the mouse to click on the desired workstation from the provided “Node List”.

  • Page 10: Kvm Transmitter/Receiver Settings

    To do this, follow the steps in the “Firmware Version Information” section. Then search for the latest version of the KVM Transmitter and Receiver firmware on the MuxLab website in the “Support” page section. If a newer version exists, then proceed to download it.

  • Page 11: Changing The Osd Login Password

    KVM DVI over IP PoE Extender - 500771 4.3 Changing the OSD Login Password The default OSD Login password is “admin”, but may be changed via the KVM Receiver web interface. From within the “System” tab and then “Utilities” sub tab, scroll down to the “Console API Command”...

  • Page 12: Kvm Device Statistics

    KVM DVI over IP PoE Extender - 500771 The Login password is now set to “12345”. Record the new password in a safe place as a reference. 4.4 KVM Device Statistics The KVM Transmitter/Receiver statistics is available via the device web interface by clicking on the “System”...

  • Page 13: Network Settings

    KVM DVI over IP PoE Extender - 500771 4.5 Network Settings The KVM Transmitter and Receiver network setting can be managed by pressing the “Network” tab. There are three sub tabs for additional control, “Auto IP”, “DHCP” and “Static”. The default setting is “Auto IP”, and it is recommended that this mode be set.

  • Page 14: Setting The Kvm Transmitter/Receiver Name

    KVM DVI over IP PoE Extender - 500771 4.6 Setting the KVM Transmitter/Receiver Name The following steps illustrate how to set the name for each KVM Transmitter/Receiver. From the main web interface home page click on the “Function” Tab and scroll down to the bottom. Enter the KVM Transmitter/Receiver name in the “KVM unit name”...

  • Page 15: Selecting The Osd Hotkey Sequence

    KVM DVI over IP PoE Extender - 500771 4.7 Selecting the OSD HotKey Sequence In order to set the OSD hotkey sequence, go to the KVM Receiver web interface and press the “Function” tab and scroll down to the bottom. See the example screen below.
  • Page 16 KVM DVI over IP PoE Extender - 500771 Click on the “HotKey Stop” pull-down arrow to select the hotkey stop setting from the provided options. If the “User Defined” option is selected, then enter the value for this hotkey stop in the “Hotkey Stop Value”...

  • Page 17: Specifications

    KVM DVI over IP PoE Extender - 500771 5 Specifications Environment DVI 1.0 Devices Computers and servers with DVI monitor ports. Transmission Transparent to the user Bandwidth 300MHz Signals DVI 1.0 protocol, HDCP 1.4 Connectors One (1) DVI receptacle. One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
  • Page 18 2 years Order Information 500771 KVM DVI over IP PoE Extender Kit (UPC: 627699007716) 500771-TX KVM DVI over IP PoE Extender TX (UPC: 627699907719) 500771-RX KVM DVI over IP PoE Extender RX (UPC: 627699807712) Accessories 500920 16-Port Rackmount Transceiver Chassis...

  • Page 19: Warranty Policy

    Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.
  • Page 20 KVM DVI over IP PoE Extender - 500771 MuxLab Inc. 8495 Dalton Road Mount Royal, Quebec Canada H4T 1V5 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: videoease@muxlab.com Page 20 © MuxLab Inc. 2016...
