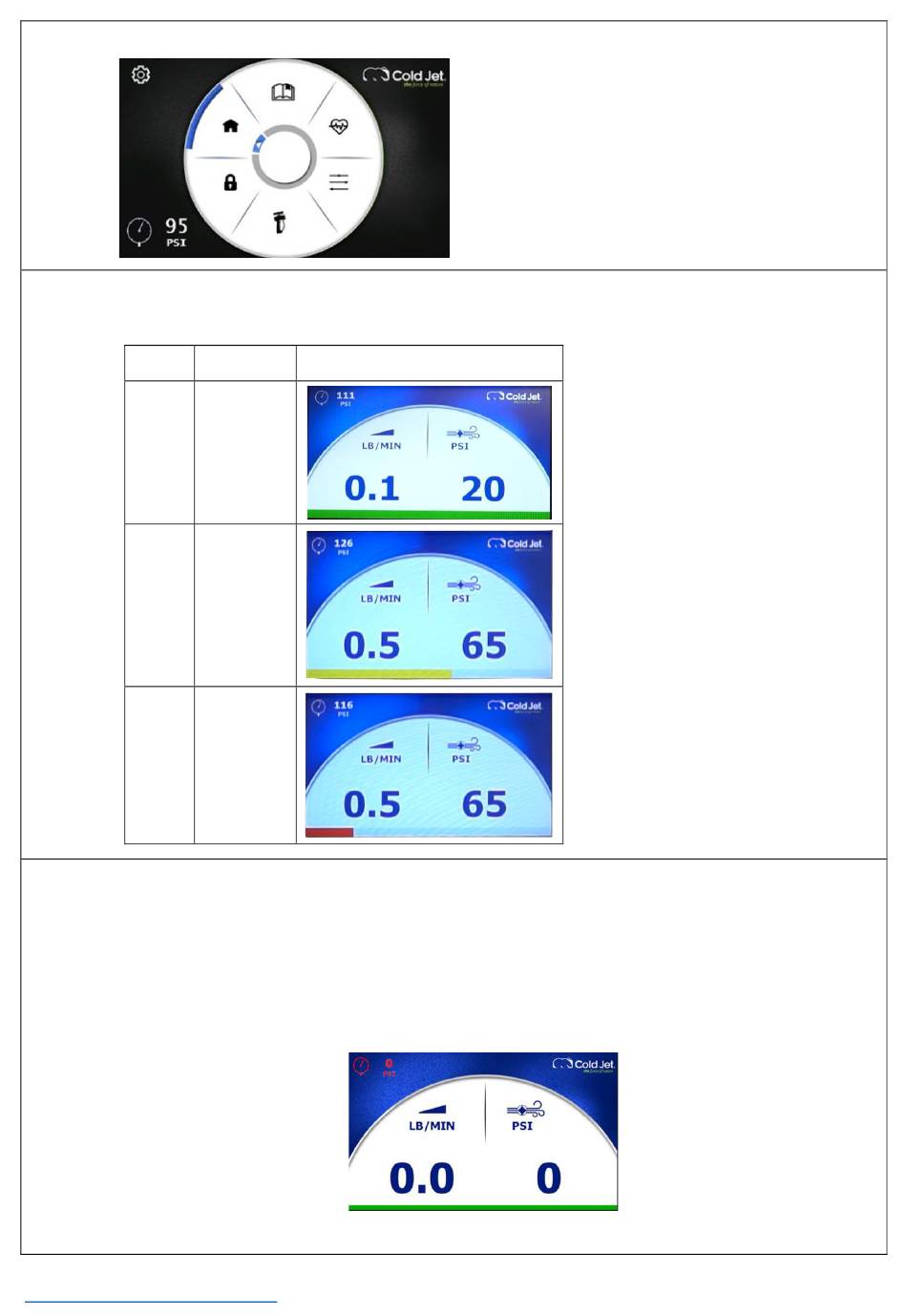

o A settings screen with a black background.
During operation, the HMI screen will have an indicator at the bottom of the screen that will
•
change colors to convey the level of dry ice in the trough.
Color
Green
Yellow
Red
During operation, the numbers on the screen will change colors to indicate normal operation or
•
a failure mode.
o White (numbers on blue background) and Blue (numbers on white background) = Normal
o Orange= Warning
o Red = Critical - Needs Attention
Click to go to Top of Document
Level
HMI Screen
Full
Half Full
Low
Example Screen Showing Red/Needs Attention Numbers
17
2023-08-29
