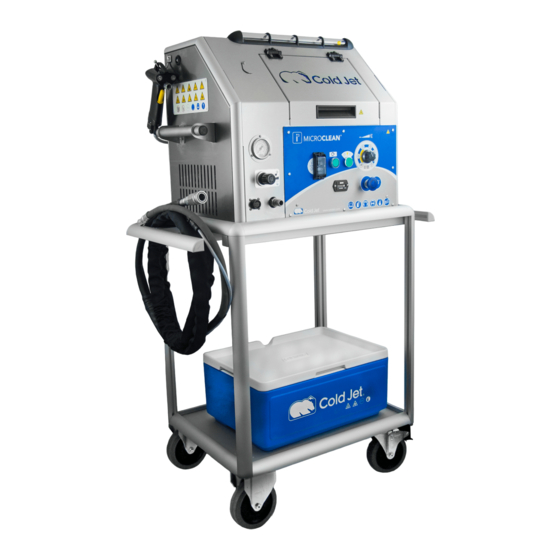

Original Instructions
OPERATOR MANUAL
1
Safety Guidelines
General Safety Requirements
Electrostatic Discharge
CO
Safety
2
4
Component Guide
Specifications
10
Unit Operation
Maintenance
Troubleshooting
18
Contacting Cold Jet
20
Appendix A
Blast Air Quality
22
Appendix B
Pellet/Nugget Shaving Kit
25
Appendix C
Residual Risks
28
Appendix D
Schematics
34
Symbol Glossary
36
Warranty
OM.MC.20160506

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3 MICROCLEAN and is the answer not in the manual?

Questions and answers

Related Manuals for Cold Jet i3 MICROCLEAN

Summary of Contents for Cold Jet i3 MICROCLEAN

  • Page 1 OPERATOR MANUAL Safety Guidelines General Safety Requirements Electrostatic Discharge Safety Component Guide Specifications Unit Operation Maintenance Troubleshooting Contacting Cold Jet Appendix A Blast Air Quality Appendix B Pellet/Nugget Shaving Kit Appendix C Residual Risks Appendix D Schematics Symbol Glossary Warranty Original Instructions OM.MC.20160506...
  • Page 2 Cold Jet and the client and remains the exclusive property of Cold Jet. If you find any problems in the documentation, please report them to us in writing. Cold Jet does not warrant that this document is error-free.
  • Page 3 EN ISO 13857:2008 EN ISO 4414:2010 EN 60204-1:2006/AC:2010 Person in the European Community authorized to compile the technical documentation: Cold Jet Europe bvba, Mr. Wim Eeckelaers, Dellestraat 55, B-3550 Heusden-Zolder, Belgium Place of Issue: Loveland, OH Name: Mike E. Rivir Position: V.P.
  • Page 4 • can be used for many general cleaning applications Cold Jet dry ice cleaning uses compressed air to accelerate frozen carbon dioxide (CO ) “dry ice” pellets to a high velocity. Dry ice pellets can be made on-site or supplied.

  • Page 5: Safety Guidelines

    SAFETY GUIDELINES...

  • Page 6: General Safety Requirements

    • Never disconnect the air supply hose without first shutting off the source air and removing the line pressure • Only Cold Jet trained service technicians are certified to work on electrical components • Do not operate equipment with electrical parts exposed, jumpered or rendered inoperable •...

  • Page 7: Electrostatic Discharge

    SAFETY GUIDELINES ELECTROSTATIC DISCHARGE Static discharge may ignite flammables. Electrostatic discharge can be hazardous to the operator and the equipment. The static charge of CO varies with the amount of dry ice and humidity present. Ground the Material Being Cleaned Always ground the material being cleaned to assure safe operation while blasting.

  • Page 8: Component Guide

    COMPONENT GUIDE...

  • Page 9: Specifications

    COMPONENT GUIDE The single hose electric i MicroClean features Cold Jet’s patented shaved dry ice technology, providing unparalleled precision and reliability. This environmentally responsible system enables you to safely clean delicate surfaces and complex cavities and crevices that other machines can’t reach—without surface abrasion, disassembly or harmful secondary waste.
  • Page 10 MICROCLEAN RIGHT SIDE Applicator Hook Blast Pressure Gauge Safety Guard Lock Blast Pressure Regulator Chute Access Port Control Cable Connect Carrying Handle Blast Hose Connect (Two Person Lift) Ventilation...
  • Page 11 MICROCLEAN LEFT SIDE Ice Block Level Indicator Bleed Valve Data Plate Air Supply Hose Connect Fill Lid...

  • Page 12: Control Panel

    CONTROL PANEL Main Power Circuit Breaker Applicator Light Switch Power On / Reset Feed Rate Control Hour Meter Trigger Disable...
  • Page 13 BLAST APPLICATOR Note: The blast applicator pictured includes an optional light. LED Lights Hanger Nozzle Connector Mode Select Switch Trigger Air Only Air + Ice...

  • Page 14: Unit Operation

    UNIT OPERATION...
  • Page 15 UNIT OPERATION START UP Read all safety instructions before operation and follow them closely (p. 2-3) Always wear proper personal protective equipment including eye protection to guard against flying objects, ear protection to prevent hearing loss and gloves to protect hands from exposure to cryogenic temperatures and sharp blade surfaces.
  • Page 16 UNIT OPERATION 11. Pull the blue trigger disable button out and press green power on/reset button . Hold this button down until the green lights turns on. 12. Move the feed rate control to maximum. 13. Move the applicator mode select switch to the air + dry ice position (II). 14.
  • Page 17 UNIT OPERATION RE-LOADING DRY ICE Always wear gloves to protect hands from exposure to cryogenic temperatures and sharp blade surfaces. 1. Move the applicator mode select switch to the OFF (O) position. 2. Move the pusher plate back to the end of the trough away, from shaver wheel. 3.

  • Page 18: Maintenance

    MAINTENANCE...
  • Page 19 MAINTENANCE Before removing the panel on the chain drive/feeder side of the machine, unlock the safety guard lock. DAILY DAILY WEEKLY WEEKLY MONTHLY MONTHLY BIANNUAL BIANNUAL...

  • Page 20: Troubleshooting

    TROUBLESHOOTING PROBLEM PROBLEM CHECK THIS CHECK THIS SOLUTION SOLUTION Machine will Machine will NOT start NOT start Machine Machine blasts air but blasts air but not dry ice not dry ice Machine will Machine will NOT blast NOT blast...
  • Page 21 TROUBLESHOOTING PROBLEM PROBLEM CHECK THIS CHECK THIS SOLUTION SOLUTION Machine will Machine will NOT blast NOT blast (cont’d) (cont’d) STILL will STILL will not blast not blast If the problem is not resolved, please contact our Customer Support Hotline at: +1-800-777-9101 (+1-513-576-8981) UNCLOG THE DRY ICE CHUTE Always wear proper personal protective equipment including eye protection to...
  • Page 22 CONTACTING COLD JET For technical support, accessories and spare parts, contact the appropriate Cold Jet office. North America USA-Cold Jet,LLC 24-hour Customer Support and Technical Service (World Headquarters) Inside the US: +1 800.777.9101 Outside the US: +1 513.576.8981 FAX: + 1 513.831.3672 Canada-Cold Jet Canada Phone: +1 800.337.9423 Ext.
  • Page 23 APPENDIX...
  • Page 24 MicroClean: • For distances less than 50 ft (15 m) between the air compressor and the i MicroClean, Cold Jet recommends a flexible 0.5 in (13 mm) air hose, preferably the hose supplied with the i MicroClean. • For distances greater than 50 ft (15 m) between the air compressor and the...
  • Page 25 APPENDIX A: BLAST AIR QUALITY PORTABLE AIR Portable air compressors are mainly used for shop tools, not dry ice blasting units; therefore, they may not be equipped to cool or remove air moisture. An after cooler and moisture trap/filter MUST be used. An after cooler with a 15 °F (-9 °C) approach is required to reduce the discharge air temperature 180 °F (82 °C) to within 15 °F (-9 °C) of ambient air temperature.
  • Page 26 APPENDIX B: PELLET & NUGGET SHAVING Experience Cold Jet’s patented shaved MicroParticle technology. The i MicroClean with optional DX upgrade can now shave both pellets and nuggets. MicroParticles allow you to clean and prepare surfaces with more precision, more delicacy, less air and less noise than traditional dry ice pellet blasters.
  • Page 27 APPENDIX B: PELLET & NUGGET SHAVING SPECIFICATIONS All specifications remain the same with the pellet & nugget shaving option, except for those mentioned below. Dry Ice Capacity Dry Ice Capacity Pellets/Nuggets: 9 lbs/4 kg Pellets/Nuggets: 9 lbs/4 kg 0-0.6 lbs/min (0-0.3 kg/min) 0-0.6 lbs/min (0-0.3 kg/min) Variable Feed Rate Variable Feed Rate...
  • Page 28 APPENDIX B: PELLET & NUGGET SHAVING PUSHER PLATE A unique pusher plate provides more surface area to ensure consistent pellet and nugget media feeding. • The pusher plate is designed to work optimally with pellets and nuggets. If using blocks, a 6x6 in. (150x150 mm) block is newly designed pusher plate for recommended.
  • Page 29 APPENDIX C: RESIDUAL RISKS When safety instructions are followed, most of the risks associated with the MicroClean are mitigated. However, the operator should be aware that a few residual risks remain. 1. Carbon Dioxide is an asphyxiant gas, which displaces the oxygen in the air. When the carbon dioxide levels are not monitored, there is a risk of exposure to high concentrations of CO .
  • Page 30 APPENDIX D: SCHEMATICS IN THIS SECTION 110 V. Schematic and BOM ....... . . 27 230 V.

  • Page 38: Symbol Glossary

    SYMBOL GLOSSARY The i MicroClean uses ISO safety symbols. The symbols come in three categories: 1. A yellow warning triangle/black graphical symbol indicates what the hazard is. 2. A blue mandatory action circle/white graphical symbol indicates an action to take to avoid the hazard. 3.
  • Page 39 SYMBOL GLOSSARY WARNING SYMBOL MANDATORY ACTION Electrical Shock Consult Operators Manual WARNING SYMBOL MANDATORY ACTION General Danger Disconnect Power WARNING SYMBOL MANDATORY ACTION Hand Crush General Mandatory WARNING SYMBOL MANDATORY ACTION Debris Lock Out in De-Energized State WARNING SYMBOL MANDATORY ACTION Static Shock Maintain Safe Pressure WARNING SYMBOL...

  • Page 40: Warranty Information

    WARRANTY INFORMATION Cold Jet® (“CJ”) warrants its products (“Equipment”) provided under this Agreement to be free from defects in materials and workmanship for a period of 12 months (90 days on used equipment), under normal use, maintenance and service as stipulated in the Operator’s Manual, Commissioning, and Operator Training.
  • Page 41 Central Compressed Air System 20 Pusher Plate 24 Chute Access Port 6 Safety 3 Compressed Air Nozzle 24 Re-loading Dry Ice 13 Contacting Cold Jet 18 Residual Risks 25 Control Cable Connect 6 Safety Guard Lock 6 Daily Maintenance 15 Schematics 26...
  • Page 43 TRAINING VIDEO...
  • Page 44 www.coldjet.com Americas. Europe. Asia.
