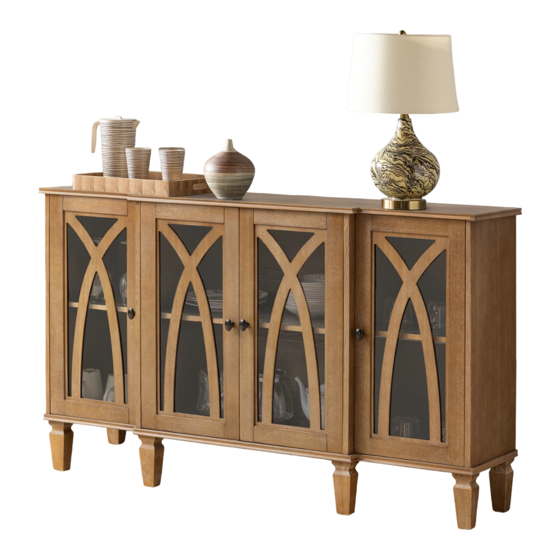

- Page 1 HULALA ITEM NO.SBHM0768 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/24...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONENS 03/24... -
Page 4: Parts List
PARTS LIST 04/24... -
Page 5: Hardware List
HARDWARE LIST-1 3.5*14mm*7# 3*14mm*6# ∅ ∅ HARDWARE SPARE LIST 3*14mm*6# 3.5*14mm*7# ∅ ∅ 05/24... -
Page 6: Tool List
HARDWARE LIST-2 1/4"*1-1/4" 5/32"*3/4" ∅ ∅ 3.5*35mm*7# 8*30mm ∅ ∅ TOOL LIST 06/24... - Page 7 ASSEMBLY INSTRUCTIONS STEP-1 Use screw #14 to attach clump weight (O) to the reverse side of bottom panel (B)，the position is behind the bottom panel (B) as picture show,tighten screw #14 with screwdriver #16. Attention: The word "back"in the picture refers to the direction of bottom panel(B) with backpanel slot.
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2 Use bolt #5 to attach leg (N) to the corresponding hole of bottom panel (B)，tighten bolt #5 with allen key #15. 1/4"*1-1/4" ∅ 08/24...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3 Insert side panel (C)&(D) into the corresponding hole of bottom panel (B) and then use allen key #15 to tighten it as picture show. 09/24...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-4 Insert middle vertical panel (E)&(F) into the corresponding hole of bottom panel (B) and then use allen key #15 to tighten it as picture show. 10/24...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-5 Use screw #2 to attach magnetic catch #3 to the corresponding hole of top panel (A) as picture show,tighten screw #2 with screwdriver #16.Pay attention to the model distinction of catch #3 & 3*14mm*6# ∅ 11/24...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-6 Insert top panel (A) into the corresponding hole of preassemble step 4，make sure all holes aligned and tighten it with allen key#15. & & 12/24...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-7 Open the panel (G), insert panel (G) into the groove of preassemble step 6，make sure all holes aligned and use screw #2 to attach it ，tighten screw #2 with screwdriver #16. 3*14mm*6# ∅ 13/24...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-8 Attention: Before the next step, adjust the feet of the locker to keep it level. 14/24...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-9 Insert shelf holder #6 into the corresponding hole of panel (C)&(E)&(D)&(F), ， make sure shelf holders #6 are level and then attache panel (H)&(I) to it. Shelf holder can be adjusted up or down 15/24...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-10 ， Use screw #1 to attach hinge #13 to doors (J)&(K)&(L)&(M) make sure all holes aligned and tighten screw #1 with screwdriver #16. & & & & 3.5*14mm*7# ∅ 16/24...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-11 ， Use screw #7 to attach handle #8 to doors (J)&(K)&(L)&(M) make sure all holes aligned and tighten screw #7 with screwdriver #16. & & & & & 5/32"*3/4" ∅ 17/24...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-12 Aligne the corresponding hole of preassembled doors (J)&(M) with ， the corresponding hole of side panel (C)&(D) and then use screw #1 to attach hinge #13 to side panel (C)&(D),tighten screw #1 with screwdriver #16. & & &...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-13 Aligne the corresponding hole of preassembled doors (K)&(L) with ， the corresponding hole of middle vertical panel (E)&(F) and then use screw #1 to attach hinge #13 to middle vertical panel (E)&(F),tighten screw #1 with screwdriver #16. &...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-14 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 20/24...
- Page 21 ASSEMBLY INSTRUCTIONS 3.5*14mm*7# ∅ STEP-15 Use screw #1 to attach plastic bracket #9 to back panel (G),make sure all holes aligned and tighten screw #1 with screwdriver #16. 21/24...
- Page 22 ASSEMBLY INSTRUCTIONS 3.5*35mm*7# ∅ STEP-16 1. Mark the position on the wall, that corresponds to the location of bracket on the back panel G; Drill and insert the expandable screw by hammer. 2. Assemble the bracket to the wall. Align the hole in the bracket with the expandable screw ,use screw...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-17 3. Let the plastic belt pass through bracket and pull tightly. 23/24...
-
Page 24: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
