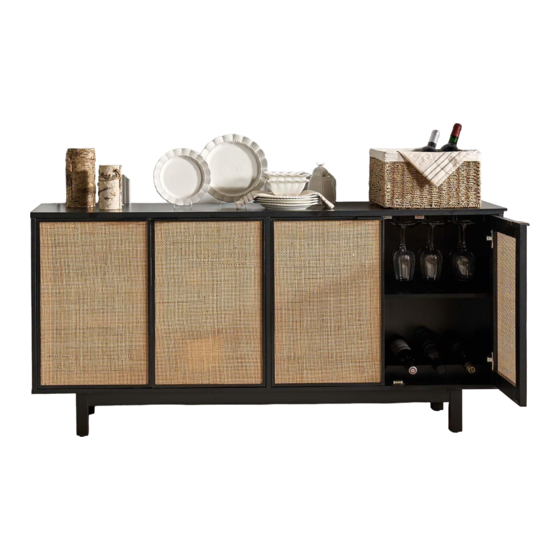

- Page 1 HULALA ITEM NO.SBLS0867 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/32...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soap with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONEN 03/32... -
Page 4: Parts List
PARTS LIST 04/32... -
Page 5: Hardware List
HARDWARE LIST M6*10 M8*50 M6*20 M3*14 TOOL LIST HARDWARE SPARE LIST M8*50 M3*14 05/32... - Page 6 HARDWARE SPARE LIST 06/32...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-1 Prepare for part A. Align the holes in part A, insert wooden dowel #10 by hand, tighten with screwdriver tighten #9。 Use bolt #7 to attach #7 to top panel (A) ， tighten Magnetic device bolts with screwdriver #18. 07/32...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2 Connect the part A with part C&D&E. align the hole in the part C&D&E ,insert the bolt #9 and wooden dowel #10 in part A into part C&D&E. insert cam bolt #15 into the corresponding hole of side panel C&D&E,and tighten the nuts #15 with a screwdriver #18.
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3 Use screw #8 to attach the wine glass holder #14 to top panel (A)，tighten screws #8 with screwdriver Ø1/4x1" 09/32...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-4 Connect the part A with part H. align the hole in the part H,insert the bolt #9 in part A into part H. insert cam bolt #15 into the corresponding hole of side panel H ,and tighten the nuts #15 with a screwdriver #18.
- Page 11 ASSEMBLY INSTRUCTIONS Manually insert #10 wooden dowels (C&D&E), slide in the part F into the groove in part D,H and H,E and E,H and H,C . make sure they are also in groove in part A. 11/32...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-6 Align the holes in part (B) tighten with screwdriver tighten #9. picture shows.Use bolt #7 to attach Magnetic device #7 to bottom panel (B) ， tighten bolts with screwdriver #18. Ø1/4x1" 12/32...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-7 Connect the part B the pre-assembled unit in step 5. Then align the holes in part B,Insert screw #12 and push it down so that it connects to parts C&D&E&H. Next,and tighten the screw #12 with an Allen key #20. Ø1/4x1"...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-8 1.Insert gasket #16 and #17 in sequence into screw #3, install leg (N) on of bottom panel (B), ensure the corresponding holes are aligned and fix with screw #3, then tighten the screw with an Allen key #19. #17 #16 Ø8x30mm Ø8x30mm...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-9 insert cam bolt #15 into the corresponding hole of side panel H ,and tighten the nuts #15 with a screwdriver #18. After installation, cover the screw holes with #11. Make sure the groove is in same side as picture show. Ø8x30mm Ø1/4x1"...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-10 Insert hardware into part (F&G) as shown, screw in screw #5 using screwdriver and tighten fully. 16/32...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-11 Attention: After installation, adjust the adjustable leveler to keep the cabinet balanced . 17/32...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-12 Align the holes of the part L with the holes of the part M , insert wooden dowel #10 by hand and insert the screw #12, and tighten the screw #12 with the allen key Ø8x30mm Ø1/4x1" 18/32...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-13 1.Place the wine glass holder in the cabinet. 19/32...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-14 1.Insert shelf holder #4 into the corresponding hole of panel (C)&(D)&(E) and then attach panel (I) to it. Shelf holder can be adjusted up or down 20/32...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-15 1.Use screw #2 to attach hinge #2 to door (K&J) , tighten screw #2 with screwdriver #18. 21/32...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-16 Use bolt #8 to attach handle #1 to door panel (K&J)，tighten bolts #8 with screwdriver Use bolt #7 to attach Magnetic iron sheet #7 to door panel (J&K)，tighten bolts #7 with screwdriver Ø8x30mm Ø8x30mm 22/32...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-17 Use screw #2 to attach left door (J) and right door (K) to pre-assemble unit at step 16 ,tighten screw #2 with screwdriver D&C J&K D&C J&K 23/32...
- Page 24 ASSEMBLY INSTRUCTIONS STEP-18 Use screw #2 to attach middle door (J) pre-assemble unit at step 17 ,tighten screw #2 with screwdriver 24/32...
- Page 25 ASSEMBLY INSTRUCTIONS STEP-19 Use screw #2 to attach middle door (K) pre-assemble unit at step 18 ,tighten screw #2 with screwdriver 25/32...
- Page 26 ASSEMBLY INSTRUCTIONS STEP-20 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 26/32...
- Page 27 ASSEMBLY INSTRUCTIONS STEP-21 1.Short press: Cycle switch white light, warm light, neutral light. 2.Long press: When the light is on, press the button to adjust the brightness without releasing it. Release the button to lock the brightness. Key: 1.The initial state is off. 2.Press the first button to enter the steady state.
- Page 28 ASSEMBLY INSTRUCTIONS STEP-22 After adjusting the induction lamp #6 to your favorite light source, as shown in the figure,remove the back protective layer and attach the induction lamp #6 to the panel(A). USB charging port 28/32...
- Page 29 ASSEMBLY INSTRUCTIONS STEP-23 Use nylon packaging #13 Inside screw ⑤ to attach bracket ① to the corresponding hole of top panel(A)，tighten screw with screwdriver #18. ⑤ ⑤ ⑤ #⑤ Ø1/4x1" Ø1/4x1" 29/32...
- Page 30 ASSEMBLY INSTRUCTIONS ② ③ ① STEP-24 1.Mark the position on the wall, that corresponds to the location of bracket ① on the back of top panel A; Drill and insert the expandable screw ② by hammer. 2.Assemble the bracket ① to the wall. Align the hole in the bracket ① with the expandable screw ②...
- Page 31 ASSEMBLY INSTRUCTIONS ④ STEP-25 ④ ① 3.Let the plastic belt pass through bracket and pull tightly. ④ ① ④ 31/32...
-
Page 32: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
