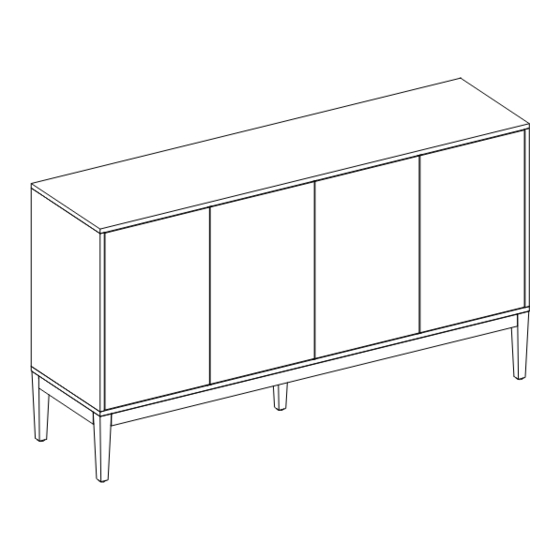

ITEM NO.SBSD0787
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/26

Advertisement

loading
Need help?

Need help?

Do you have a question about the SBSD0787 and is the answer not in the manual?

Questions and answers

Summary of Contents for HULALA HOME SBSD0787

  • Page 1 HULALA ITEM NO.SBSD0787 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/26...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
  • Page 3: Explosive View

    EXPLOSIVE VIEW 2PEOPLE 03/26...
  • Page 4: Parts List

    PARTS LIST 04/26...
  • Page 5: Hardware List

    HARDWARE LIST ∅ ∅ ∅ M3.5*14 M7*50 6*35mm 8*30mm M4*35 15*11mm ∅ M6*50 M6*40 TOOL LIST HARDWARE SPARE LIST ∅ M3.5*14 M7*50 6*35mm M4*35 M6*50 M6*40 05/26...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP-1 1.Insert wooden dowel #4 into the corresponding hole of panel (A),and then screw bolt#3 into the corresponding hole of panel (A) ,tighten bolt#3 with screwdriver#18. ∅ ∅ 6*35mm 8*30mm 06/26...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP-2 1.Use screw#1 to attach part#13 to the corresponding hole of top panel(A),tighten screw#1 with screwdriver#18.And then slide the rebounder#13 into the rebounder base as picture show. The rear protrusion of the rebound member should face in the direction of the back panel.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-3 E&F E&F E&F E&F & & & & & & & & 1.Insert panel(C)&(D)&(E)&(F) into the corresponding hole of top panel(A) and then insert cam bolt #5 into the corresponding hole of panel(C)&(D)&(E)&(F),tighten cam bolt#5 with screwdrive#18,finally stick paster to it for look nice.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-4 Carefully align and slide panel (G) into the groove along rear edge of pre-assemble unit at step 3,slide the panel ( G) into the bottom. 09/26...
  • Page 10 ASSEMBLY INSTRUCTIONS Insert wooden dowel #4 into the corresponding hole of panel , (C)&(D)&(E)&(F) and then use bolt #2 to attach panel(B) to the preassemble unit step 4,tighten bolt #2 with allen key#19. ∅ 8*30mm M7*50 10/26...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-6 (L) to part(K) Use bolt #8 to attach leg ,tighten bolt #8 with allen key #19,and then use bolt #7 to attach leg(M) to part(K),make sure all holes aligned and tighten bolt #7 with allen key #19. M6*50 M6*40 11/26...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-7 Use bolt #7 to attach the preassemble step 6 to the corresponding hole of bottom panel (B),make sure all holes aligned and tighten bolt #7 with allen key #19. #7x14 M6*50 12/26...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-8 Attention: After installation, adjust the adjustable leveler to keep the cabinet balanced . Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment. Attention: Before the next step, adjust the feet of the locker to keep it level.
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-09 #9 to corresponding panel as picture Use screw #1 to attach part show , tighten screw #1 with screwdriver #18. #1x24 #9x24 M3.5*14 14/26...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP-10 Insert shelf holder #17 into the corresponding hole of panel as picture show,and then attach panel (H) to it. Shelf holder can be adjusted up or down 15/26...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-11 Use screw #1 to attach hinge #14 to the corresponding hole of door(I)&(J),make sure all holes aligned and tighten screw#1 with screwdriver#18. Attention: Pay attention to the model of ! hinge M3.5*14 16/26...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-12 Use screw #1 to attach part #13 to the corresponding hole of , door (I)&(J) as picture show tighten screw#1 with screwdriver#18. #13 x M3.5*14 17/26...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP-13 Use screw #1 to attach hinge #14 to the corresponding hole of ,make sure all holes aligned and panel(C)&(F) as picture show tighten screw#1 with screwdriver#18. C&F I&J C&F M3.5*14 18/26...
  • Page 19 ASSEMBLY INSTRUCTIONS STEP-14 Use screw #1 to attach hinge #15 to the corresponding hole of ,make sure all holes aligned and door(I)&(J) as picture show tighten screw#1 with screwdriver#18. Attention: Pay attention to the model of ! hinge M3.5*14 19/26...
  • Page 20 ASSEMBLY INSTRUCTIONS STEP-15 Use screw #1 to attach part #13 to the corresponding hole of , door (I)&(J) as picture show tighten screw#1 with screwdriver#18. #1 x #13 x M3.5*14 20/26...
  • Page 21 ASSEMBLY INSTRUCTIONS STEP-16 Use screw #1 to attach hinge #15 to the corresponding hole of ,make sure all holes aligned and panel(E) as picture show tighten screw#1 with screwdriver#18. M3.5*14 21/26...
  • Page 22 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method...
  • Page 23 ASSEMBLY INSTRUCTIONS STEP-17 Use screw #1 to attach part #12 to side panel (C)&(F),make sure all aligned and tighten screw#1 with screwdriver#18 holes M3.5*14 23/26...
  • Page 24 ASSEMBLY INSTRUCTIONS 4*35mm STEP-18: 1. Mark the position on the wall, that corresponds to the location of bracket #12 on the side panel (C)&(F); Drill and insert the expandable screw #16 by hammer. 2. Assemble the bracket #12 to the wall. Align the hole in the bracket #12with the expandable screw #16, use screw #6 to attach it tighten screw #6 with screwdriver #18...
  • Page 25 ASSEMBLY INSTRUCTIONS STEP-19 3. Let the plastic belt #11 pass through bracket #12 and pull tightly. If you encounter difficulties during the installation process, please watch the installation video! 25/26...
  • Page 26: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
