4
Technical Specifications
4.1.9
Weight and Dimensions

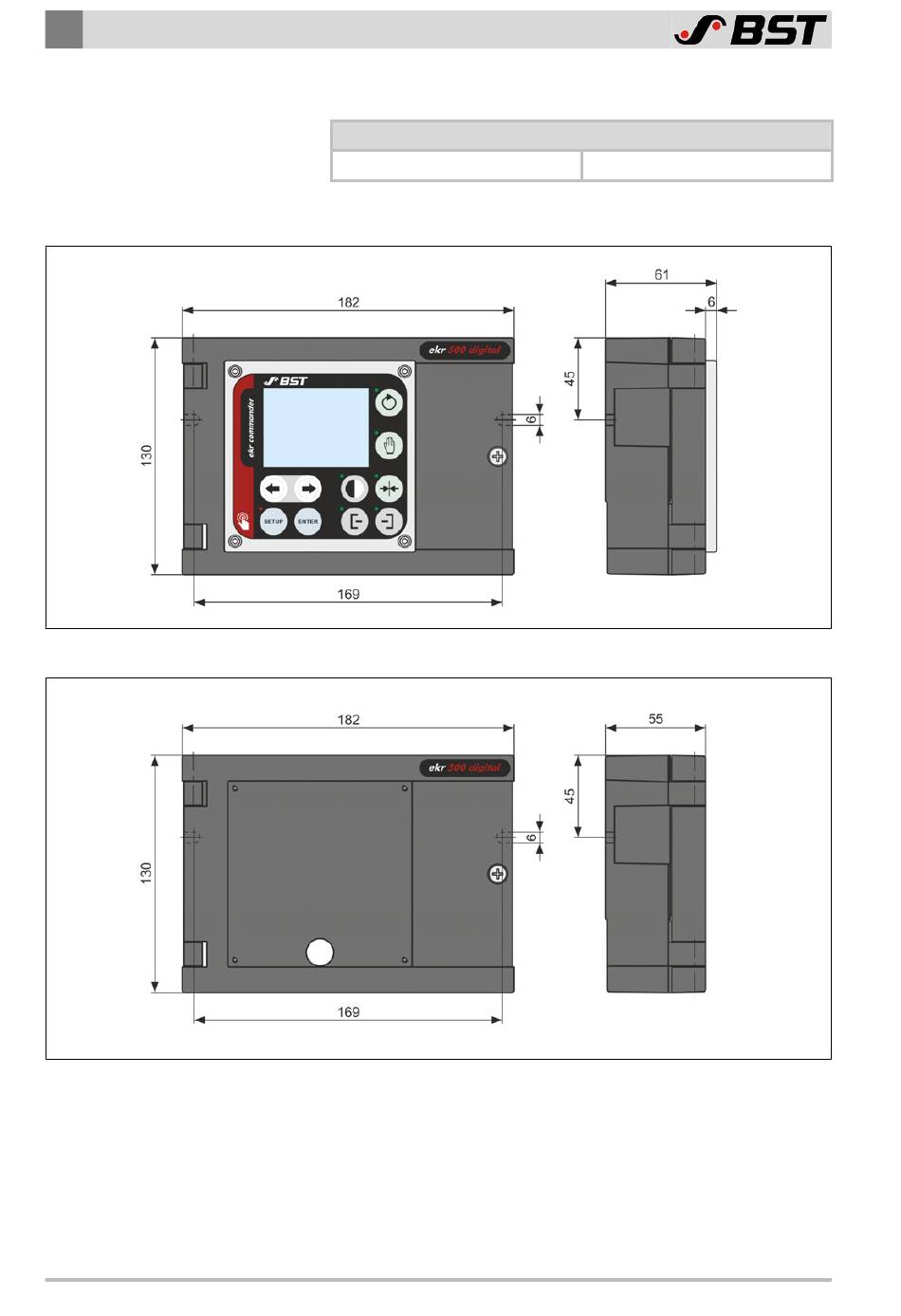

Fig. 11: Dimensions of the controller with ekr commander control panel fitted
Fig. 12: Dimensions of the controller without ekr commander control panel
32/162
ekr 500 digital Unit Touch – Installation and Commissioning Manual
Controller without control panel
Weight
Dimensions (details in mm)
Approx. 1.18 kg
