Summary of Contents for RTA Products TECHNI MOBILI RTA-4833D

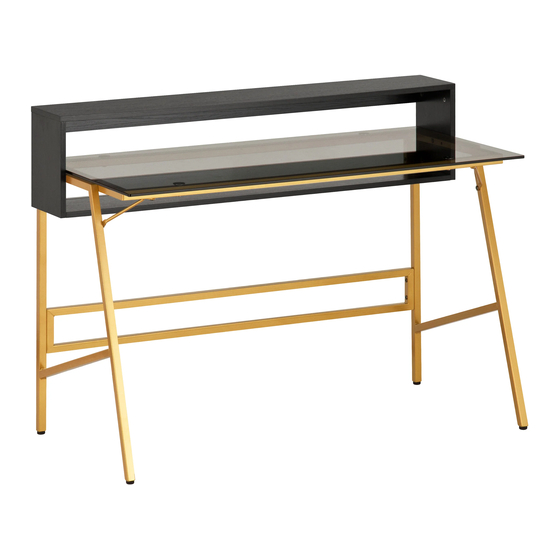

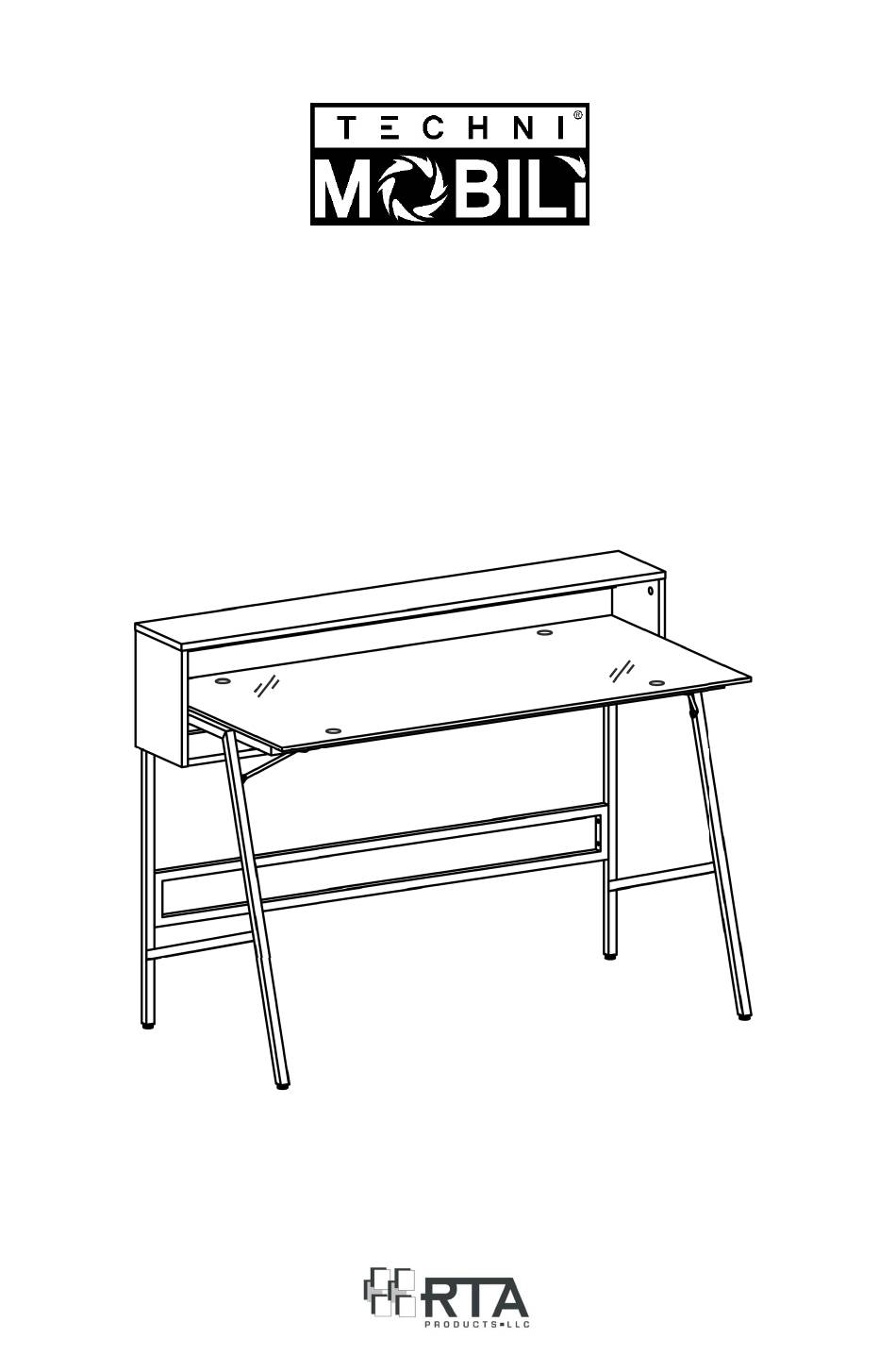

- Page 1 MODEL RTA-4833D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.072021-0...
- Page 2 RTA-4833D • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-4833D MAIN PARTS LIST Right structure Left structure Main structure Upper back structure Upper back structure Lower back structure Upper shelf panel Left panel Left panel Right panel Right panel Lower shelf panel Upper back panel Left support Right support Right support Main glass panel Glide studs... - Page 4 RTA-4833D MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM M6x40 (bolt) M6x15 M6x30 M6x50 ST5x45 Allen Wrench Screwdriver...
- Page 5 RTA-4833D ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step;...
- Page 6 RTA-4833D BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until hardware listed in the all pieces are assembly instructions.
-
Page 7: Assembly Steps
RTA-4833D ASSEMBLY STEPS STEP 1 Insert the glide studs 14 into the bottom threaded holes of the right and left structures 1 and 2. Hardware: STEP 2 With the help of another person, and using screws C, assemble between the structures 1 and 2: Hardware: •... - Page 8 RTA-4833D STEP 3 • Assemble the left support 12 to the structures 1 and 3 with screws B. • Assemble the right support 13 to the structures 2 and 3 with screws B. Hardware: • Please note that the supports are not interchangeable. M6x15 RIGHT LEFT...
- Page 9 RTA-4833D STEP 6 With the help of another person, place the frame on the floor laying down on its back, and assemble the Right panel 7 to the left structure 2 and Hardware: the Upper back structure 4 with screws D. The screws go from inside through the structure and into the panel.
- Page 10 RTA-4833D STEP 8 Attach the Lower shelf panel 10 to the 2 bottom bolts on the Right panel 7 making sure the cam locks face towards the BOTTOM and the 2 small Hardware: holes on the long profile align with the holes on the frame, as those holes are intended for the screws on step 10.
- Page 11 P.10 RTA-4833D P.10 STEP 10 • With the help of another person, bring the unit upright and place the Main glass panel 11 over the Main structure 3 making sure that the Hardware: side with the studs closer to the edge go towards the back. •...
- Page 12 P.11 RTA-4833D P.11 STEP 11 With the help of another person, join the Upper shelf panel 8 to the panels 6, 7 and 9 with bolts A as shown and as explained in page 4. Hardware: M6x40 Cam locks (Bolt) alignment STEP 12 Secure the Lower shelf panel 10 to the Upper back structure 4 with...
- Page 13 P.12 RTA-4833D P.12 ALL DONE! Give yourself a nice pat on the back. You did a great job!
- Page 14 P.13 RTA-4833D P.13 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 44 Lbs. 110 Lbs. (20.00 Kg) (50.00 Kg) 44 Lbs. (20.00 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions. •...
- Page 15 RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 16 P.15 RTA-4833D P.15 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
