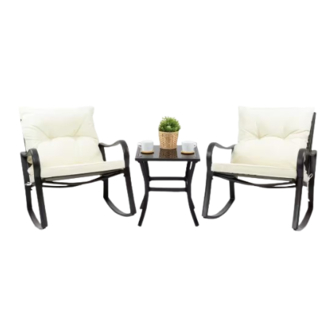

Outdoor 3pcs Rocking
Chair Set
Assembly Manual
Kozyard LLC Products
www.kozyard.com
Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
©
Version:20231006
Assembly Instructions
•
Prior to assembly, ensure that you lay out and identify all
the parts listed in the parts list.
•
Tighten all nuts and bolts securely. Hand-tighten all bolts
before use. Avoid using power tools or applying excessive
force during assembly and bolt tightening.
•
If you encounter any difficulties during assembly or if any
part is missing or damaged, please don't hesitate to
contact our customer service team via email at
info@kozyard.com or by calling our toll-free number at
866-355-0018.
Care and warranty
•
The weight capacity of this chair is 250 lbs.
•
Clean the frame components and fabric with a mild soap
solution, then rinse thoroughly. Avoid using bleach, acid,
or any other solvents on either the fabric or frame compo-
nents.
•
For a comprehensive warranty policy, please visit
www.kozyard.com. Be aware that warranty terms can
change without prior notification.
•
For the best performance and safety of your chair, inspect
and tighten all bolts and fasteners regularly
Advertisement
Related Manuals for Kozyard KZF606
Summary of Contents for Kozyard KZF606
- Page 1 For a comprehensive warranty policy, please visit www.kozyard.com. Be aware that warranty terms can Kozyard LLC Products change without prior notification. www.kozyard.com Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. © • For the best performance and safety of your chair, inspect Version:20231006...
- Page 2 Part list Chair Part Description Part Description Screw Left Leg driver Seat Right Cushion Back Seat Cushion Back M6*16 Screw M6*30 Screw Washer...
- Page 3 Attach the Left Leg (Part A) and Right Leg (Part B) to Attach the Left Leg (Part A) and Right Leg (Part B) to the Seat (Part C) using Screws (G), Washers (H), and the Seat (Part C) using Screws (F), Washer (H), and Cap Caps (E) as illustrated in the diagram.
- Page 4 Assemble the Back (Part D) with Legs (Parts A and B) Assemble the Back (Part D) with Legs (Parts A and B) using Screws (G), Washers (H), and Caps (E) as illustrat- using Screws (F), Washers (H), and Cap (E) as shown in ed in the diagram.
- Page 5 Part list Table Position the Back Cushion (Part K) and Seat Cushion Part Description (Part J) on the chair. Glass Connector M6*16 Screw Tighten and check all screws before using on level ground. Repeat for other rocking chair. M6*22 Screw Washer...
- Page 6 Assemble Leg (Part D1) with Top (Part A1) using Connect Connector (Part C1) with Leg (Part D1) using Screw (F1), Washer (H), and Cap (E). Screw (G1), Washer (H), and Cap (E) Don’t fully tighten all screws until Final step. Reminder: All parts must be placed on carpet during assembly.
- Page 7 Place Glass (Part B1) on top. Ensure that all screws are securely tightened and inspect them before use on level ground. 866-355-0018 Kozyard LLC © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
