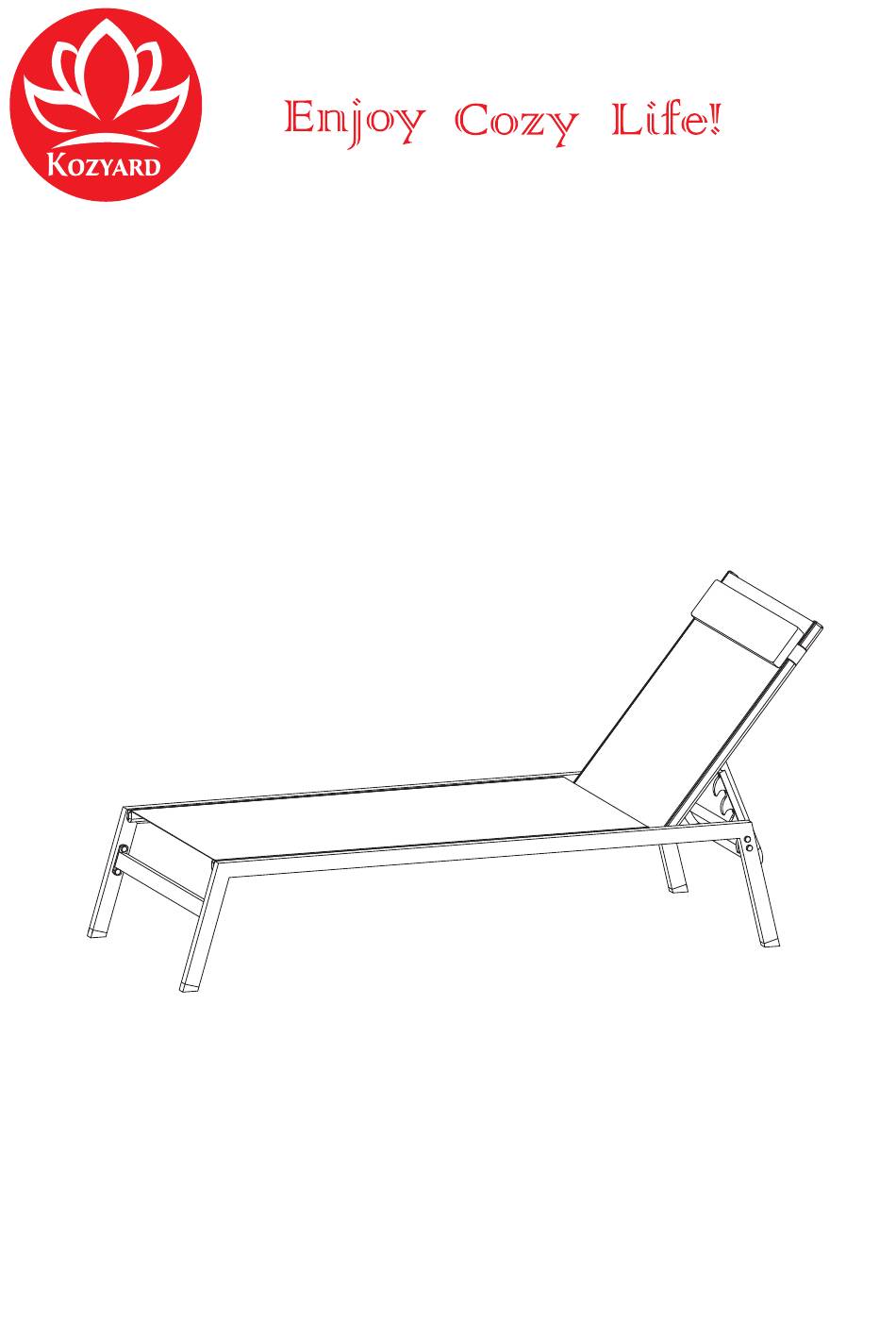

- Page 1 Outdoor Patio Steel Lounge Chair Assembly Instructions Kozyard LLC Products www.kozyard.com Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. © Version:20231006...
- Page 2 • Clean the frame components and fabric with a mild soap solution, then rinse thor- oughly. Avoid using bleach, acid, or any other solvents on either the fabric or frame components. • For a comprehensive warranty policy, please visit www.kozyard.com. Be aware that warranty terms can change without prior notification. Warning: 1.
- Page 3 Part list Back Main Seat Frame Left Leg Right Leg Support Bar Support Column Head Cushion Bolts M6X30 4X+1X Bolts Bolts M6X30 M6X16 8X+2X 4X+1X Plastic Bolts Allen Wrench Screwdriver Cylinder M6X35 4X+1X 24X+4X...
- Page 4 Step 1: Attach the 2 Legs (Parts C and D) to the Support Column (Part F) using Bolt (H) and Bolt (G) as depicted in the diagram. Step 2: Assemble the 2 Legs (Parts C and D) using the Support Bar (Part E) and Bolt (I) as indicated in the diagram.
- Page 5 Step 3: Attach the Main Seat Frame (Part B) to Legs (Part C and Part D) using Bolt (J) as shown in the diagram. Step 4: Connect the Back (Part A) to Legs (Part C and Part D) using Bolt (J) as depicted in the diagram Reminder: All parts must be put on the carpet or rug in the assembly.
- Page 6 Step 5: Please ensure that all screws are securely tightened before use. Step 6: Place the Head Cushion (Part M) onto the Back as indicated in the diagram.
- Page 7 Toll free: 1-866-355-0018 www.kozyard.com email: support@kozyard.com Follow us on Instagram www.instagram.com/kozyard Kozyard LLC © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
