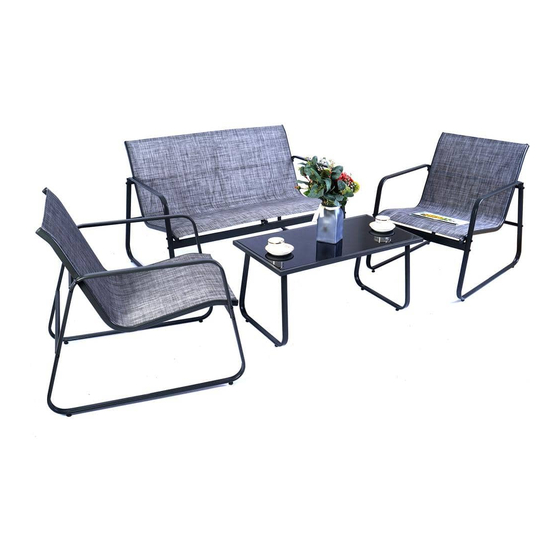

Outdoor 4pcs Conversation Set
Assembly Instrucions
Kozyard LLC Products
WWW.KOZYARD.COM
©
Copyright 2016 - 2020 Kozyard LLC. | All Rights Reserved.
ASSEMBLY INSTRUCTIONS
Prior to assembly, make sure you lay out and identify all the parts listed
in the parts list below.
Tighten all nuts and bolts securely. All bolts should be hand tightened
before use. Never use power tools or excessive force during assembly
or for tightening of bolts.
Should you experience any difficulty during assembly or if any parts are
missing or damaged:
Contact our customer service by email: info@kozyard.com or call toll
free: 866-355-0018.
Warning:
1. Make sure the conversation set is placed on a solid, level surface.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Outdoor 4pcs Conversation Set KZF601GR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kozyard Outdoor 4pcs Conversation Set KZF601GR

Summary of Contents for Kozyard Outdoor 4pcs Conversation Set KZF601GR

  • Page 1 Should you experience any difficulty during assembly or if any parts are missing or damaged: Contact our customer service by email: info@kozyard.com or call toll free: 866-355-0018. Warning: 1. Make sure the conversation set is placed on a solid, level surface.

  • Page 2: Hardware Bag

    Part List Part Description Part Description Back Frame Single Seat TableTop Frame Double Seat Table Leg Connecting bar Top Glass Hardware Bag Connecting bar M6*20 M6*32 M6*42 M6*60 Supporting bar N*18 O*12 Supporting bar Q*54...
  • Page 3 Single Chair Place legs (Part A) together by connecting bar (Part D) using bolt N and washer Q. Then affix the two connect bars (Part G) to legs (Part A) separately by using bolt N,and washer Q. Attention: Leave the above hole for connecting seat later.
  • Page 4 Attach supporting bar (Part F) under seat Place single seat (Part B) on legs (Part A) using (Part B) as show in diagram. bolt O, washer Q, plastic washer P ,and nut as shown in diagram. ！ Don’t screw thoroughly until Step 5 as shown in diagram 0.2”...
  • Page 5 Once finished, tighten all nuts and bolts Attach other side of seat (Part B) to leg (Part A) securely before use. using bolt O,plastic washer P, washer Q ,and nut as shown in diagram. 0.2” Don’t screw thoroughly ！ until Step 5. Repeat steps 1 to 5 for the other single chair.
  • Page 6 Loveseat First, set up legs (Part A) by connecting bar (Part E) using bolt N and washer Q. Then attach back frame (Part H) to legs (Part A) using bolt N and washer Q as shown in diagram. Attention: Leave the above hole for connecting seat later.
  • Page 7 Attach the double seat (Part C) to back frame (Part H) and Attach supporting bar (Part F) under seat connecting bar (Part E) using bolt M, washer Q and nut as (Part C) as show in diagram. shown in diagram. Back hole 0.2”...
  • Page 8 Attach double seat (Part C) to legs (Part A) using Once finished, tighten all nuts and bolts securely bolt O, washer Q, plastic washer P ,and nut as shown before use. in diagram. Attention: Plastic washer (Part P) must be put between Part A and Part C.

  • Page 9: Coffee Table

    Coffee Table Attach table legs (Part J) to the table top frame (Part I) using bolt L and washer Q as shown in diagram.
  • Page 10 Put glass (Part K) on (Part I) as shown in diagram. Kozyard LLC Once finished, tighten all nuts and bolts securely 10808 6th ST, Unit 100, before use. Rancho Cucamonga, CA 91730...
