Kozyard Alexander Assembly Manual

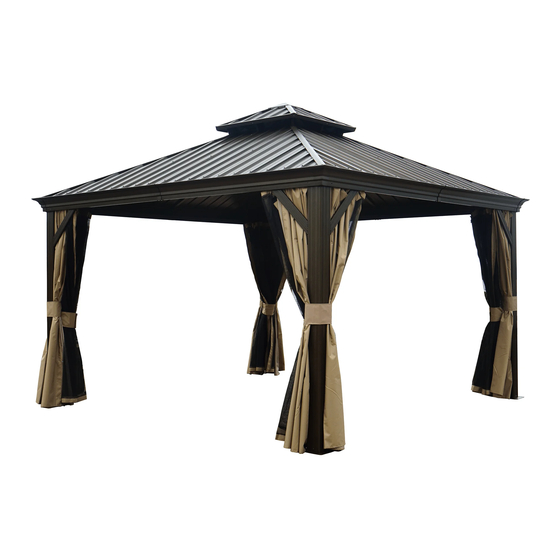

12'x14' hardtop gazebo with double roof
Hide thumbs Also See for Alexander:

Advertisement

Quick Links

Download this manual

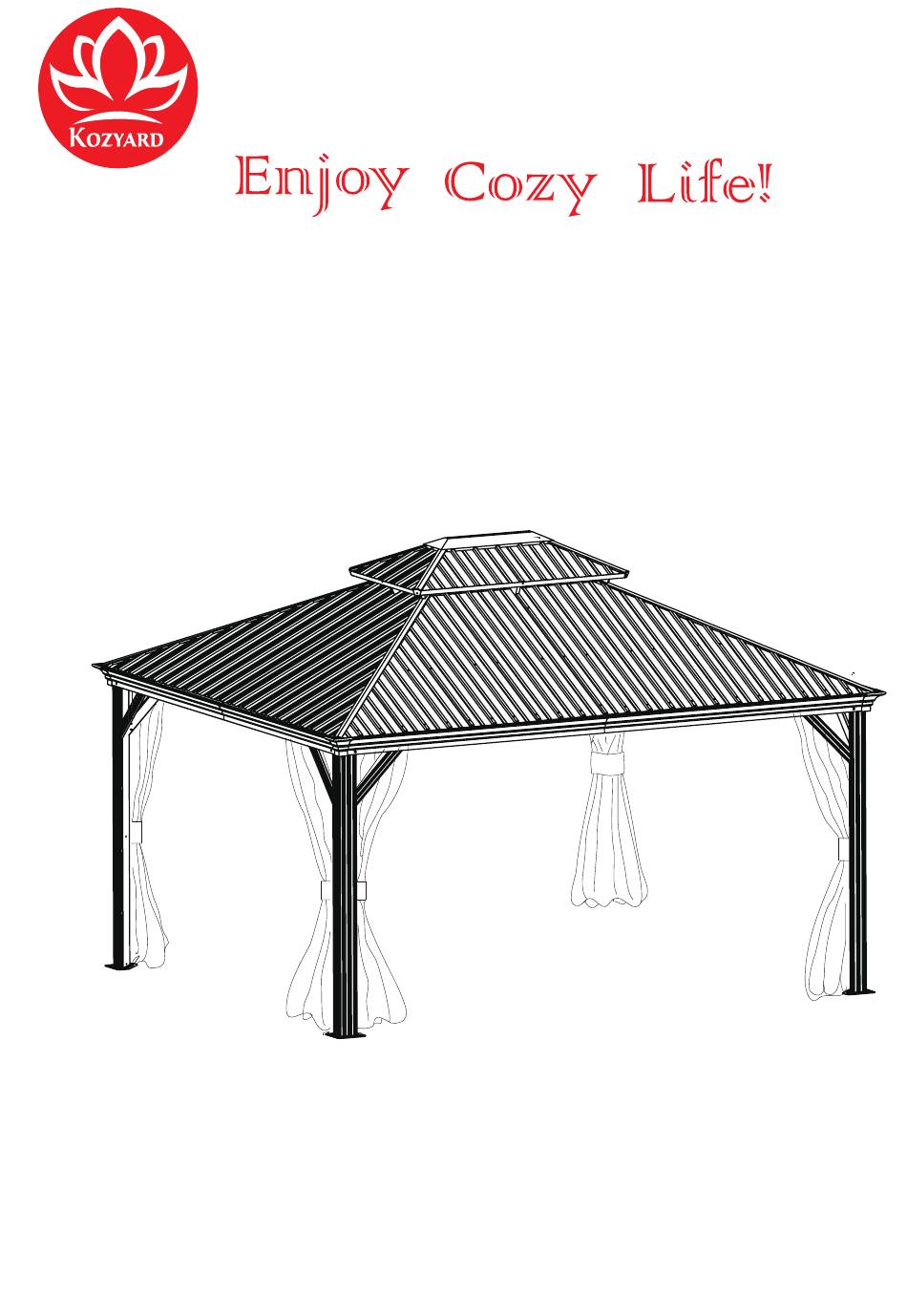

12'x14' Alexander Hardtop Gazebo
With Double Roof
Assembly Manual
Kozyard LLC Products
www.kozyard.com
©
Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
Version:20231006

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alexander and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kozyard Alexander

Summary of Contents for Kozyard Alexander

  • Page 1 12’x14’ Alexander Hardtop Gazebo With Double Roof Assembly Manual Kozyard LLC Products www.kozyard.com © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. Version:20231006...

  • Page 2: Warnings And Cautions

    Warnings and Cautions • Please read and follow this assembly and operation guide to reduce the risk of personal injury and damage to your gazebo. • Do not discard any of the packaging until you have checked that you have all the parts in place. The maximum weight capacity of this gazebo roof is 2500 pounds.
  • Page 3 Corner Solidifyng Bar F x4 Corner Solidifyng Bar Inside Roof Connector Outside Roof Connector H3 x1 H1 x4 H2 x1 Plate Short Corner Roof Bar Corner Roof Bar Roof Bar J2 x4 J1 x4 Roof Bar Alexander 12’X14’ assembly manual page 1...
  • Page 4 Roof Panel Roof Panel Roof Panel V11 x2 Roof Panel V12 x2 Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel V43 x2 V44 x2 V45 x2 V46 x2 Roof Panel Alexander 12’X14’ assembly manual page 2...
  • Page 5 Bracket Z4 x2 Bracket Z3 x2 Screws 246+4 Screws 16+2 4# x120+2 Screws 16+2 Hook 120+2 Screws 80+2 1# x246+4 Screws Screws 36+2 Screws 24+2 2# x16+2 Screws 12+1 Screws Washer 12+2 3# x16+2 Alexander 12’X14’ assembly manual page 3...
  • Page 6 3 inches 3/8 inches (Not included) Attention: After assembly, we strongly recommend anchoring the gazebo to your deck or concrete as shown above. Damage resulting from wind or improper anchoring is not covered under warranty. page 4 Alexander 12’x14’ assembly manual...
  • Page 7 1. Connect (Part C6,B6) into one beam using Union bar (Part F) with screws 1# as shown in the diagram. Short Beam Overall: 2. Connect (Part E7,D7) into one beam using Union Bar (Part F) with screws 1# as shown in the diagram. Long Beam Overall: Alexander 12’X14’ assembly manual page 5...
  • Page 8 2. Replicate the same steps for Joint Bars (Part B61 and D71), Tracks (Part B62 and D72), attaching them to Beams (Part B6 and D7) using screws 1# as shown in the diagram. Alexander 12’X14’ assembly manual page 6...
  • Page 9 Use screws 3# first, then use screw 2# to connect Poles and Beams together as shown in the diagram. ① Tip: Place parts on carpet or rug to avoid scratches during assembly. ② ② ① Tip: At least three people for this step. page 7 Alexander 12’X14’ assembly manual...
  • Page 10 Affix the frame with Corner Solidifying Bars (Parts J1, J2) using screws 1# as shown in the diagram. Tip: Measure (DIAGONALLY) from posts to posts to assure alignment so all materials fit as planned. page 8 Alexander 12’X14’ assembly manual...
  • Page 11 1. Finish connecting the beams using Corner ① Cover (Part H) and screws 9# and 1# Covers (Part G) and screws 9# as shown in the as shown in the diagram. diagram. ② ① ② ① ② ② ① page 9 Alexander 12’X14’ assembly manual...
  • Page 12 1. After finishing Step 6, apply silicone rubber to the seams to ensure they're watertight. 2. If the screws are correctly attached through Spacer part S on the roof panels, sealing the cap screws with silicone rubber isn't necessary. ① ① ① ① page 10 Alexander 12’X14’ assembly manual...
  • Page 13 Note the amount of hooks for each slot as noted below: ① hooks in each slot of sidewall track (part C62, Part B62). ② hooks in each slot of sidewall track (part E72, Part D72). page 11 Alexander 12’X14’ assembly manual...
  • Page 14 Long Corner Roof Bar (Part M2) using screws 1# and washer 12#.. Tip: The combination will be called “Part M3” in following steps. M3=M1+M2 Tip: Step 10: Set up Roof Frame Upward View ② page 12 Alexander 12’X14’ assembly manual...
  • Page 15 3. Attach Finishing Bar (Part P2, Q4) with ① Finish End (Part R) using screws 1# to Corner Roof Bar (Part M3) as shown in the diagram. ② ① Tip: At least two people for this step. Alexander 12’X14’ assembly manual page 13...
  • Page 16 Step 11: Set up Roof Bar N1 or N4 Attach Roof Bar (Part N1,N4) to main frame using screw 1#. Attention: The part N4 must be placed on the 14’ side. ① ① ① ① page 14 Alexander 12’X14’ assembly manual...
  • Page 17 Parts Required: K14 x1 Upward View Step 12 Connect Outside Roof Connctor Connect Outside Roof Connctor (Part K14) to inside roof (Part K4) using screw 1# as shown in the diagram. Alexander 12’X14’ assembly manual page 15...
  • Page 18 (Part Z, Z1, Z2, Z3, Z4) are supposed to attach. 3. You can use super glue (not included) to attach the brackets to the roof panel if the double-sided tape doesn't work for you. page 16 Alexander 12’X14’ assembly manual...
  • Page 19 1. Push the Roof Panels (Part V11, V12, V43, V44, V45,V46) up to the upper roof as shown in the diagram. 2. Attach Finishing Bars (Part T2, T4) to the upper roof with Finish End (Part R) using screws #1, as shown in the diagram. page 17 Alexander 12’X14’ assembly manual...
  • Page 20 Step 15: Connect Solidifying Bars Attach Solidifying Bars ( Part U1, U6) to Roof Bar or Corner Roof Bar using Iron Angle (Part U3, U4) and screws 1# as shown in diagram. ① ② page 18 Alexander 12’X14’ assembly manual...
  • Page 21 (Part Z) are supposed to attach. 3. You can use super glue (not included) to attach the brackets to the roof panel if the double-sided tape doesn't work for you Alexander 12’X14’ assembly manual page 19...
  • Page 22 (Part Z) are supposed to attach. 3. You can use super glue (not included) to attach the brackets to the roof panel if the double-sided tape doesn't work for you Alexander 12’X14’ assembly manual page 20...
  • Page 23 To facilitate the easy fastening of roof panels (Part W14, X44), please use double-sided adhesive tape (Part H3) to affix Part S onto Panel (Part W14, X44) in advance. This will prevent Part S from sliding down during assembly. Part S with adhesive tape W14 or X44 Alexander 12’X14’ assembly manual page 21...
  • Page 24 THEN, TIGHTEN all screws to secure the roof panels in place. ② ① ② ① ② ① ④ ④ ③ ④ ③ ④ ④ ③ Tip: At least two people for this step. Alexander 12’X14’ assembly manual page 22...
  • Page 25 Q 13 P 12 Q 13 Perspective: Q 13 Tip: The perspective drawing is for demonstrating how to assemble the final step that sets up the Net Frame (Parts P12, Q13, Q14) more effectively. page 23 Alexander 12’X14’ assembly manual...
  • Page 26 Install the Mosquito Net on the inner rails and the Solid Sidewalls on the outer rails as shown in the diagram. S3 or S4 Y3 or Y4 9 10 11 12 13 14 15th Alexander 12’X14’ assembly manual page 24...

  • Page 27: Care And Warranty

    90 days. For a comprehensive warranty policy, please visit www.koz- yard.com. Be aware that warranty terms can change without prior notification. • For the best performance and safety of your gazebo, inspect and tighten all bolts and fasteners regularly Alexander 12’X14’ assembly manual page 25...
  • Page 28 Don't hesitate to contact us directly if you are missing parts or need a replacement. Kozyard LLC © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
