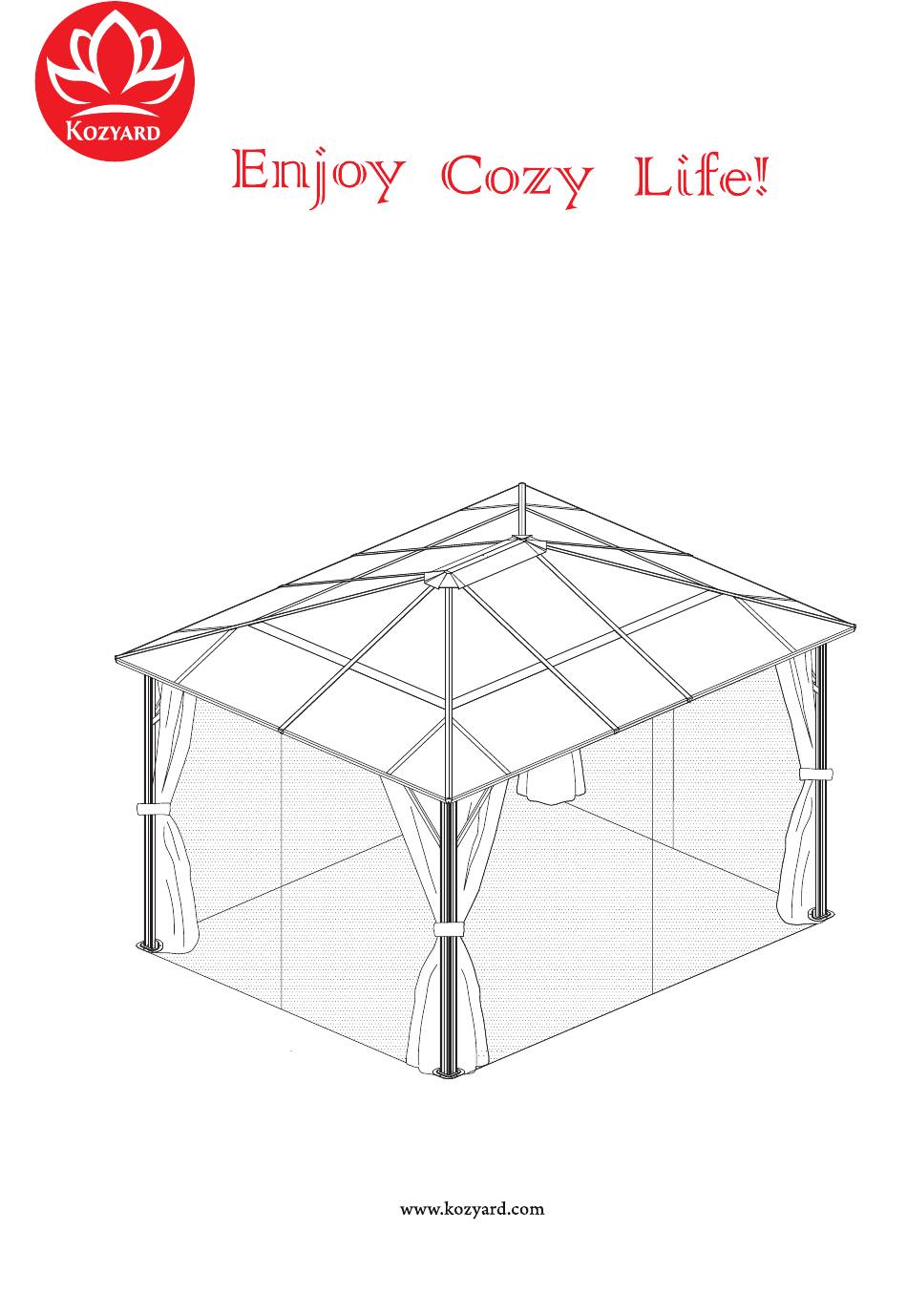

- Page 1 10’x12’ Edward Polycoabonate gazebo Assembly Manual Kozyard LLC Products © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
- Page 2 5.Use the hex keys in the box. screwdriver. 8.For ease of construction, you 7.Do not fully tighten screws may need to use a drill. prior to complete assembly. 10x12' ANCHOR BLUEPRINT EDWARD 357.5 cm/11.7' 15cm/5.9" 30x30cm/11.8"x11.8" 292.5 cm/9.6’ 262.5 cm/8.6’...
- Page 3 Pole Beam Beam Beam Beam Corner Roof Bar Corner Roof Bar Solidifying Bar Solidifying Bar Solidifying Bar Finishing Bar Finishing Bar Corner Solidifying Bar Finishing Bar Stand Palete Hook Corner Solidifying Bar...
- Page 4 Joint Outside Roof Inside Roof Corner Connector Connector Cover Cover Finishing Finishing Panels Panels Panels Panels Panels Panels Mosquito Panels Panels Side Wall Solidifying Solidifying Joint Allen Cover Screws Screws Spike Screws Screws Screws Screws Driver...
- Page 5 Step 1: Set up poles (Part A) with stand paletes (Part B) using screws ① as shown in diagram. Step 2： Put 6 hooks（Part H) to each slot of sidewall track (Part C&C1). Then connect Part C and Part C1 into one beam using screws ④...
- Page 6 Step 3： Use screws ③ to contect poles and beams together as shown in diagram. Step 4： Finish connecting beams using corner covers (Part K)and screws ② as shown in diagram. Affix middle beams using joint cover (Part J&S) and screws ①&② as shown in diagram.
- Page 7 Affix the frame with corner Solidifying Bars Step 5： (Part G and G1) by using Screws ④ as shown in diagram. Step 6： Set up roof frame. Connect the inside roof connect (Part L) with the corner roof bar (Part D) using Screws ④...
- Page 8 Step 7： Attach roof bar (Part D1) to inside roof connector(Part L) using screws ④ as shown in diagram. Attach roof bar (Part D1&D) to main frame using screws ④ as shown in diagram.
- Page 9 Step 8： Connect outside roof connector (Part L1) to inside roof connector (Part L) using screw ⑤ as shown in diagram.
- Page 10 Overall Half Roof Assembly Step 9: Insert Panels (Part N/N1/Q) to the slot of roof bar (Part D&PartD1) as show in diagram. Insert Solidifying Bars (Part E &Part E1)to the slot of roof bars (Part D&Part D1)to fix Panels as shown in diagram N/N1/Q...
- Page 11 Overall Roof Assembly...
- Page 12 Step 10： Affix Solidifying Bar (Part U &Part U1) to the Beam (Part C or Part C1) Then,Insert another side of Solidifying Bar (Part U & Part U1) to the Corner roof bar (Part D)
- Page 13 Step 11： Insert Panels (Part P&Part Q1&Part P1) to Roof Bars(Part D&Part D1) Then affix Finishing End (Part F, Part F1 &Part F2) to Roof Bars using Finishing End (Part M & Part M1) and Screws ④ as shown in diagram. P/Q1/P1 Attention:Cover the solidifying bars (PartU&Part U1) using finishing...
- Page 14 Step 12： Hang up solid sidewall and Mosquito net (Part R&Part R1) as shown in diagram. Attention：Change hook: take out Part S and Part H into the slot. There are three ways to secrue your netting and curtains to the legs using the include 4 ties. 1.) Securing just 2.) Securing netting 3.) Use all ties for...
- Page 15 Step 13： Secure the Paletes (Part B) using spike (Part V) Attention:It is better to anchor the plates to ground as blue print. At the end of process, tighten all srrews before using.
- Page 16 Kozyar © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
