iPA Alpha MUTT with ABS Operator's Manual

Mobile universal trailer tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

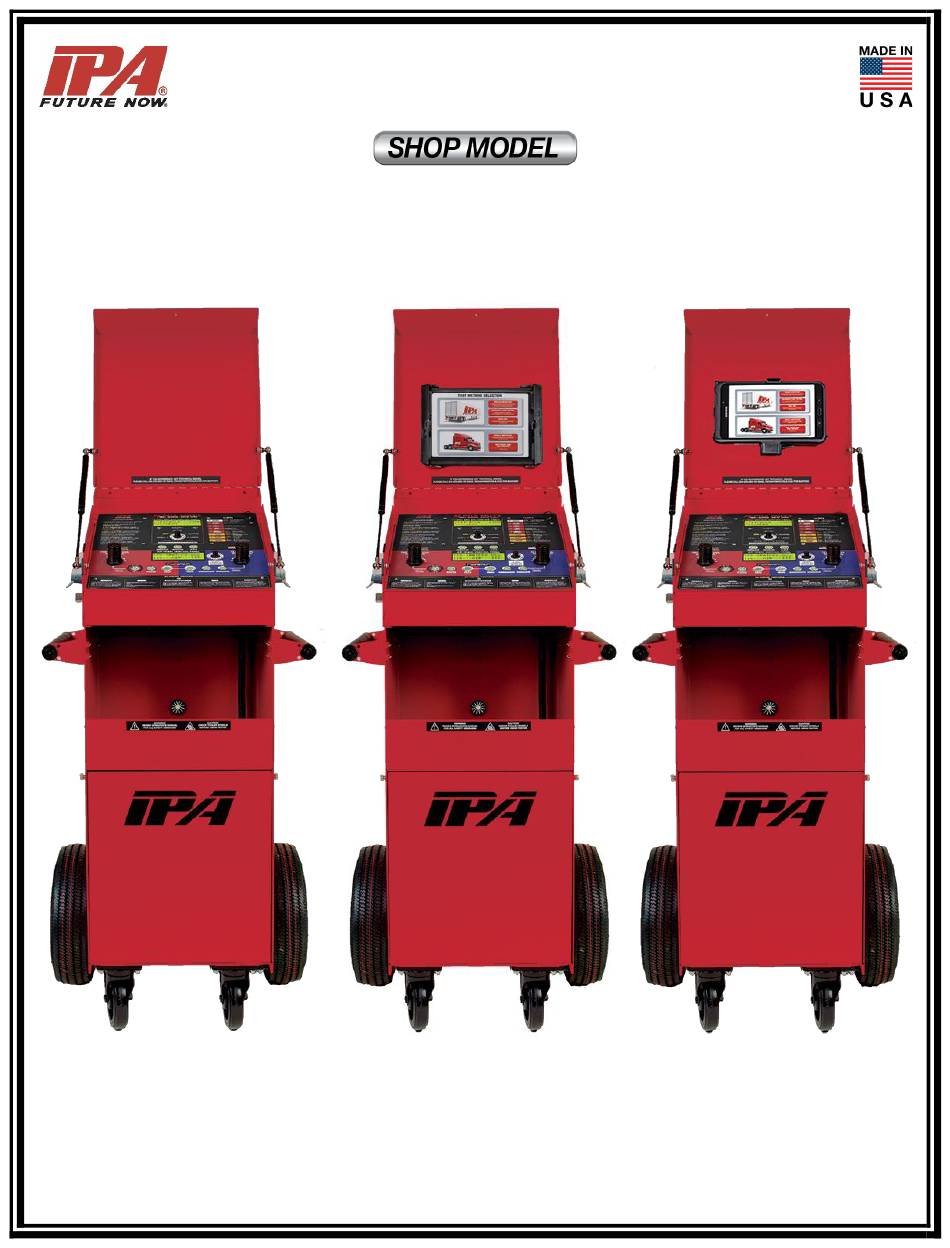

ALPHA MUTT
with ABS
®
Mobile Universal Trailer Tester
Set-Up Information • Operator's Manual • Technical Information
For All Models
#5710A
#5710A-T10
#5710A-RT8
Alpha MUTT
with ABS
Alpha MUTT
with ABS
Alpha MUTT
with ABS
®
®
®
Shop Model
and Tablet
and Rugged Tablet
(No Tablet)
Shop Model
Shop Model
Innovative Products of America
Incorporated 234 Tinker Street, Woodstock, NY 12498
®
888-786-7899 | tech247@ipatools.com | www.ipatools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alpha MUTT with ABS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iPA Alpha MUTT with ABS

Summary of Contents for iPA Alpha MUTT with ABS

  • Page 1 ALPHA MUTT with ABS ® Mobile Universal Trailer Tester Set-Up Information • Operator’s Manual • Technical Information For All Models #5710A #5710A-T10 #5710A-RT8 Alpha MUTT with ABS Alpha MUTT with ABS Alpha MUTT with ABS ® ® ® Shop Model and Tablet and Rugged Tablet (No Tablet)
  • Page 2 Congratulations on your recent purchase of an Alpha MUTT from ® Innovative Products of America ® This binder provides information on the #5710A Series Alpha MUTT units: ® • #5710A Alpha MUTT with ABS Shop Model (No Tablet) ® • #5710A-T10 Alpha MUTT with ABS &...
  • Page 3 . If there is a feature you wish it had, send us your feedback and ® it may be included in the next update. From all of us at IPA , we thank you for your purchase and wish you and your family the very best ®...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PART 1: INTRODUCTION AND SET-UP Introduction ……………………………………………………………….……………..1-1 Important Safety Information …………………………………………….………….…….. 1-2 Battery Gases, Tester Preparation and Tester/Charger Location ……....... 1-2 General Charger Use ………………………………………………………………………. 1-3 Registering Your Tester’s Warranty …………………………………………....… 1-4 Tester Identification ………………………………………………………………….……… 1-5 Tester Serial Number Firmware Version Number Software Version Number...
  • Page 5 1.22 Common Troubleshooting Solutions ……………………………………………………. 1-23 1.23 Instructions for In- and Out-of-Warranty Repairs ………………………………………. 1-24 PART 2: ELECTRICAL, LIGHTING AND AIR BRAKE TESTING Electrical/Lighting Testing …………………………………………….……...... 2-1 Pretest Checklist Tester Placement Maintain Connectors Cable Testing Procedure Selecting a Circuit …………………………………………….……………………………. 2-2 Autocycle Mode Ground Integrity Test ……………………………………………………………………….
  • Page 6 Sample Reports …………………………………………………………………....4-12 PART 5: TECHNICAL INFORMATION Exploded Views ………………………………………………………………….…………. 5-1 Shop Model Body Exploded View Shop Model Head Exploded View Shop Model Back Exploded View Shop Model Faceplate Exploded View Shop Model Base Exploded View Shop Model Wiring Diagrams …………………………………………………………..… 5-7 7-Way Socket Wiring Diagram 7-Way Test Socket Wiring Diagram Pneumatic Plumbing/Coil Routing Diagram...

  • Page 7: Part 1: Introduction And Set-Up

    PART 1: INTRODUCTION AND SET-UP...
  • Page 8 Please consult your specific model for ® your exact list of included options. This product is backed by a 3-year warranty with 24-hour repair or replace service. Should you run into any issues, please contact IPA directly at 888-786-7899 or email ®...

  • Page 9: Important Safety Information

    1.2 Important Safety Information It is important to read, understand and follow all safety messages and instructions printed in this manual and on the equipment before operating. If safety information is not heeded, serious injury or death to the operator or bystanders may occur. Danger Indicates a hazardous situation, if not avoided, will result in death or serious injury.

  • Page 10: General Charger Use

    • Do not smoke, strike a match, place metal tools on battery or cause a spark in the vicinity of the battery. When removing battery cables, remove the ground cable first. • Clean terminals before charging battery. Keep corrosive particles from eyes, nose and mouth. Use baking soda and water to neutralize acid and help eliminate airborne corrosion.

  • Page 11: Registering Your Tester's Warranty

    Three-Year Limited Warranty/Return or Replace Policy: The product is covered for three years from the date of original user purchase under the stipulations of the Standard Warranty. The product is warranted to be free from defects in workmanship or material. If there is a defect, IPA will ®...

  • Page 12: Tester Identification

    1.6 Tester Identification Tester Serial Number Located on the back of the tester’s head. Firmware Version Number Displays on the Upper LCD Menu Screen when the tester is powered on. Software Version Number Located on the top right corner of any screen while in the Alpha MUTT App.

  • Page 13: Included Accessories

    1.7 Included Accessories Image Part # Description Included In Gen 12-Button Remote with #MUT2-RM12 All Models Lanyard 10” Standard Tablet #5700-TAB-AS #5710A-T10 #CBL-9INUSBMIC Micro USB Cable #5710A-T10 #5700-RAMMNT-AS Mount for Tablet #5710A-T10 #5700-TABRT-AS Rugged Tablet #5710A-RT8 #5700-MNTRT-AS2 Mount for Rugged Tablet #5710A-RT8 #5710A-T10 #5700-TABCH...

  • Page 14: Optional Accessories

    ® License Suite 8” Rugged Rugged Tablet, Docking Tablet with Station, Hardware, Bluetooth ® Bluetooth #5710A ® Module, 12” Bluetooth #MUT2-RT8 ® and Standard #5710A-T10 Extension Cable, IPA ® Software Diagnostic Software Suite License PART 1: INTRODUCTION AND SET-UP 1-7...

  • Page 15: Control Panels

    1.8 Control Panels Electrical Control Panel A. Upper LCD Screen Shows voltage, amperage, ABS readings, circuit settings and system menus. B. Bluetooth Paired Indicator ® Steady blue light indicates paired device. C. Ground Integrity Indicator Solid green LED indicates good ground. Blinking green LED indicates a bad/poor ground. Ground integrity is automatically verified when power is turned on.

  • Page 16: Air Brake Control Panel

    M. ABS ECU Power Indicator Indicates health status of ECU circuit by analyzing electronic signature of ABS ECU. N. ABS Signal Quality Indicator Indicates the communication status of ABS computer through proprietary technology. LED colors display the specific status and should be referenced in relationship to the ABS ECU Power and ABS Fault Status indicators.

  • Page 17: Left And Right-Side Panels

    I. Service-Side Release Brakes Button Exhausts air and releases brakes. J. Service-Side Closed Button Closes Service-Side air. Can be used to initiate Auto Leakdown test when pressed and held simultaneously with Emergency-Side Close button. Left and Ride Side Panels Left Side Right Side A.

  • Page 18: Back Panel

    Back Panel A. Serial Tag Provides the serial number for the individual Alpha MUTT ® B. 12V DC Battery Trickle Charge Input (Cigarette Socket) ’s internal battery (battery not included). For connecting a trickle charger to the MUTT ® C. Service-Side Air Out For connecting the Service-Side Gladhand hose (blue).

  • Page 19: Battery Requirements

    1.9 Battery Requirements The Alpha MUTT is a 12/24V DC device. Attempting to power the ® MUTT with anything other than a 12- or 24-volt DC power source ® will destroy the internal circuitry and void the warranty. suggests using two Group 31 batteries for all Shop Models. ®...

  • Page 20: Optional 24-Volt Wiring Configuration

    Optional 24-Volt Wiring Configuration Negative Positive Negative Main Battery Leads from 12V Battery #1 12V Battery #2 Charger Alpha MUTT ® Jumper Positive WARNING: Input is output – If you use the 24V wiring configuration, the tester will provide 24V of power out of the trailer plugs.

  • Page 21: Stowing The 7-Way Cable On Shop Models

    1.11 Stowing the 7-Way Cable on Shop Models The Alpha MUTT Shop Models feature a hanging bracket on the back side for the 7-way cable ® 1. Locate the Truck/Trailer Out connector on the right side of the tester. 2. Insert the end of the 12’ 7-way cable into the connector until it is secured. 3.

  • Page 22: Connecting Shop Air

    1.13 Connecting Shop Air Once both gladhand hoses are attached to the tester, connect your shop air to the Shop Air inlet on the right side of the tester. Use the air regulator knobs to adjust pressure. The recommended testing pressure is 100 PSI.

  • Page 23: Installing The Bluetooth

    Bluetooth must be ® reestablished. • Bluetooth connectivity should be established within IPA apps, not through the main settings of ® ® the tablet.

  • Page 24: Bluetooth Module Fcc Regulations

    Bluetooth Module FCC Regulations ® This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 25: Tablet

    1.17 Tablet can be equipped with a standard 10” tablet, or an 8” military-grade, rugged tablet. Both The Alpha MUTT ® provide leading-edge technology in performance, battery life, screen resolution and security integration. The tablets are available as field-upgrades for models that are purchased without one. Power Volume - + Tablet Buttons...

  • Page 26: How To Check For Software Updates

    To access any Alpha MUTT updates, please visit ® http://support.ipatools.com and register an account. There are three options for downloading the IPA Productivity Software Suite: ® Email to Tablet: (Requires email account on tablet) •...

  • Page 27: Updating Firmware

    1.18 Updating Firmware may periodically update the firmware for the Alpha MUTT to increase functionality. While we try to ® ® always send out testers with the most up-to-date version of firmware, it is good practice to check for updates before you begin using the tester. From a computer, visit www.support.ipatools.com.

  • Page 28: Maintenance And Storage

    - The Alpha MUTT does not house any internal memory for saving reports. All memory is ® stored on the Tablet. Tablets do feature expandable storage options. Call IPA Tech ® Support for further information on how to expand memory.

  • Page 29: Common System Checks

    ECU. Remove the connections and clean them with the IPA #CLR-90, #CLR-188 and #CLR-250 pin cleaners. Once cleaned, treat ® the electrical connection with IPA Contact Cleaner and Shield. These tools can be found ® #8048 HD Fleet Technician’s Electrical Terminal Maintenance Set.

  • Page 30: Common Troubleshooting Solutions

    1.22 Common Troubleshooting Solutions Symptom Possible Cause Solution Remove wires going to cig. socket. If Shorted cig. socket or power 30-Amp fuse keeps blowing. fuse still blows, call Tech Support at connector. 888-786-7899. Main Bluetooth turned off on Ensure Bluetooth is turned on in the ®...

  • Page 31: Instructions For In- And Out-Of-Warranty Repairs

    Once a tech-support representative determines the tester needs to be sent in for repair, an RGA # will be assigned along with next step instructions for the customer. NOTE: • Always take at least five pictures of your tester BEFORE sending the tester to the IPA facility. ®...
  • Page 32 Examples of situations and parts not covered by out-of-warranty service: punctured tires, dented sheet metal, standard misuse and abuse, worn-out connectors due to excessive use, water/fire damage. PART 1: INTRODUCTION AND SET-UP 1-25...

  • Page 33: Part 2: Electrical, Lighting And Air Brake Testing

    PART 2: ELECTRICAL, LIGHTING AND AIR BRAKE TESTING...

  • Page 34: Electrical/Lighting Testing

    PART 2: ELECTRICAL, LIGHTING AND AIR BRAKE TESTING 2.1 Electrical/Lighting Testing The Alpha MUTT is microprocessor controlled and features a special diagnostic firmware designed to ® seamlessly integrate with your preferred methods of testing. The Alpha MUTT will power the selected ®...

  • Page 35: Selecting A Circuit

    2.2 Selecting a Circuit Circuits can be selected for testing manually with the control knob, with the remote control and tablet, or by initiating Auto Cycle mode. Manually Turn the Circuit Control knob to select a circuit. The control knob is automatically set to Ground Integrity when power is turned on.
  • Page 36 Autocycle Mode Autocycle mode automatically tests one circuit at a time in a clockwise rotation. Manually 1. To initiate, access Autocycle mode as a shortcut setting via the Shortcut button, or via the function menu which is located as a submenu in the main system settings. 2.

  • Page 37: Ground Integrity Test

    2.3 Ground Integrity Test Each time the Alpha MUTT is powered on, it automatically runs a Ground Integrity test. A good ground ® to operate a trailer’s electrical system. connection must be established for the Alpha MUTT ® 1. Immediately after powering up, the green lights around the Circuit Control knob will illuminate. 2.

  • Page 38: Fault Indication

    2.4 Fault Indication Open Circuit An open circuit fault warning is triggered when the circuit draws under 4mA of power. The Alpha MUTT ® has a circuit detection resolution of 1mA. (A single LED with an LED bulb will draw 5-7mA of current.) When the Alpha MUTT senses no load, it is often a symptom of a disconnected wire, cut wire, poor pin ®...

  • Page 39: Activating Hazard Lights

    2.5 Activating Hazard Lights The four-way flashers on the vehicle can be activated manually, with the remote controls or via the tablet. Manually Access Hazard mode as a shortcut setting via the Shortcut button. 12-Button Remote Control Press the Hazards button to activate. Tablet To activate, press the Hazards button on either Classic View or Remote View.

  • Page 40: All Circuits On (Override) Mode

    2.6 All Circuits On (Override) Mode All Circuits On mode will engage all electrical circuits at the same time. While short circuit sensing is operational in this mode, if a short circuit is found, the Alpha MUTT will not be able to identify which ®...

  • Page 41: Air Brake Testing Set-Up

    2.7 Air Brake Testing Set-Up CHOCK TRAILER WHEELS WARNING!!! DO NOT CONNECT SHOP AIR UNTIL COMPLETING THE TESTING SET-UP PROCEDURE. FAILURE TO FULLY UNDERSTAND THESE WARNINGS CAN RESULT IN MINOR TO SERIOUS INJURY AND POSSIBLY DEATH. NOTE: The Alpha MUTT is equipped with a safety feature which requires the user to acknowledge ®...

  • Page 42: Actuating Air Brakes

    2.8 Actuating Air Brakes This feature allows you to see the slacker adjustments and the pushrod travel in real time. Brakes can be activated manually with the remote controls or via the tablet. NOTE: The Alpha MUTT is equipped with a safety feature which requires the user to acknowledge ®...
  • Page 43 Actuate Air Brakes with 12-Button Remote Control 1. Press the E. Air Brake button to charge the Emergency Side to the desired working pressure. 2. Press the S. Air Brake button once to apply the service air brakes. 3. Press the S. Air Brake button again to release the brakes.

  • Page 44: Leakdown Testing

    2.9 Leakdown Testing Leakdown Testing can be performed manually or through an automatic test which displays pass or fail results. WARNING: DO NOT connect shop air until completing the testing set-up procedure. Failure to fully understand these warnings can result in minor to serious injury and possibly death. NOTE: The Alpha MUTT is equipped with a safety feature which requires the user to acknowledge ®...

  • Page 45: Automatic Leakdown Testing

    Automatic Leakdown Test An Automatic (AUTO) Leakdown Test allows a technician/operator to perform a test with preset pass/fail parameters (time and acceptable psi loss). The Alpha MUTT will conduct the Leakdown Test and display ® results when complete. Refer to the section titled Electrical Inspections for more information. 1.

  • Page 46: Part 3: Abs Testing

    PART 3: ABS TESTING...

  • Page 47: Accessing Abs Codes

    SUPPORT LINKS AND INFORMATION: If you suspect an issue with the tester’s software or hardware, please call IPA at 888-786-7899 or email tech247@ipatools.com.

  • Page 48: Manual Controls

    NOTE: Turning the control knob clockwise allows you to scroll through each sub-menu. Turning the control knob counterclockwise will back you out one sub-menu at a time. communicates with the trailer’s ABS ECU in real time, via IPA ’s proprietary internal The Alpha MUTT ®...

  • Page 49: Accessing Active Faults

    Accessing Active Faults (Sub-Menu #1) With the ACTIVE FAULTS Sub-Menu 1 selected and the Active SID and FMI codes displayed, turn the control knob clockwise to cycle through fault codes (Fig. 1-A). Press the control knob (Fig. 1-B) to read the Fault Description (Fig. 1-C). ABS AXLE 1LEFT Accessing Stored Faults (Sub-Menu #2) With the STORED FAULTS Sub-Menu 2 selected and the Stored SID and FMI codes displayed, turn...

  • Page 50: Tablet Controls

    Review the following pages for basic operation flow and further instructions. For technical assistance, please call 888-786-7899 NOTE: The ABS app provided with the Alpha MUTT was launched in 2019. IPA updates the app ®...

  • Page 51: Failure Mode Identifier (Fmi) Assignments

    3.4 Failure Mode Identifier (FMI) Assignments The Failure Mode Identifier (FMI) describes the type of failure detected in the subsystem identified by the PID or SID. The FMI and either the PID or SID combine to form a given diagnostic code (see PID 194 for added clarification).

  • Page 52: Sae J1587 Mid 137 Sid List

    3.5 SAE J1587 Mid 137 Sid List Brake SIDs (MIDs = 136, 137, 138, 139, 246, 247) Reserved Wheel Sensor ABS Axle 1 Left Wheel Sensor ABS Axle 1 Right Wheel Sensor ABS Axle 2 Left Wheel Sensor ABS Axle 2 Right Wheel Sensor ABS Axle 3 Left Wheel Sensor ABS Axle 3 Right Pressure Modulation Valve ABS Axle 1 Left...
  • Page 53 Brake Light Switch 2 Electronic Pressure Control, Axle 1 Pneumatic Back-up Pressure Control, Axle 1 Brake Pressure Sensing, Axle 1 Electronic Pressure Control, Axle 2 Pneumatic Back-up Pressure Control, Axle 2 Brake Pressure Sensing, Axle 2 Electronic Pressure Control, Axle 3 Pneumatic Back-up Pressure Control, Axle 3 Brake Pressure Sensing, Axle 3 Electronic Pressure Control, Trailer Control...

  • Page 54: Part 4: Using The Alpha Mutt App

    PART 4: USING THE ALPHA MUTT ®...

  • Page 55: Alpha Mutt ® Application Setup

    PART 4: USING THE ALPHA MUTT ® 4.1 Alpha MUTT Application Setup ® The Alpha MUTT app can be found on the Home screen of the tablet. Press the icon to launch ® the app. It is designed to be intuitive and easy to use. Review the following pages for basic operation flow and further instructions.

  • Page 56: Menu Bar Screens

    4.2 Menu Bar Screens Home Screen Testing Screen Notes Screen Optional Classic Views for Diagnostics - Swipe right to access Reports Screen Help Screen Settings Screen (Multiple) Inspection Creator Screen Sideswipe for alternate screens 4-2 PART 4: USING THE ALPHA MUTT ®...

  • Page 57: Diagnostic Controls

    4.3 Diagnostic Controls A. Stop/Reset Report Press once during diagnostics to stop report before completion. Press again to clear all diagnostics reported. B. Notes Press to log a note with report. Notes can be viewed on the Notes List page or on the report once completed.

  • Page 58: Electrical Inspections

    4.4 Electrical Inspections The Alpha MUTT app performs wireless diagnostic electrical tests and PM inspections. It includes an ® Inspection Creation feature which allows users to create custom DOT and PM inspections and generates, stores and shares reports via email. Sharing reports requires an email account to be set up on the tablet. 1.

  • Page 59: Pass Result

    Pass Result 1. If all circuits pass inspection, the app will prompt you to perform a visual walk-around inspection. 2. Select ALL CIRCUITS ON. Walk around the vehicle to visually ensure all bulbs/lamps are illuminated. 3. Once confirmed, press the PASS switch next to the darkened SUBMIT REPORT button.

  • Page 60: Fail Result

    Fail Result 1. If some or all circuits fail, the app will prompt you to troubleshoot or finalize the inspection. Once a FAILED result is found, you have four options to proceed: A: Troubleshoot the failed circuits. B: Save the inspection and test again. C: Save and test a new trailer.

  • Page 61: Dot/Pm Inspections

    4.5 DOT/PM Inspections 1. With the Alpha MUTT powered on, ensure it is ® paired with the tablet via Bluetooth . Select DOT/PM ® INSPECTIONS from the main menu. 2. Turn the desired Test Methods ON or OFF with each toggle switch.

  • Page 62: Truck Inspection Controls

    Truck Inspection Controls A. Inspection Categories Standard DOT/PM Inspection categories; editable in Inspection Creation tab. B. Inspection Results Standard DOT/PM Inspection-result categories. Press anywhere in box to toggle on/off. C. Comments Comments can be added per line by pressing ADD COMMENT and entering desired text in the pop-up window.

  • Page 63: Trailer Inspection Controls

    Trailer Inspection Controls A. Inspection Categories Standard DOT/PM Inspection categories; editable in Inspection Creation tab. B. Inspection Results Standard DOT/PM Inspection-result categories. Press anywhere in box to toggle on/off. C. Comments Comments can be added per line by pressing ADD COMMENT and entering desired text in the pop-up window.

  • Page 64: Saved Reports

    4.6 Saved Reports 1. Reports generated through the Alpha MUTT ® can be found in the Reports tab on the left side of the screen. 2. To toggle between Electrical and Inspection Reports, press the button in the bottom right corner. 3.

  • Page 65: Inspection Creation Tab

    4.7 Inspection Creator Tab The Alpha MUTT app allows users to create custom inspections using default templates and select ® which inspections will appear when initializing an inspection. 1. To begin, select the INSPECTION CREATOR tab from the left side menu. 2.

  • Page 66: Sample Reports

    4.8 Sample Reports Alpha MUTT Diagnostic Report ® (Software Field Title Inserted Info from app allows for user App Version: Version: 1.2.63 uploaded logos) Report Created: 4/1//2020 Company Name: Time Stamp: 03:08:48 PM Address 234 Tinker Street User Id: Admin Phone Number: 845-679-4500 VIN:...
  • Page 67 VEHICLE HISTORY RECORD UNIT #: REPAIR ORDER # VEHICLE TYPE: Trailer MOTOR CARRIER OPERATOR NAME: Innovative Products of America STREET: 234 Tinker St CITY, STATE/PROVINCE, ZIP CODE: Woodstock, N.Y., 12498 LICENSE PLATE NUMBER/STATE: 3456JK LOCATION: Woodstock VIN: XXXXXX HUB READING: HOURS: OWNER OF VEHICLE: QUALIFIED INSPECTORS NAME:...
  • Page 68 6. Safe Loading A. Part(S) of vehicle or conditions of loading such that the spare tire or any part of the load damage can fall onto the roadway B. Protection against shifting cargo C. Container securement devices on intermodal equipment 7.
  • Page 69 VEHICLE HISTORY RECORD UNIT #: REPAIR ORDER # VEHICLE TYPE: Trailer MOTOR CARRIER OPERATOR NAME: Innovative Products of America STREET: 234 Tinker St CITY, STATE/PROVINCE, ZIP CODE: Woodstock, N.Y., 12498 LICENSE PLATE NUMBER/STATE: 3456 LOCATION: Woodstock VIN: XXXXXX HUB READING: HOURS: OWNER OF VEHICLE: QUALIFIED INSPECTORS NAME:...
  • Page 70 B. Inspect & Lubricate All Doors, Door Hinges C. Lubricate Roll Up Door, Rollers, Hinges & Latch 10. Brakes A. Air Leaks, Valve Operation B. Missing/Loose Components C. Lubricate Cams & Slack Adjuster Zerks D. Adjust Brakes. 1 1/2" Max Travel E.

  • Page 71: Part 5: Technical Information

    PART 5: TECHNICAL INFORMATION...

  • Page 72: Exploded Views

    PART 5: TECHNICAL INFORMATION 5.1 Exploded Views ITEM PART # DESCRIPTION 5710-BODY-AS 5710 BODY ASSY 5710-HEAD-AS 5710 HEAD ASSY PART 5: TECHNICAL INFORMATION 5-1...

  • Page 73: Shop Model Body Exploded View

    Shop Model Body Exploded View ITEM PART # DESCRIPTION 005700-8R 5700 BODY 5700 SIDE HANDLE ASS’Y 5700-HANDLE-AS 009060-8P BACK HOOK 5700-AXLE-AS 5700 AXLE SR0014 1.375” GROMMET 005700-11R CHARGER RETAINER 005700-6R BATTERY RETAINING BAR 005700-9R 5700 DOOR 12” WHEEL 005700-2 5700-CASTPLT-AS CASTER PLATE 5”...

  • Page 74: Shop Model Head Exploded View

    Shop Model Head Exploded View ITEM PART # DESCRIPTION 5710-BACK-AS 5710 BACK ASSY 5710-FACE-AS 5710 FACE ASSY 5710-BOTTOM-AS 5710 BOTTOM ASSY PART 5: TECHNICAL INFORMATION 5-3...

  • Page 75: Shop Model Back Exploded View

    Shop Model Back Exploded View ITEM PART # DESCRIPTION 005710-2RED 5710 BACK RED PWDCOAT 005710-4RED 5710 ACCESS PANEL RED PWDCOAT 005700-13R OBD PLATE 005700-14R OBD BRACKET 005700-OBD2M OBDSMALE CONNECTOR 005700-4R 9050 FACE SHIELD ASSEMBLY 005700-7R BLOCK OFF PLATE 005700-10BLK BACK HANDLE BRACKET BLACK HDL0007-AS BACK HANDLE HDL0007-CAP-AS...

  • Page 76: Shop Model Faceplate Exploded View

    Shop Model Faceplate Exploded View ITEM PART # DESCRIPTION 005710-1RED 5710 FACE RED PWDCOAT KMUT-CAS-5600 MAIN BOARD KMUT-CAS-5600B SECONDARY/AIR BOARD PCB0028-1AS AUXILIARY FUNCTION SWITCHBOARD PCB0028-2AS EMERGENCY FUNCTION SWITCHBOARD PCB0028-3AS SERVICE FUNCTION SWITCHBOARD RLY16 POWER RELAY 007900K-35ANT RF ANTENNA 18” MALE TO FEMALE USB-A CBL-USB18MF MUT-REG-AS REGULATOR VALVE...

  • Page 77: Shop Model Base Exploded View

    Shop Model Base Exploded View ITEM PART # DESCRIPTION 005710-3RED 5710 BOTTOM RED PWDCOAT 18” MALE TO FEMALE USB-A CBL-USB18MF SR0014 1.375” GROMMET 5600-SOL2-AS2 SOLENOID ASSEMBLY 005600-21 5-WAY TERMINAL BLOCK 5-6 PART 5: TECHNICAL INFORMATION...

  • Page 78: Shop Model Wiring Diagrams

    5.2 Shop Model Wiring Diagrams 7-Way Socket Wiring Diagram DESC.: 5710 7-Way Socket Wiring Date: 04/28/2022 7-Way Test Socket Wiring Diagram DESC.: 5710 7-Way Test Socket Wiring Date: 04/28/2022 PART 5: TECHNICAL INFORMATION 5-7...

  • Page 79: Pneumatic Plumbing/Coil Routing Diagram

    Pneumatic Plumbing/Coil Routing Diagram DESC.: 5710 Pneumatic Plumbing/Coil Routing Date: 04/28/2022 5-8 PART 5: TECHNICAL INFORMATION...

  • Page 80: Power Wiring Diagram

    Power Wiring Diagram DESC.: 5710 Power Wiring Date: 4/28/2022 PART 5: TECHNICAL INFORMATION 5-9...

  • Page 81: Peripheral Wiring Diagram

    Peripheral Wiring Diagram DESC.: 5710 Peripheral Wiring Date: 05/06/2022 Internal Battery Charger Cable Diagram * Both green wires crimped in QC0001 *Cable stripped back 1.5” from cut end DESC.: 5700 Internal Battery Charger Cable Date: 6/06/2018 5-10 PART 5: TECHNICAL INFORMATION...

  • Page 82: Typical Trailer Wiring

    5.3 Typical Trailer Wiring The standard wirings pictured below are viewed from both the front of the socket and the plug. Not all trailers/vehicles are wired to these standards. The use of an electrical circuit tester is necessary to ensure proper match of vehicle’s wiring to trailer’s wiring. On some trailers with 6-way round plugs, the 12V wire and electric brake wire may be reversed (particularly horse trailers).

  • Page 83: Complete Specifications

    5.4 Complete Specifications 5710A Alpha MUTT Gen) with ABS Shop Model ® Specifications • 7-Way Round Pin Connection Type • 12/24V DC Power Input • Suggested Battery - 2x Group 31 Threaded Post or Similar (Not Included) • 20A @ 12/24V DC Source Output •...

  • Page 84: 5710A-T10 Alpha Mutt

    2x Group 31 Threaded Post or Similar (Not Included) • 20A @ 12/24V DC Source Output • 120 psi Max. Operating Pressure Technology • 10” Standard Tablet • IPA Productivity Suite ® • 4.0 Bluetooth ® • High-Speed Microprocessor • 1mA Resolution Ammeter •...

  • Page 85: 5710A-Rt8 Alpha Mutt ® (2 Nd Gen) With Abs And Rugged Tablet Shop Model

    2x Group 31 Threaded Post or Similar (Not Included) • 20A @ 12/24V DC Source Output • 120 psi Max. Operating Pressure Technology • 8” Military-Grade, Rugged Tablet • IPA Productivity Suite ® • 4.0 Bluetooth ® • High-Speed Microprocessor •...
  • Page 86 Mounted Equipment • 16ga. Powder-Coated Steel Construction • Waterproof, Sealed Faceplate • Steel 7-Way Socket • Panel-Mounted Regulators - 0-125 PSI • Integrated ¼” NPT Stone Air Filter • Integrated Steel Face Shield - w/ Pneumatic Dampers • Tablet Docking/Charging Station •...

  • Page 87: 5700-Tabrt-As Military-Grade, Rugged Tablet

    #5700-TAB-AS Standard Tablet Specifications • Android 8.0 Operating System • 10.1” Touch Screen • WXGA (1920 x 1200) Display Resolution • 16GB Memory • Micro USB 20. Port • V.4.2 Bluetooth ® • Li-Polymer Battery with Up to 13 hrs. Life •...
