iPA ALPHA MUTT 5700 Manual

Mobile universal trailer tester
Hide thumbs Also See for ALPHA MUTT 5700:
Table of Contents

Advertisement

Quick Links

Download this manual

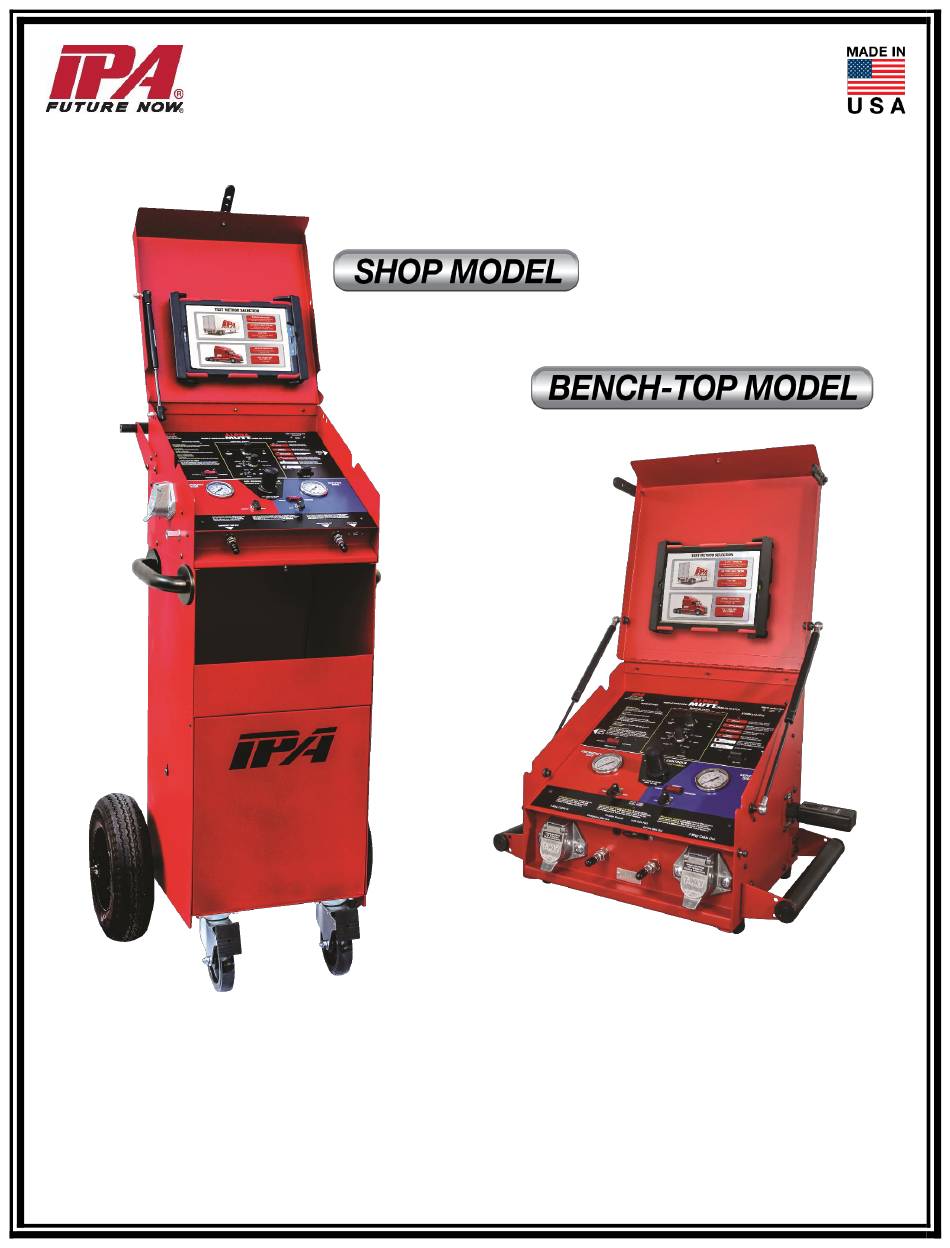

Set-Up Information • Operator's Manual • Technical Information
#5700 Alpha MUTT
#5700A Alpha MUTT
#5700A-RT Alpha MUTT
Rugged Tablet Shop Model
Innovative Products of America
ALPHA MUTT
Mobile Universal Trailer Tester
For All Models
Shop Model
®
w/ ABS Shop Model
®
w/ ABS &
®
Incorporated 234 Tinker Street, Woodstock, NY 12498
®
888-786-7899 | tech247@ipatools.com | www.ipatools.com
®
#5705 Alpha MUTT
Bench-Top Model
®
#5705A Alpha MUTT
w/ ABS
®
Bench-Top Model
#5705A-RT Alpha MUTT
Rugged Tablet Bench-Top Model
w/ ABS &
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA MUTT 5700 and is the answer not in the manual?

Questions and answers

Related Manuals for iPA ALPHA MUTT 5700

Summary of Contents for iPA ALPHA MUTT 5700

  • Page 1 ALPHA MUTT ® Mobile Universal Trailer Tester Set-Up Information • Operator’s Manual • Technical Information For All Models #5700 Alpha MUTT Shop Model #5705 Alpha MUTT Bench-Top Model ® ® #5705A Alpha MUTT w/ ABS ® #5700A Alpha MUTT w/ ABS Shop Model ®...
  • Page 2 Congratulations on your recent purchase of an Alpha MUTT from ® Innovative Products of America ® This binder provides information on all Alpha MUTT series units: ® • #5700 Alpha MUTT Shop Model ® • #5705 Alpha MUTT Bench-Top Model ®...
  • Page 3 . If there is a feature you wish it had, please send us your feedback ® and it may be included in the next update. From all of us at IPA , we thank you for your purchase and wish you and your family the very best ®...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Part 1: Introduction Testing Functions ……………………...……………………………………....Registering Your Tester’s Warranty ……………….…………………......… Tester Identification ………………………………………………………...... Tester Serial Number on Shop Models Tester Serial Number on Bench-Top Models Firmware Version Number Software Version Number Included Accessories ………………………...…….…………………......… Optional Accessories ……...……………………….………………......… Part 2: General Safety Instructions Important Safety Information ……………...…..…...………………......…...
  • Page 5 Part 6: Bluetooth ® Installing the Bluetooth Communication Module …………………………....® Direct Connection Using an Extension Cable Bluetooth Dos and Don’ts …………………………………………….....……… ® Bluetooth Module FCC …………………………………………………....……. ® Part 7: Operating the Alpha MUTT ® Application Setup …………………………………………………………....……. Accounts Company Information Testing Defaults Menu Bar Screens …………………………………………………………....……...
  • Page 6 Part 12: Updating Firmware 12.1 Updating Front Face Panel ……………………......…………………... 12-1 12.2 Updating ABS Module …………………………………………......….. 12-2 Part 13: Maintenance 13.1 Maintenance and Storage ……………………………………......……. 13-1 13.2 Instructions for In- and Out-of-Warranty Repairs …………………......13-2 Part 14: Troubleshooting 14.1 FAQ ………………………………………………………………........14-1 14.2 Common System Checks …………………………………………......

  • Page 7: Part 1: Introduction Pg

    Part 1: Introduction...
  • Page 8 It saves time and money by providing mistake-free, paperless inspections that are faster and more efficient than existing methods across all your locations. Innovative Products of America (IPA ) uses its own proprietary technology and a custom software suite ®...

  • Page 9: Registering Your Tester's Warranty

    (either by warranty card from the seller or by point of purchase receipt/invoice) and the manufacturer makes every attempt to return ship the product within three business days from the receipt of the returned product, freight prepaid. If it has been determined that the tool has been damaged due to misuse, IPA ®...

  • Page 10: Tester Serial Number On Shop Models

    1.3 Tester Identification Tester Serial Number on Shop Models Can be found on the back of the tester’s head. Tester Serial Number on Bench-Top Models Can be found on the front of the tester. Firmware Version Number The Firmware version number will display on the LCD Menu Screen when you power the tester on.

  • Page 11: Included Accessories

    1.4 Included Accessories Part # Description Location Image Included In (2) 12-Button Remotes and Battery #MUT-RM12 Remotes with All Alpha Models Accessories Nylon Bag Lanyards Holster on Underside #5700, #5700A, #5705, #5700-TAB Tablet of Lid #5705A Connected to Tablet #5700, #5700A, #5705, #CBL-9INUSBMIC Micro USB Cable and Tester Face...

  • Page 12: Optional Accessories

    Power Cord for Remotes and Battery #7900K-80ACORD Shop Models Internal Charger Accessories Nylon Bag Battery Jumper Remotes and Battery #5700-BATJMPR-AS Cables w/ Shop Models Accessories Nylon Bag Hardware Unpack and Start-Up Battery Retaining #005700-6R Shop Models (Box 1 of 3) Unpack and Start-Up #CVR-0002 Rain Cover...

  • Page 13: Part 2: General Safety Instructions

    Part 2: General Safety Instructions...

  • Page 14: Battery Gases, Tester Preparation And Tester/Charger Location

    PART 2: GENERAL SAFETY INSTRUCTIONS 2.1 Important Safety Information It is important to read, understand and follow all safety messages and instructions printed in this manual and on the equipment before operating. If safety information is not heeded, serious injury or death to the operator or bystanders may occur.

  • Page 15: General Charger Usage

    • Clean terminals before charging battery. Keep corrosive particles from eyes, nose and mouth. Use baking soda and water to neutralize acid and help eliminate airborne corrosion. • Never allow clamps on charger cables to touch each other. • Do not expose tester or charger to rain, snow or wet conditions. •...

  • Page 16: Part 3: Specifications

    Part 3: Specifications...

  • Page 17: Shop Models

    PART 3: SPECIFICATIONS 3.1 Alpha Mutt Shop Models ® Specifications: Connection Type: 7-Way Round Pin Power Input: 12/24V DC Suggested Battery: 2x Group 31 Threaded Post or Similar (Not Included) Internal Battery Charger: 12V 10-Amp Smart Battery Charger 5mA – 21A Ammeter: Source Output: 20A @ 12/24V DC...

  • Page 18: Standard Tablet

    3.3 Standard Tablet (Available with Most Models) Specifications: Operating System: Android 8.0 Screen Size: 10.1" Display Resolution: WXGA (1920 x 1200) Touch Screen: Memory: 16GB USB Port: Micro USB 2.0 Bluetooth v.4.2 ® Battery Type: Li-Polymer Battery Life: Up to 13 hrs. Certifications: Energy Star, RoHS 3.4 Military-Grade, Rugged Tablet...

  • Page 19: Part 4: Initial Setup

    Part 4: Initial Setup...

  • Page 20: Basic Battery Information

    PART 4: INITIAL SET-UP 4.1 Basic Battery Information The Alpha MUTT is a 12/24V DC device. Attempting to power the ® MUTT with anything other than a 12- or 24-volt DC power source ® will destroy the internal circuitry and void the warranty. suggests using two Group 31 batteries.

  • Page 21: Optional 24-Volt Wiring Configuration

    OPTIONAL 24-VOLT WIRING CONFIGURATION Negative Positive Negative Main Battery Leads from 12V Battery #1 12V Battery #2 Charger Alpha MUTT ® Jumper Positive WARNING: Input is output – If you use the 24V wiring configuration, the tester will provide 24V of power out of the trailer plugs.

  • Page 22: Attaching And Stowing The 7-Way Cable On Shop Models

    4.3 Attaching and Stowing the 7-Way Cable on Shop Models Locate the Truck/Trailer Out connector on the right side of the tester. Insert the end of the 12’ 7-way cable into the connector until it is secured. The Alpha MUTT Shop Models feature a hanging bracket on ®...

  • Page 23: Connecting Shop Air To The Tester

    4.5 Connecting Shop Air to the Tester Once both gladhand hoses are attached to the tester, connect your shop air to the Shop Air Inlet on the left-hand side of the tester. Use the Air Regulator knob to adjust pressure. The recommended testing pressure is 100 PSI.

  • Page 24: Bench-Top Model Mounting Options

    4.7 Bench-Top Model Mounting Options Bench-Top Model’s innovative and versatile design features flexible mounting options The Alpha MUTT ® to allow you to hang the tester from a truck or wall, mount to a cart, or simple carry it around the shop. All bench-top models are shipped with the carry handle option pre-installed.

  • Page 25: Bottom Mount Option

    Bottom Mounting Option Assembled View Top View with Dimensions Exploded View...

  • Page 26: Back Mount Option

    Back Mounting Option Assembled View Front View with Dimensions Exploded View...

  • Page 27: Part 5: General Controls And Operations

    Part 5: General Controls and Operations...

  • Page 28: Electrical Control Panel (All Models)

    PART 5: GENERAL CONTROLS AND OPERATION 5.1 Electrical Control Panel (All Models) PRIMARY SECONDAR SOURCE Y SOURCE A. LCD Menu Screen B. LCD Menu Control Knob C. Bluetooth Paired Indicator ® Steady blue light indicates paired device. D. Circuit Control Knob E.

  • Page 29: Mechanical Functions

    Mechanical Functions The Alpha MUTT has two control knobs on its upper control panel. ® 1. The LCD Menu Control Knob can be used to activate all menu options and modes such as volume and contrast on the LCD screen, as well as cycle through trailer information when using the ABS App (See App Section for more details).

  • Page 30: Air Brake Control Panel On Shop Models

    5.2 Air Brake Control Panel on Shop Models A. Emergency-Side Air Pressure Gauge Shows Emergency-Side air pressure. B. Emergency-Side Air Ball Valve Opens, closes or exhausts Emergency-Side air. C. Chassis Ground Outlet For establishing a chassis ground connection. D. Emergency-Side Out For connecting the Emergency-Side gladhand hose (red).

  • Page 31: Left, Right And Back Panels On Shop Models

    5.3 Left, Right and Back Panels on Shop Models A. 7-Way Round Pin Cable Test Input For testing the integrity of a 7-way round pin trailer cable. Can also be used to verify that the MUTT is operating correctly. ® B.

  • Page 32: Air Brake Control Panel On Bench-Top Models

    5.4 Air Brake Control Panel on Bench-Top Models Chassis Ground USB Data Port Truck/Cable Test In Trailer Out Emergency Side Out Service Side Out A. Emergency-Side Air Pressure Gauge Shows Emergency-Side air pressure. B. Emergency-Side Air Ball Valve Opens, closes or exhausts Emergency-Side air. C.

  • Page 33: Left, Right And Back Panels On Bench-Top Models

    5.5 Left, Right and Back Panels on Bench-Top Models A. 20 Amp Independent Power Input For connecting external 12V DC 20-amp max. power supply. (Power supply is an optional accessory, not for battery charging.) B. Shop Air Input A bulk-head air input that is used to connect an air compressor to the MUTT for testing air ®...

  • Page 34: Remote Controls

    5.6 Remote Controls The included remote controls are preprogrammed to the Alpha MUTT and should never lose their ® programming. If you suspect a remote has lost its programming, contact Technical Support at 888-786- 7899 or email tech247@ipatools.com. How to Program the 12-Button Remote 1.

  • Page 35: Tablet Controls

    5.7 Tablet Controls The Alpha MUTT comes equipped with a tablet that provides leading-edge technology in performance, ® battery life, screen resolution and security integration. The RT models include a rugged, military-grade tablet with added durability and longevity. Both tablet’s base functions work the same as noted below. Tablet Buttons The tablet features several stationary buttons which provide quick access to important features.
  • Page 36 To access any Alpha MUTT updates, please visit ® http://updates.ipatools.com and register an account. There are three options for updating the IPA ® Diagnostic Software Suite on your Alpha MUTT tablet: ®...
  • Page 37 Part 6: Bluetooth ®...
  • Page 38 PART 6: BLUETOOTH ® The tablet controls the Alpha MUTT through a Bluetooth connection 4.0 or newer BLE (Bluetooth ® ® ® Energy) technology. This technology provides faster response times at longer distances. If the BLE connection is lost during operation, you can attempt to reestablish the connection by accessing the BLE connection button in the Alpha MUTT app.
  • Page 39 Bluetooth must be ® reestablished. • Bluetooth connectivity should be established within IPA apps, not through the main settings of ® ® the tablet.
  • Page 40 Part 7: Operating the Alpha MUTT ®...
  • Page 41 PART 7: OPERATING THE ALPHA MUTT ® 7.1 Application Setup The Alpha MUTT app can be found on the Home screen of the tablet. Press the icon to launch ® the application. The application is designed to be intuitive and easy to use. Review the following pages for basic operation flow and further instructions.
  • Page 42 7.2 Menu Bar Screens Home Screen Testing Screen Notes Screen Optional Classic Views for Diagnostics - Swipe right to access Reports Screen Help Screen Settings Screen (Multiple) Inspection Creator Screen Sideswipe for alternate screens...
  • Page 43 7.3 Diagnostic Controls A. Stop/Reset Report Press once during diagnostics to stop report before completion. Press again to clear all diagnostics reported. B. Notes Press to log a note with report. Notes can be viewed on the Notes List page or on the report once completed.
  • Page 44 Part 8: Electrical and Lighting Testing...
  • Page 45 PART 8: ELECTRICAL/LIGHTING TESTING The Alpha MUTT is microprocessor controlled and features a special diagnostic firmware, designed to ® seamlessly integrate with your preferred methods of testing. The Alpha MUTT will power the selected ® electrical circuits and instantly alert you to any signs of a faulty condition. To properly utilize the diagnostic features, a complete scan of the trailer’s electrical system should be performed at the front of the trailer using the Alpha MUTT prior to a walk-around inspection.
  • Page 46 8.2 Selecting A Circuit Circuits can be selected for testing manually, with the remote controls and tablet, or by initiating Auto Cycle mode. Manually 1. Turn the Circuit Control knob to select a circuit. The control knob is automatically set to Ground Integrity when power is turned on.
  • Page 47 Auto-Cycle Mode Auto Cycle mode automatically tests one circuit at a time in a clockwise rotation. Manually 1. Press and release the Circuit Control knob. The AUX 2 indicator should illuminate. 2. A five-second delay commences between circuit sections. 3. Circuits are automatically tested one at a time in a clockwise rotation.
  • Page 48 8.3 Ground Integrity Test Each time the Alpha MUTT is powered on, it automatically runs a Ground Integrity test. A good ground ® to operate a trailer’s electrical system. connection must be established for the Alpha MUTT ® 1. Immediately after powering up, the green lights around the Circuit Control knob will illuminate. 2.
  • Page 49 8.4 Fault Indication Open Circuit When the Alpha MUTT senses no load, it is often ® a symptom of a disconnected wire, cut wire, poor pin connection or bad return ground. The Alpha MUTT can detect open circuits in two ways. ®...
  • Page 50 8.5 Activating Hazard Lights The four-way flashers on the vehicle can be activated manually, with the remote controls or via the tablet. Manually 1. To activate/deactivate, press the Hazard button. 12-Button Remote Control 1. To activate, press and hold the Hazards button. Tablet 1.
  • Page 51 8.6 All Circuits On (Override) Mode All Circuits On mode will engage all electrical circuits at the same time. While short circuit sensing is operational in this mode, if a short circuit is found, the Alpha MUTT will not be able to identify which ®...
  • Page 52 Part 9: Air Brake Testing...
  • Page 53 PART 9: AIR BRAKE TESTING 9.1 Testing Set-Up 1. Push the Power Source switch to the OFF position. 2. Set both Emergency and Service-Side air ball valves to the CLOSED position. directly to your trailer’s air system, securing the 3. Attach gladhand hoses from the Alpha MUTT ®...
  • Page 54 9.3 Leak Down Testing You must always test the Emergency Side before testing the Service Side. Trying to test the Service Side first will result in erroneous readings. Emergency-Side Leak Down Testing 1. After setting the desired working pressure, set the Emergency-Side air ball valve to the CLOSED position.
  • Page 55 9.4 Actuating Air Brakes This feature allows you to see the slacker adjustments and the pushrod travel in real time. Brakes can be activated manually, with the remote controls or via the tablet. Actuate Brakes Manually 1. Charge the Emergency Side to the desired working pressure and leave both the Emergency and Service-Side air ball valves in the OPEN position.
  • Page 56 Actuate Brakes with the Tablet 1. Charge the Emergency Side to the desired working pressure. 2. With both air ball valves in OPEN position, set the Service-Side brake control switch to REMOTE. 3. Press the Air Brakes button on either the Classic or Remote View on the tablet to engage the service air brakes.
  • Page 57 Part 10: Diagnostics...
  • Page 58 SUPPORT LINKS AND INFORMATION: If you suspect an issue with the tester’s software or hardware please call IPA at 888-786-7899 or email tech247@ipatools.com. ®...
  • Page 59 NOTE: Turning the control knob clockwise allows you to scroll through each sub menu. turning the control knob counterclockwise will back you out one sub menu at a time. communicates with the trailer’s ABS ECU in real time, via IPA ’s proprietary The ALPHA MUTT ®...
  • Page 60 Accessing Active Faults (Sub Menu #1) With the ACTIVE FAULTS Sub Menu 1 selected and the Active SID and FMI codes displayed, turn the control knob clockwise to cycle through the fault codes (Fig. 1-A). Press the control knob (Fig. 1- B) to read the Fault Description (Fig.
  • Page 61 The application is designed to be intuitive and easy to use. Review the ABS application overview below for basic operation flow and further instructions. For technical assistance, please call 888-786-7899. NOTE: The ABS application provided with the Alpha MUTT was launched in 2019. IPA updates ® ®...
  • Page 62 10.4 Failure Mode Identifier (FMI) Assignments The Failure Mode Identifier, FMI, describes the type of failure detected in the subsystem identified by the PID or SID. The FMI and either the PID or SID combine to form a given diagnostic code (see PID 194 for added clarification).
  • Page 63 10.5 SAE J1587 Mid 137 Sid List Brake SIDs (MIDs = 136, 137, 138, 139, 246, 247) Reserved Wheel Sensor ABS Axle 1 Left Wheel Sensor ABS Axle 1 Right Wheel Sensor ABS Axle 2 Left Wheel Sensor ABS Axle 2 Right Wheel Sensor ABS Axle 3 Left Wheel Sensor ABS Axle 3 Right Pressure Modulation Valve ABS Axle 1 Left...
  • Page 64 Electronic Pressure Control, Axle 1 Pneumatic Back-up Pressure Control, Axle 1 Brake Pressure Sensing, Axle 1 Electronic Pressure Control, Axle 2 Pneumatic Back-up Pressure Control, Axle 2 Brake Pressure Sensing, Axle 2 Electronic Pressure Control, Axle 3 Pneumatic Back-up Pressure Control, Axle 3 Brake Pressure Sensing, Axle 3 Electronic Pressure Control, Trailer Control Pneumatic Back-up Pressure Control, Trailer Control...
  • Page 65 Part 11: Inspections and Reporting...
  • Page 66 PART 11: INSPECTIONS AND REPORTING The Alpha MUTT app performs wireless diagnostic electrical tests and PM inspections. It includes an ® Inspection Creation feature which allows users to create custom DOT and PM inspections and generates, stores and shares reports via email. Sharing reports requires an email account to be set up on the tablet.
  • Page 67 Pass Result 1. If all circuits pass inspection, the app will prompt you to perform a walk-around, visual inspection. 2. Select ALL CIRCUITS ON. Walk around the vehicle to visually ensure all bulbs/lamps are illuminated. 3. Once confirmed, press the PASS switch next to the darkened SUBMIT REPORT button.
  • Page 68 Fail Result 1. If some or all circuits fail, the app will prompt you to troubleshoot or finalize the inspection. Once a FAILED result is found, you have four options to proceed: 2. A: Troubleshoot the failed circuits. B: Save the inspection and test again. C: Save and test a new trailer.
  • Page 69 11.2 DOT/PM Inspections 1. To begin, select DOT/PM INSPECTIONS from the main menu. Make sure there is Bluetooth ® connectivity between the tablet and the Alpha MUTT ® 2. Turn the desired Test Methods on or off with each toggle switch. Custom Inspections that are created in the Inspection Create tab will be visible only if they are set as DEFAULT in the Inspection Creator section of the app.
  • Page 70 Truck Inspection Controls A. Inspection Categories Standard DOT/PM Inspection categories; editable in Inspection Creation tab. B. Inspection Results Standard DOT/PM Inspection-result categories. Press anywhere in box to toggle on/off. C. Comments Comments can be added per line by pressing ADD COMMENT and entering desired text in the pop-up window.
  • Page 71 Trailer Inspection Controls A. Inspection Categories Standard DOT/PM Inspection categories; editable in Inspection Creation tab. B. Inspection Results Standard DOT/PM Inspection-result categories. Press anywhere in box to toggle on/off. C. Comments Comments can be added per line by pressing ADD COMMENT and entering desired text in the pop-up window.
  • Page 72 11.3 Saved Reports 1. Reports generated through the Alpha MUTT ® can be found in the Reports tab on the left side of the screen. 2. To toggle between Electrical and Inspection Reports, press the button in the bottom right corner. 3.
  • Page 73 11.4 Inspection Creator Tab The Alpha MUTT app allows users to create custom inspections using default templates and select ® which inspections will appear when initializing an inspection. 1. To begin, select the INSPECTION CREATOR tab from the left side menu. 2.
  • Page 74 11.5 Sample Reports Alpha MUTT Diagnostic Report ® (Software Field Title Inserted Info from app allows for user App Version: Version: 1.2.63 uploaded logos) Report Created: 4/1//2020 Company Name: Time Stamp: 03:08:48 PM Address 234 Tinker Street User Id: Admin Phone Number: 845-679-4500 VIN:...
  • Page 75 VEHICLE HISTORY RECORD UNIT #: REPAIR ORDER # VEHICLE TYPE: Trailer MOTOR CARRIER OPERATOR NAME: Innovative Products of America STREET: 234 Tinker St CITY, STATE/PROVINCE, ZIP CODE: Woodstock, N.Y., 12498 LICENSE PLATE NUMBER/STATE: 3456JK LOCATION: Woodstock VIN: XXXXXX HUB READING: HOURS: OWNER OF VEHICLE: QUALIFIED INSPECTORS NAME:...
  • Page 76 6. Safe Loading A. Part(S) of vehicle or conditions of loading such that the spare ✔ tire or any part of the load damage can fall onto the roadway. ✔ B. Protection against shifting cargo. ✔ C. Container securement devices on intermodal equipment. 7.
  • Page 77 VEHICLE HISTORY RECORD UNIT #: REPAIR ORDER # VEHICLE TYPE: Trailer MOTOR CARRIER OPERATOR NAME: Innovative Products of America STREET: 234 Tinker St CITY, STATE/PROVINCE, ZIP CODE: Woodstock, N.Y., 12498 LICENSE PLATE NUMBER/STATE: 3456 LOCATION: Woodstock VIN: XXXXXX HUB READING: HOURS: OWNER OF VEHICLE: QUALIFIED INSPECTORS NAME:...
  • Page 78 10. Brakes A. Air Leaks, Valve Operation ✔ B. Missing/Loose Components ✔ C. Lubricate Cams & Slack Adjuster Zerks ✔ D. Adjust Brakes. 1 1/2" Max Travel ✔ E. Inspect Brake Chamber ✔ F. Inspect Hoses, Leaks/Cracks/Swelling ✔ 11. Brakes Pad Thickness Min 1/4" ✔...
  • Page 79 Part 12: Updating Firmware...
  • Page 80 PART 12: UPDATING FIRMWARE may periodically update the firmware for the Alpha MUTT to increase functionality. While we try ® ® to always send out testers with the most up-to-date version of firmware, it is good practice to check for updates before you begin using the tester.
  • Page 81 Part 13: Maintenance...
  • Page 82 PART 13: MAINTENANCE 13.1 Maintenance and Storage • Switch power to OFF, remove all power cables and disconnect battery before storing and cleaning. • Wipe surfaces down with a well-wrung, soft, damp cloth. • Diluted dishwashing liquid or similar substance can be used in the dampened cloth if necessary.
  • Page 83 If at any point in the process you are not happy with the service or support you receive from any member of the IPA ®...
  • Page 84 Acquire RGA If In-Warranty If Out-of-Warranty If In-Warranty If Out-of-Warranty Parts Sent to Parts Sent to Send Tester to Send Tester to Customer – IPA Customer After Facility – IPA Facility – ® ® ® ® Covers Shipping Payment is...
  • Page 85 Part 14: Troubleshooting...
  • Page 86 - The Alpha MUTT does not house any internal memory for saving reports. All memory is ® stored on the tablet. Tablets do feature expandable storage options. Call IPA tech ® support for further information on how to expand memory.
  • Page 87 IPA CLR-90, CLR-188 and CLR-250 pin cleaners. Once cleaned, treat the ® ’s Contact Cleaner and Shield. These products can be electrical connection with IPA ® #8048 HD Fleet Technician’s Electrical Terminal Maintenance Set. found in the IPA ®...
  • Page 88 14.3 Common Troubleshooting Solutions Symptom Possible Cause Solution Remove wires going to cig. Shorted cig. socket or power 30-Amp fuse keeps blowing. socket. If fuse still blows, call connector. Tech Support at 888-786-7899. Main Bluetooth turned off on Ensure Bluetooth is turned on ®...
  • Page 89 Part 15: Exploded Views and Diagrams...
  • Page 90 PART 15: EXPLODED VIEWS AND DIAGRAMS 15.1 Shop-Model, Sheet-Metal Exploded View ITEM PART # DESCRIPTION 005700-1R FACE 005700-2R HEAD 005700-3R HEAD BASE 005700-4R FACE SHIELD 005700-5R ACCESS PANEL 005700-6R BATTERY BAR 005700-15R SIDE HANDLE BRACKET 005700-8R BODY 005700-9R BATTERY COVER 005700-10R BACK HANDLE BRACKET 005700-13R...
  • Page 91 15.2 Shop-Model, Body Exploded View ITEM PART # DESCRIPTION 005700-8R 5700 BODY HDL0011-AS2 5700 HANDLE ASSEMBLY TIRE 12” DIAM BLACK 005700-2 005700-6R BATTERY RETAINING BAR 005700-CHG-AS 12V 10A CHARGER 005700-CHGCORD-AS 12V 10A CHARGER CORD ASSY 005700-9R 5700 BATTERY COVER 005700-CASTPLT-AS CASTER PLATE 005700-12 5700 CASTER...
  • Page 92 15.3 Shop-Model, Base Exploded View ITEM PART # DESCRIPTION 005700-3R 5700 BASE 7900K-13A CHASIS GROUND MUT-AIROUT-AS BULK HEAD ASSEMBLY MUT-SOLX-AS 2-WAY SOLENOID 005700-5R ACCESS PANEL 1.375” GROMMET SR0014 CBL-USB3FTMF USB PORT/CABLE 15-3...
  • Page 93 15.4 Shop-Model, Head Exploded View ITEM PART # DESCRIPTION 9005A-RES-AS 7-WAY ROUND RESISTOR PACK MILLED BULKHEAD 1/4" NPT FITTING 7900AP-26-AS BUZ-AS2 PIEZO 005700-2R 5700 BACK 7900K-8Z 7-WAY ROUND BLUETOOTH ASSEMBLY MUT-EXTPWR2-AS EXT POWER PLC ASSEMBLY 005700-5R ACCESS PANEL 7900K-34ANT RF ANTENNA CBL-USB3FTMF USB PORT/CABLE 005700-7R...
  • Page 94 15.5 Bench-Top Model, Sheet-Metal Exploded View ITEM PART # DESCRIPTION 005700-4R 5700 LID 005705-2R 5705 BACK 005700-1R 5700 FACE 005700-15R SIDE HANDLE BRACKET 005705-1R 5705 BASE 005700-5R ACCESS PANEL 005700-13R OBD PLATE 005700-14R OBD BRACKET 15-5...
  • Page 95 15.6 Bench-Top Model, Body Exploded View ITEM PART # DESCRIPTION 005705-2R 5705 BACK MUT-EXTPWR2-AS EXT POWER MILLED BULKHEAD 1/4" NPT FITTING 7900AP-26-AS HDL0011-AS2 5705 SIDE HANDLE BUZ-AS2 PIEZO 1” RECESSED FOOT W/ WASHER RFB0001 005705-13R OBD PLATE 005700-OBD2M OBD2 MALE CONNECTOR 005705-14R ODB BRACKET 7900AP-26-AS...
  • Page 96 15.7 Bench-Top Model, Base Exploded View ITEM PART # DESCRIPTION CBL-USB3FTMF USB PORT/CABLE 005705-1R 5705 BASE 7900K-13A CHASSIS GROUND JACK 7900K-8Z 7 WAY ROUND MUT-AIROUT-AS BULKHEAD ASSEMBLY SERIAL TAG UNIT SERIAL NUMBER 005700-5R ACCESS PANEL MUT-SOLX-AS 2 WAY SOLENOID 15-7...
  • Page 97 15.8 Alpha MUTT Faceplate Exploded View ® ITEM PART # DESCRIPTION 7900K-11 3 WAY SWITCH MUT-PRES-AS PRESSURE GAUGE 7900K-18A FUSE HOLDER CAP 7900K-85 30 AMP FUSE 7900K-18 FUSE HOLDER TOGGLE SWITCH 7900K-2 ENCODER KNOB 7900K-2A ENCODER CAP 7900K-32 6-32 SCREW 5700-1R 5700 FACE PANEL CBL-USB3FCHG-AS...
  • Page 98 15.9 Alpha MUTT Circuit-Board Exploded View ® ITEM PART # DESCRIPTION 5700-RECPLT-AS MUTT BLE ANTENNA PORT BUZ-AS2 AUXILIARY WIRING HARNESS PORT 5700-HRNSPLC PLC MODULE #K005700A-MOD-AS PORT 007900K-35ANT RF ANTENNA PORT GROUNDING POINTS FOR EXTERNAL COMPONENTS 5700-7WAY-AS 7-WAY SOCKET PORT 15-9...
  • Page 99 15.10 Alpha MUTT Lid Exploded View ® ITEM PART # DESCRIPTION 9008-8 RUBBER STRAP 005700-4R 5700 FACE SHIELD 005700-4 GAS PISTONS TABLET CRADLE* TABLET* *Tablet and Cradle are unit specific. For replacement part numbers, see included accessories list in Part 1 of this binder. 15-10...
  • Page 100 Part 16: Schematics and Wiring Diagrams...
  • Page 101 PART 16: SCHEMATICS AND WIRING DIAGRAMS 16.1 External Power Assembly DESC.: 5700 External Power Assembly PART #: 5700-EXTPWR-AS REV: A.01 Date: 4/25/2018 16.2 PLC Harness * Each wire is terminated with MOL-00002 DESC.: PLC Harness PART #: 5700-HRNSPLC REV: A.02 Date: 5/16/2018 16-1...
  • Page 102 16.3 Internal Power Harness DESC.: 5700 Internal Power Harness PART #: 5700-INTPWR-AS REV: A.02 Date: 5/02/2018 16.4 Buzzer Assembly DESC.: 5700 Buzzer Assembly PART #: BUZ-AS2 REV: A.04 Date: 4/20/2018 16-2...
  • Page 103 16.5 USB Charger Port DESC.: 5700 USB Charge Port PART #: CBL-USB3FCHG-AS REV: A.02 Date: 4/24/2018 16.6 7-Way Harness with Connector DESC.: 7 Way Harness w/ Connector PART #: 5700-7WAY-AS REV: A.02 Date: 4/24/2018 16-3...
  • Page 104 16.7 Internal Battery Charger Cable * Both green wires crimped in QC0001 *Cable stripped back 1.5” from cut end DESC.: 5700 Internal Battery Charger Cable PART #: 5700-CHGCORD-AS REV: A.02 Date: 6/06/2018 16.8 12v Socket Jumper DESC.: 5700 USB Charge Port PART #: CBL-USB3FCHG-AS REV: A.02 Date: 4/24/2018...
  • Page 105 16.9 Typical Trailer Wiring The standard wirings pictured below are viewed from both the front of the socket and the plug. Not all trailers/vehicles are wired to these standards. The use of an electrical circuit tester is necessary to ensure proper match of vehicle’s wiring to trailer’s wiring. On some trailers with 6-way round plugs, the 12V wire and electric brake wire may be reversed (particularly horse trailers).

This manual is also suitable for:

Alpha mutt 5700aAlpha mutt 5700a-rtAlpha mutt 5705Alpha mutt 5705aAlpha mutt 5705a-rt
