iPA SMART MUTT 9007M Operator's Manual

Mobile universal trailer tester a portable unit for commercial trailer lighting and abs
Hide thumbs Also See for SMART MUTT 9007M:
Table of Contents

Advertisement

Quick Links

#9007M
SMART MUTT
®
Mobile Universal Trailer Tester
OPERATOR'S MANUAL
MADE IN
U S A
A Portable Unit for Commercial Trailer Lighting and ABS
Innovative Products of America
Incorporated
®
888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART MUTT 9007M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iPA SMART MUTT 9007M

Summary of Contents for iPA SMART MUTT 9007M

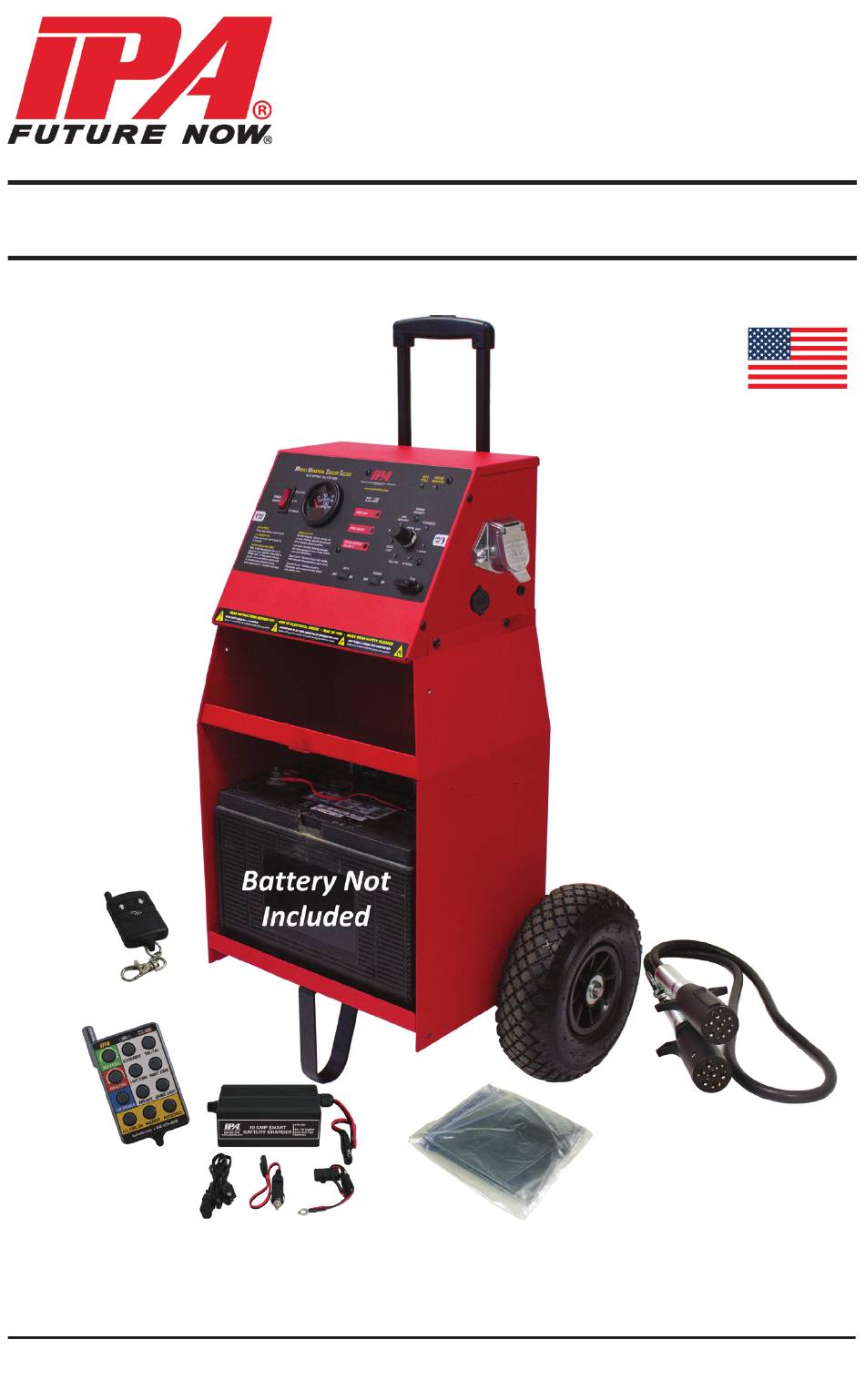

  • Page 1 #9007M SMART MUTT ® Mobile Universal Trailer Tester OPERATOR’S MANUAL MADE IN U S A A Portable Unit for Commercial Trailer Lighting and ABS Innovative Products of America Incorporated ® 888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com...
  • Page 2 888-786-7899. Your satisfaction is more important to me than the sale itself. We will not be in business for long if we don’t make you completely happy with our products and service. I want IPA to be different and be known ®...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PART 1: IMPORTANT SAFETY INSTRUCTIONS PART 2: WHAT’S INCLUDED PART 3: CONTROLS AND PANELS 3.1 Left and Right Side Panels 3.2 Electrical Control Panel PART 4: SETUP 4.1 Choosing a Battery 4.2 Axle and Wheel Installation PART 5: PRETESTING CHECKLIST 5.1 Cable Testing Procedure PART 6: GENERAL CONTROLS &...

  • Page 4: Part 1: Important Safety Instructions

    PART 1: IMPORTANT SAFETY INSTRUCTIONS IT IS IMPORTANT TO READ, UNDERSTAND AND FOLLOW ALL SAFETY MESSAGES AND INSTRUCTIONS PRINTED IN THIS MANUAL AND ON THE EQUIPMENT BEFORE OPERATING. IF SAFETY INFORMATION IS NOT HEEDED, SERIOUS INJURY OR DEATH TO THE OPERATOR OR BYSTANDERS MAY OCCUR. DANGER Indicates a hazardous situation, if not avoided, will result in death or serious injury.
  • Page 5 BATTERY GASES, TESTER PREPARATION AND TESTER/CHARGER LOCATION RISK OF EXPLOSION • Gases produced by a battery are highly explosive. • Wear safety goggles and protective clothing, both users and bystanders. • Use in an area having at least four air changes per hour. •...
  • Page 6 GENERAL CHARGER USE RISK OF ELECTRIC SHOCK AND FIRE • Before connecting charger to unit, make sure controls are set to OFF. DO NOT • Do not remove or bypass the grounding pin. Plug Directly Into • Do not operate charger with damaged cord or plug. AC Wall Outlet Replace cord or plug immediately if damage occurs.

  • Page 7: Part 2: What's Included

    PART 2: WHAT’S INCLUDED Handle Power Electrical Switch Testing Panel Ammeter Control Knob Warning 7 Round Pin Indicators Cable Output Mute Chassis Switch Ground Input Hazard 12V Battery Switch Charge Input Fuse Switch Pneumatic Wheels Foot INCLUDED PARTS AND ACCESSORIES: REMOTE CONTROL FOB 5 FT.

  • Page 8: Part 3: Controls And Panels

    PART 3: CONTROLS AND PANELS An overview of the MUTT’s controls, inputs, outputs and their functions. 3.1 LEFT AND RIGHT SIDE PANELS Left Side Right Side A. 7 ROUND PIN CABLE TEST INPUT For testing the integrity of a 7 round pin trailer cable. Can also be used to verify that the MUTT is operating correctly.

  • Page 9: Electrical Control Panel

    3.2 ELECTRICAL CONTROL PANEL Electrical Control Panel A. POWER SOURCE SWITCH Select between Internal Battery, External Power or Power Off. Center: OFF (battery charge in this position only) Installed Battery ON Down: External Power ON (power supply is an optional accessory) B.

  • Page 10: Part 4: Setup

    PART 4: SETUP 4.1 CHOOSING A BATTERY The MUTT is a 12/24V DC device. Attempting to power ® DC POWER your MUTT with anything other than a 12 or 24 Volt DC ® Do not plug directly into power source will destroy the internal circuitry and void your AC wall outlet warranty.

  • Page 11: Axle And Wheel Installation

    4.2 AXLE AND WHEEL INSTALLATION • Insert axle (A) into left and right axle bores (B) at rear underside of the MUTT ® • Slide one spacer (C) onto each side of the axle (A). • Install one wheel (D) onto each side of the axle (A) with valve stem facing away from the MUTT ®...

  • Page 12: Part 5: Pretesting Checklist

    PART 5: PRETESTING CHECKLIST The pretesting checklist should always be completed prior to using the MUTT UNIT PLACEMENT • Place the tester on a flat, level surface. • Chock trailer wheels to avoid rolling. MAINTAIN CONNECTORS Dielectric grease should be used on all connections to avoid corrosion. If a bad connection exists at the terminal junction, you may get an erroneous reading and the MUTT will not work properly.

  • Page 13: Part 6: General Controls & Operation

    PART 6: GENERAL CONTROLS AND OPERATIONS 6.1 INITIAL STARTUP AND SHUTDOWN All functions of the MUTT require the Power Source Switch to be in BATTERY or EXTERNAL position. POWERING UP 1. Push the Power Source Switch to BATTERY or EXTERNAL. AMPERES Set Power Source to BATTERY or EXTERNAL POWERING DOWN...

  • Page 14: Auto Shutdown Feature

    6.2 AUTO SHUTDOWN FEATURE If left inactive for a period of 20 minutes, the MUTT enters a Sleep Mode and powers down. • A sound is emitted every 20 seconds during Sleep Mode. • Activation of the control knob will cancel Sleep Mode. 6.3 USING THE 3-BUTTON REMOTE CONTROL The included remote control(s) is preprogrammed to your MUTT and should never lose its programming.

  • Page 15: Part 7: Electrical/Lighting Testing

    PART 7: ELECTRICAL/LIGHTING TESTING Complete the pretesting checklist prior to all testing procedures. The MUTT is microprocessor controlled and features a special diagnostic firmware, designed to seamlessly integrate with your preferred methods of testing. The MUTT will power the selected electrical circuits and instantly alert you to any signs of a faulty condition.

  • Page 16: Ground Integrity Test

    7.2 GROUND INTEGRITY TEST Each time the MUTT is powered on, it automatically runs a Ground Integrity Test. A good ground connection must be established for the MUTT to operate a trailer’s electrical system. 1. Immediately after power up, the green lights around the control knob will illuminate. 2.

  • Page 17: Fault Indication

    7.3 FAULT INDICATION OPEN CIRCUIT The MUTT senses no load which is often the symptom of a disconnected wire, cut wire, poor pin connection or bad return ground. The MUTT can detect open circuits in two ways. 1. During Ground Integrity Test: An individual circuit will blink and no audible alerts will be present.

  • Page 18: Short/Overloaded Circuit

    NOTE: In some cases, a crossed circuit may be a normal function of advanced diagnostic testing, such as with certain ABS systems. SHORT/OVERLOADED CIRCUIT Short circuits or overloads can occur when a positive, hot wire touches ground. They can also occur due to faulty lights or connectors. 1.

  • Page 19: Activating Hazard Lights

    7.4 ACTIVATING HAZARD LIGHTS: The four-way flashers on the vehicle can be activated manually or with the remote control. Manually 1. To activate, set the Hazard Switch to the ON position. Set the Hazard Switch to the ON Position 2. To deactivate, set the Hazard Switch to the OFF position. Set the Hazard Switch to the OFF Position Remote Control 1.

  • Page 20: All Circuits On (Override) Mode

    7.5 ALL CIRCUITS ON (OVERRIDE) MODE: All Circuits On Mode will engage all electrical circuits at the same time. While short circuit sensing is operational in this mode, if a short circuit is found, the MUTT will not be able to identify which circuit is the cause of the short. Open and crossed circuits sensing is not operational in this mode.

  • Page 21: Part 8: Abs Blink Code Diagnostics

    PART 8: ABS BLINK CODE DIAGNOSTICS The MUTT can be used to access ABS Blink Codes on trailers equipped with ABS systems. Trailers equipped with ABS feature an ABS Control Unit (ECU) which detects any electrical fault in the trailer ABS. Most trailers with ABS will also have a dedicated ABS lamp on the driver side.

  • Page 22: Meritor/Wabco Blink Codes

    8.1 MERITOR/WABCO BLINK CODES To access Meritor/WABCO blink codes, you must select the Auxiliary Circuit to power ON/OFF/ON in one second intervals using the following directions: 1. Make sure trailer is stationary and wheels are properly chocked. 2. On the MUTT, turn the control knob to the Auxiliary Circuit. Pause one second. 4.

  • Page 23: Haldex Blink Codes

    8.2 HALDEX BLINK CODES To access Haldex Blink Codes, you must select the Brake Light Circuit and press the control knob to cycle the Auxiliary Circuit the appropriate number of times using the following directions: See table below for modes and sequences: Mode Description Ignition Cycles (Hold 1 Second ON/OFF)
  • Page 24 Fault Explanation Possible Causes Select Select Code System OK (with vehicle traveling ABS is operational Displays “00” > 6 mph) when traveling > 6 MPH Indicates a wheel speed sensor or its Red channel wheel speed sensor wiring S1A has an Open or Short wiring has short or open circuit.
  • Page 25 Fault Explanation Possible Causes Select Select Code Loose sensor, connection , Red channel wheel speed bracket or exciter, damaged sensor S1A has an erratic exciter, sensor is not prop- output voltage. erly adjusted or has worn cable Red channel wheel speed insulation, or worn sensor block sensor S1B has an erratic clip, wheel bearing failure,...
  • Page 26 Fault Explanation Possible Causes Select Select Code For a 2M System, verify sensor and valve Slow wheel recovery on Red valve wiring/plumbing is correct. (See Side-By- channel. Side and Axle-By-Axle configurations). Slow brake release, foundation brake Slow wheel recovery on Blue valve mechanical faults, dry bushings, broken channel.
  • Page 27 Fault Explanation Possible Causes Select Select Code Output leakage or poor insulation on any of the valve channels. Hold solenoid short circuit to Permanent Power on Red valve channel. Modulator valve solenoid failure or valve cable damage. Indicates that Hold solenoid short circuit to Permanent the solenoid or its cable has a short Power on Blue valve channel.

  • Page 28: Bendix Blink Codes

    8.3 BENDIX BLINK CODES To access Bendix Blink Codes you must select the Auxiliary Circuit and press the control knob to cycle the Brake Light Circuit the appropriate number of times using the following directions: See table below for modes and sequences: Mode Cycle Brake Light Power Display Active DTCs...
  • Page 29 SAL Sensor configuration error Verify correct ABS configuration using blink codes or other diagnostic tools. SAR Sensor configuration error If needed, reset to the default ABS configuration and power-up to initiate auto-configuration. POWER Over-voltage Power supply diagnostic trouble code. Go to Section F, page 28. Low-voltage Power supply diagnostic trouble code.
  • Page 30 ELECTRONIC CONTROL UNIT (ECU) ECU internal error Check for damaged or corroded connectors. Check for damaged wiring After repairs or if no issues found, then clear faults. If faults return, replace the TABS-6 Module. ECU configuration error Verify correct ABS configuration using blink codes, PC-diagnostics or other off-board diagnostic tools.

  • Page 31: Part 9: Typical Trailer Wiring

    PART 9: TYPICAL TRAILER WIRING Note: Not all trailers/vehicles are wired to this standard. The use of an electrical circuit tester is necessary to ensure proper match of vehicle’s wiring to trailer’s wiring. On some trailers with 6-way round plugs, the 12V wire and electric brake wire may be reversed (particularly horse trailers).

  • Page 32: Part 10: Maintenance And Storage

    PART 10: MAINTENANCE AND STORAGE • Switch power to OFF, remove all power cables, and disconnect battery before storing and cleaning. • Wipe surfaces down with a well-wrung, soft, damp cloth. • Diluted dishwashing liquid or similar substance can be used in the dampened cloth if necessary.

  • Page 33: Part 12: Optional Accessories And Related Products

    PART 12: OPTIONAL ACCESSORIES AND RELATED PRODUCTS SUPER MUTT DELUXE #9008-DL: (1) 12-Button Remote, (2) 3-Buttom ® Remote, Face Shield, 7-Way Cable, 8 ft. Glad Hands, Battery Charger, Rain Cover. MINI MUTT #9003A: (RV Style) 7 Spade, Analog Version ® SMART MUTT #9004A: (RV Style) 7 Spade ®...
  • Page 34 SERIAL # Locate your serial number on the unit and record it above. Please be sure to send in your warranty card. NOTES...
  • Page 35 NOTES...
  • Page 36 Innovative Products of America ® Incorporated will repair or replace the product within 24 working hours after it is received by the IPA Repair Service Center. In the event it is determined that the ®...
