Mobile Universal Trailer Tester
HEAVY RANGER MUTT
#9102
®
OPERATOR'S MANUAL
Tests 7 Round Pin Connections.
Uses Internal 12 Volt Motorcycle Battery.
(Battery Not Included)
Innovative Products of America
Incorporated
®
888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com
© 2018 Innovative Products of America
Incorporated. All rights reserved. This material may not be reproduced, displayed, modified
®
or distributed without the express prior written permission of the copyright holder. For permission, contact info@ipatools.com.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iPA HEAVY RANGER MUTT 9102
Summary of Contents for iPA HEAVY RANGER MUTT 9102
- Page 1 Mobile Universal Trailer Tester HEAVY RANGER MUTT #9102 ® OPERATOR’S MANUAL Tests 7 Round Pin Connections. Uses Internal 12 Volt Motorcycle Battery. (Battery Not Included) Innovative Products of America Incorporated ® 888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com ©...
- Page 2 LETTER FROM THE PRESIDENT OF IPA ® My name is Peter Vinci and I am the president of IPA . I would first like to thank you for ® your interest in IPA ’s product line and take this opportunity to share my commitment ®...
-
Page 3: Important Safety Instructions

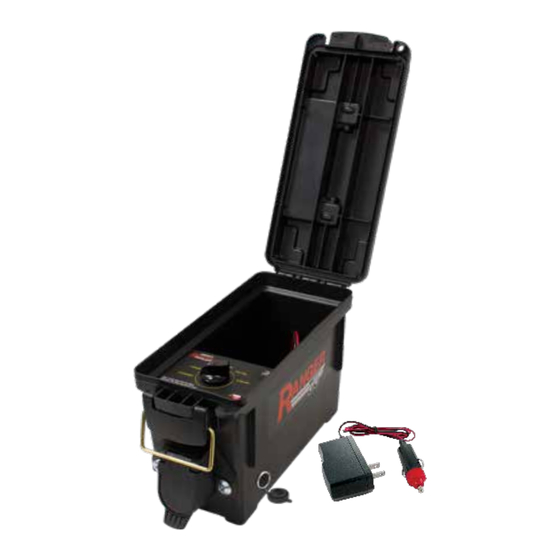

#9102 HEAVY RANGER MUTT PARTS ® Fig. 1 - Parts Diagram Rubber Gasket 500mA Battery Charger Battery Compartment #CHR0001 Enclosure Battery Leads Control Knob Rotary Switch Switch Plate Illuminated Power Switch Lid Lock Padlock Hole 7 Round Socket 12V Cigarette Socket USE THE REFERENCE NUMBERS PROVIDED WHEN ORDERING PRODUCTS AND PARTS ABOVE Toll Free: 888-786-7899... - Page 4 THE FOLLOWING SAFETY ALERT SYMBOLS ARE USED IN THIS MANUAL. SYMBOL 1: Potential burn hazard. Sparks from electrical shorts can ignite flammable liquids such as fuel or oil. Heat from electrical overloads can cause fire hazards. SYMBOL 2: Potential electrical hazard. Batteries have enough electrical energy potential to ignite flammable liquids such as fuel or oil.
-
Page 5: Charger Warnings
• Make sure tester cable clamps make tight connections. • Battery explosion can cause injury. ACID BURNS • Battery acid is highly corrosive sulfuric acid. • Wear safety goggles, both user and bystanders. • Wear safety gloves. • Make sure someone can hear you or is close enough to provide aid when working near battery. -
Page 6: Specifications
SPECIFICATIONS • Input: 12V DC Battery (Use Battery Compartment) • Output: 10A @ 12V DC • Overload Protection: Automatic Resetting (Internal) Breaker • Connection Type: 7 Round Pin • Control Type: Manual Rotary Switch • Materials: ABS • Weight: 2 lbs. (Without the Battery) •... -
Page 7: Functional Descriptions
WARNING: NEVER OPERATE TESTER WITH BATTERY VOLTAGE LESS THAN 11.5V. OPERATING ELECTRONIC DEVICES ON LOW VOLTAGE MAY SHORTEN LIFE OF DEVICE AND CAUSE DAMAGE TO INTERNAL COMPONENTS. IDEAL BATTERY VOLTAGE IS 12.0V DC TO 12.5V DC. SET-UP • Use the supplied battery charger or charger input no greater than 3 amps to fully charge the internal battery of the tester. - Page 8 OPERATING INSTRUCTIONS 7-WAY ROUND PIN TESTING PROCEDURE 1. Install a fully charged 12V DC battery into your Ranger MUTT ® 2. Plug the trailer’s 7-way round pin cable into the front of the Ranger MUTT . Be sure to ® push firmly until the flap locks in behind it.
-
Page 9: Troubleshooting
TROUBLESHOOTING The Ranger MUTT is an analog trailer tester designed to help confirm trailer wiring con- ® figuration, proper amperage draw, functioning lights, electric brake operation and proper ground connections. Keep in mind that many electrical problems are the direct result of a bad ground connection. - Page 10 MUTT PRODUCTS ® #9008-DL SUPER MUTT Pro Edition ® 12-Button Remote Control, (2) 3-Button Remote Controls, 5' 7-Way Cable, Chassis Ground Cable, External Battery Connector, 8' Glad Hands, 10A Battery Charger, Face/Battery Shield and Rain Cover BATTERY NOT INCLUDED #9008-SE Super MUTT Base Model 3-Button Remote Control, 5' 7-Way Cable, ®...
-
Page 11: Available Accessories
TOWING MAINTENANCE KITS #8026 4/5 Pin Towing #7866 4/5 Pin Trailer Maintenance Kit Harness Checker #8027 6 Round Pin #7897 6 Round Pin Tractor Towing Maintenance Kit Trailer Circuit Tester #8028 7 Flat (Spade) Pin #7893 7 Flat (Spade) Pin Towing Maintenance Kit Trailer Circuit Tester #8029 7 Round Pin... - Page 12 Innovative Products of America ® Incorporated will repair or replace the product within 24 working hours after it is received by the IPA Repair Service Center. If it is determined that the product has ®...
