Light Ranger MUTT
Round and 4/5-Pin Connections
#9102 Heavy Ranger MUTT
888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com
OPERATOR'S MANUAL
Tests 7-Way Flat (Spade), 6-Way
®
®
Innovative Products of America
Light/Heavy Ranger MUTT
M
U
obile
niversal
Includes Charger
Tests 7-Way Round Pin Connections
Incorporated
®
#9101/#9102
T
railer
#9102
®
T
ester
MADE IN
U S A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iPA LIGHT RANGER MUTT 9101
Summary of Contents for iPA LIGHT RANGER MUTT 9101
- Page 1 #9101/#9102 Light/Heavy Ranger MUTT ® obile niversal railer ester OPERATOR’S MANUAL MADE IN U S A #9101 #9102 Includes Charger & Includes Charger Adapter Uses Internal 12-Volt Motorcycle Battery (Battery Not Included) #9101 Light Ranger MUTT Tests 7-Way Flat (Spade), 6-Way ®...
-
Page 2: Important Safety Instructions

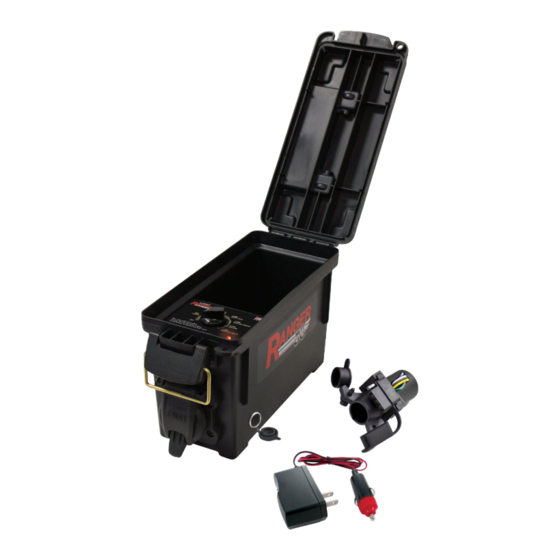

#9101 and #9102 Ranger MUTT PARTS ® Fig. 1 - Parts Diagram ACCESSORIES Rubber Gasket 3-Way Trailer Adapter #8000 (Included with #9101 only) Battery Compartment Enclosure 500mA Battery Charger #CHR0001 (Included with #9101 & #9102) Control Knob Battery Leads Switch Plate Rotary Switch Lid Lock Power LED... -
