  • Page 1 Quick Start Guide...

  • Page 2: Table Of Contents

    Contents List of items .......................... 1 Open the box and take out all the items ................2 Meet your xTool P2 ......................4 Preparations ......................... 5 Use xTool P2 ........................10...

  • Page 3: List Of Items

    List of items Smoke exhaust USB cable pipe xTool P2 Power cable (Type-C) components Corrugated paper Antifreeze Funnel Basswood 3 mm 3.5 mm Transparent acrylic Screwdriver Hex key Quick Start Guide Screw M3*6 Screw M3*22 Instructions (spare parts) (spare parts)

  • Page 4: Open The Box And Take Out All The Items

    Open the box and take out all the items 1. Open the lid and take all the items out 2. Unscrew the screw that fixes the baseplate 3. Take out the foam and acrylic sheets and put the baseplate back to the machine...
  • Page 5 4. Tighten the screw that fixes the baseplate...

  • Page 6: Meet Your Xtool P2

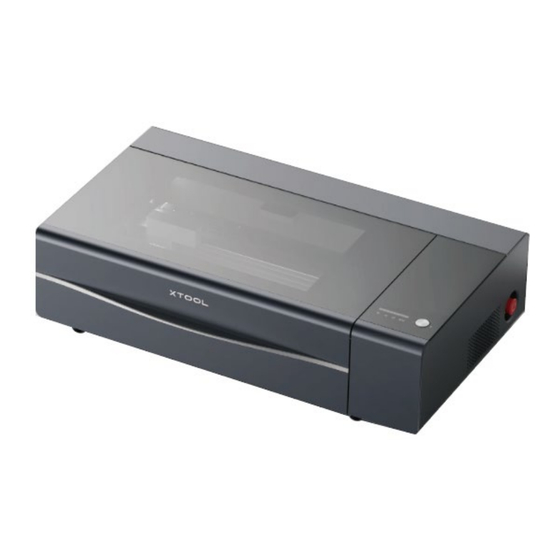

    Meet your xTool P2 1. Button 7. Power switch 2. Annular indicator 8. Power port 3. State display screen 9. Fire safety set port 4. Laser tube 10. Tube fitting 5. Water tank 11. Smoke outlet 6. Emergency stop switch...

  • Page 7: Preparations

    17. USB port (Type-C) 13. Close-view camera 14. Laser module 18. Slat 15. Extension port 19. Baseplate Preparations 1. Check the casing of the machine. If it is severely damaged, do not use the machine and contact xTool after-sales services.
  • Page 8 3. Manually move the laser module to check whether it can move properly. If it can't, do not use the machine and contact xTool after-sales services. 4. Check the laser tube. If it is cracked or damaged, do not use the machine and contact xTool after-sales services.
  • Page 9 (2) Check whether the laser tube is cracked or damaged 5. Fill the water tank with antifreeze You need to prepare a measuring glass to measure purified water. If you can't find a measuring glass at home, you can store the antifreeze in another container and use the bottle of the antifreeze to measure purified water.
  • Page 10 Do not pour the antifreeze directly into the water tank.  Determine the volume of antifreeze to be used according to the annual lowest temperature in your region first. Ensure that you use purified water to prepare the  antifreeze. Tap water contains impurities and bleach, which may cause too many bubbles, affecting the working of the laser tube and even damaging the laser tube.
  • Page 11 (4) Connect the machine to a power supply and turn on the machine (5) Complete the second filling Wait 30s for the water level to descend in the water tank, pour the required purified water in, and then close the cap of the water tank. Observe the water level during the filling to avoid overflow.

  • Page 12: Use Xtool P2

    6. Install the smoke exhaust pipe If you have purchased a smoke purifier, follow the instructions to connect it to xTool P2. Use xTool P2 1. Download and install xTool Creative Space (XCS)
  • Page 13 2. Connect xTool P2 to your computer and connect it to XCS You can start your creation after connecting them. For details about how to use XCS to operate xTool P2, see makeblock.com/cn/docs/xtool-...
