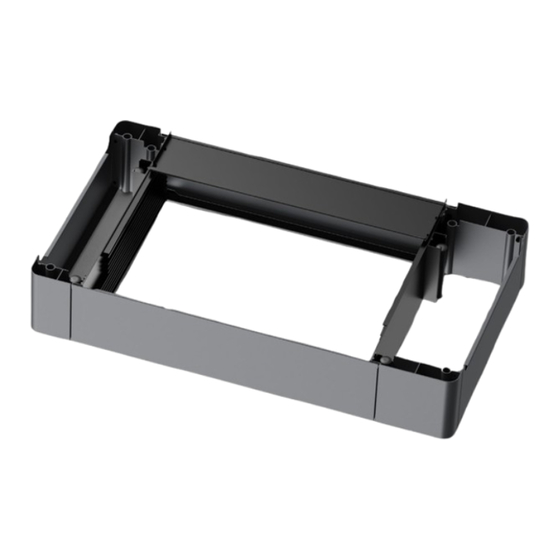

P2 Riser Base
User Manual
D1.2.4_KD010590000

Advertisement

loading
Need help?

Need help?

Do you have a question about the P2 Riser Base and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xtool P2 Riser Base

Summary of Contents for Xtool P2 Riser Base

  • Page 1 P2 Riser Base User Manual D1.2.4_KD010590000...
  • Page 2 ■ To process a material that is too long for xTool P2, you need to open the door panels of the riser base. Diffuse reflection of laser beams occurs, and your eyes may be exposed to the laser beams. Do not look at them directly through the doors of the riser base, or your eyes may get hurt.

  • Page 3: List Of Items

    List of items Assemble the riser base 1. Assemble the left structure Front door panel Rear door panel Left side panel Right side panel Rear cover panel Left side panel Left corner Left guide rail panel Right guide rail panel Left corner Right corner Support corner...
  • Page 4 2. Assemble the right structure Fixing plate B Right side panel Cylindrical head Push the corner toward the screw M3*6 side panel to fit them together. Right corner Right guide rail panel Support corner Reserve a spacing so that you Flat head can fit the fixing plate in.
  • Page 5 Reserve a spacing so that you can fit the fixing plates in. Flat head screw M4*8 3. Fit the door panels Front door panel Rear door panel Push the right structure toward the door The front door panel is slightly wider than the rear one. panels to fit them together.
  • Page 6 The riser base is designed with placing hands positions on the left and right sides for placing your hands. To place xTool P2, hold it on the sides instead of at the corners, so that your hands don’t get hurt. Position for...
  • Page 7 The riser base is designed with 9 placement levels to adapt to materials of multiple thicknesses. You need to determine the level at which the baseplate of xTool P2 is to be placed based on the processing mode used and the thickness of the material to be processed.

  • Page 8: After-Sales Services

    Process regular or irregular cylindrical materials To process a cylindrical material of a diameter greater than 42 mm, you need to use the riser base in combination with xTool Rotary xTool Rotary Attachment Attachment and use Laser cylindrical processing. You can determine is not included in the pack.
