- Page 1 F1 Ultra Quick Start Guide...
-
Page 2: Table Of Contents
Contents List of items Meet your xTool F1 Ultra Get the machine ready Install accessories Use your xTool F1 Ultra Maintenance... -
Page 3: List Of Items
List of items xTool F1 Ultra Touchscreen controller Pipe Power adapter Power cable USB cable Slatted panel Screwdriver L-shaped positioning piece Lint-free cloth Material pack Quick Start Guide Safety Instructions... -
Page 4: Meet Your Xtool F1 Ultra

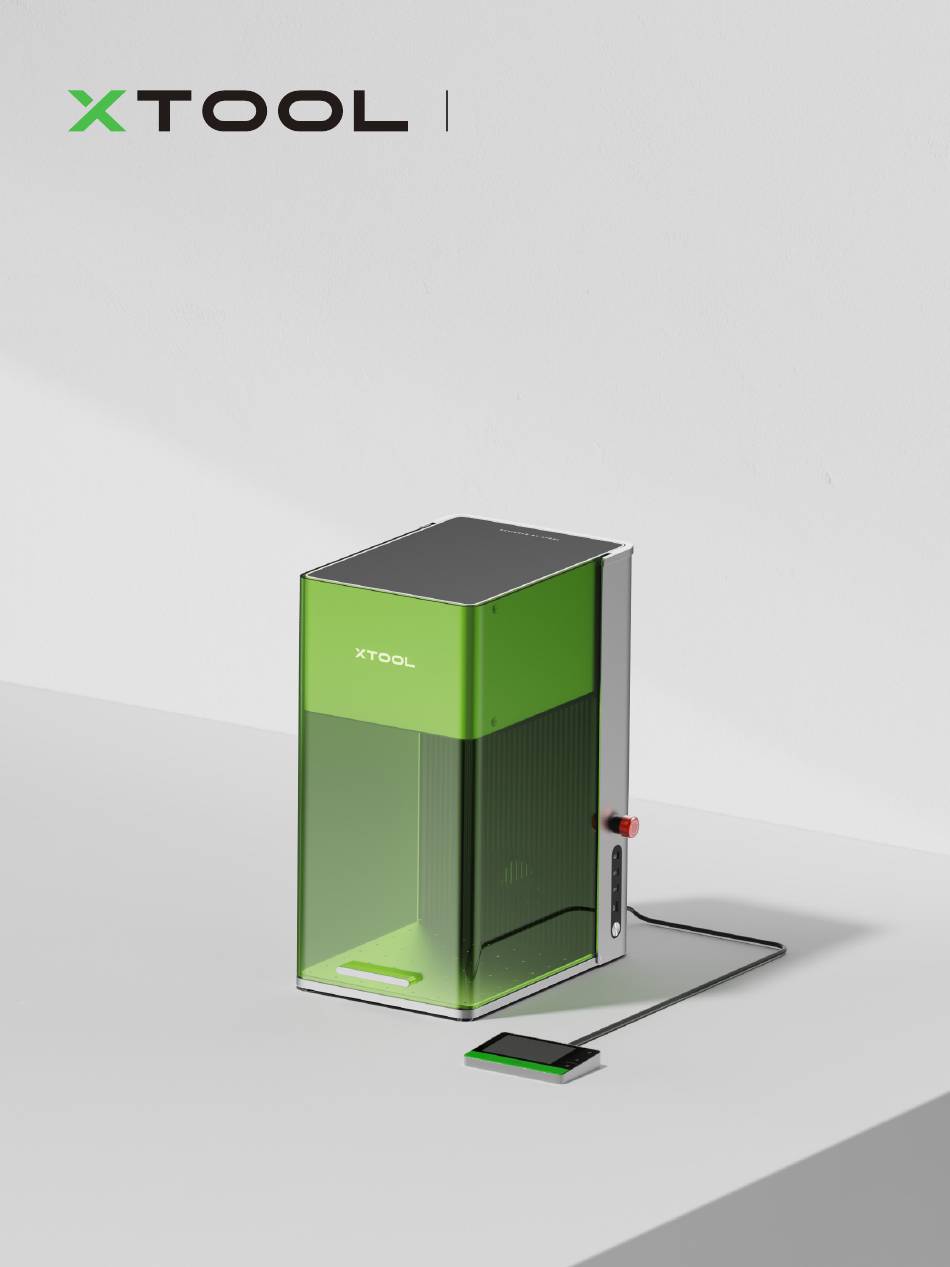

Meet your xTool F1 Ultra Product structure Protective enclosure Field lens protector Logo indicator Baseplate Camera Emergency stop switch USB port (Type-C) Extension port Port for USB flash drive Power switch Smoke outlet Power port Tube fitting for the Touchscreen controller port fire safety set... - Page 5 Laser Notice No. 56, dated May 8, 2019. Made in China Specifications Product name Input power xTool F1 Ultra 24 V 10 A, 240 W 455 nm blue-light laser Size 493 mm × 253 mm × 373 mm Laser module 1064 nm fiber infrared laser...
-
Page 6: Get The Machine Ready
Get the machine ready Pull down the field lens protector to remove it. If you won't use the machine for a long period of time, you can install the protector back to prevent the field lens from getting dusty. Ensure that the protector is removed every time before you use the machine. - Page 7 Install the pipe. Connect the touchscreen controller. To insert the connector, ensure that the notch at the end faces up. Connect to a power supply.
-
Page 8: Install Accessories
Install accessories Use the slatted panel To cut a material, you are advised to use the slatted panel. It can reduce the areas burned during material processing and protect the baseplate. Use the L-shaped positioning piece During batch processing, the L-shaped positioning piece can help you place a material in the same position every time. -
Page 9: Use Your Xtool F1 Ultra
Use your xTool F1 Ultra Power on and set up language Press the power switch to turn on xTool F1 Ultra and set the UI language of the touchscreen controller. - Page 10 Use software to operate xTool F1 Ultra For computers (1) Visit xtool.com/software to download and install xTool Creative Space (XCS). xTool Creative Space xtool.com/software (2) Use the USB cable to connect xTool F1 Ultra to the computer, and then connect xTool F1 Ultra in the software.
- Page 11 Follow the online instructions for the App to connect xTool F1 Ultra on the App. For details about how to use XCS to operate xTool F1 Ultra to process materials, scan the QR code or visit support.xtool.com/product/33.
-
Page 12: Maintenance
Maintenance ■ If laser power attenuation occurs, for example, engraved patterns are shallow or materials can't be cut as expected, the field lens may get dirty. Clean it with the lint-free cloth moistened with alcohol. Field lens ■ If smoke runs out of the protective enclosure, the fan and smoke outlet may be blocked due to dust. Clean them to ensure proper smoke exhausting.
