- Page 1 此页不印刷 xTool_M2_用户手册_多语言_V1.0_D1.1.6 料号： KD010767000 成品尺寸： 210*280mm 展开尺寸： 420*280mm 材质： 封面250g铜版纸， 内页100g铜版纸 工艺： 封面覆哑膜， 双面CMYK印刷， 胶装...
- Page 2 User Manual Benutzerhandbuch Manual de Usuario Manuel d'utilisation Manuale utente Manual do Usuário 取扱説明書 사용자�매뉴얼 用戶手冊 用户手册 Gebruikershandleiding D1.1.6_KD010767000...
- Page 3 Statement support.xtool.com/article/1291 Tutoriel vidéo: support.xtool.com/article/1291 視頻教程: Safety first (important) support.xtool.com/article/1291 Video tutorial: support.xtool.com/article/1291 List of items Meet your xTool M2 Preparations Use xTool M2 Indicator description Maintenance FAQs Declaration of conformity FCC statement FCC Radiation Exposure Statement After-sales services 视频教程:...
- Page 4 6. Warning and instruction signs material to be cut or engraved, so as to heat up the material surface On xTool M2, the warning and instruction signs are labeled where and vaporize the material without burning. But most materials are physical injuries or damage to the machine may be caused before inherently flammable and may be ignited to form an open flame...
- Page 5 × 8 × 2 Cutting mat (LightGrip) Cutting mat (FabricGrip) Filter × 2 Grease Material pack Lens mount (spare part) xTool M2 Lens mount rotating piece Screwdriver User manual Laser module Smoke exhaust module USB cable × 8 Fine-point pen...

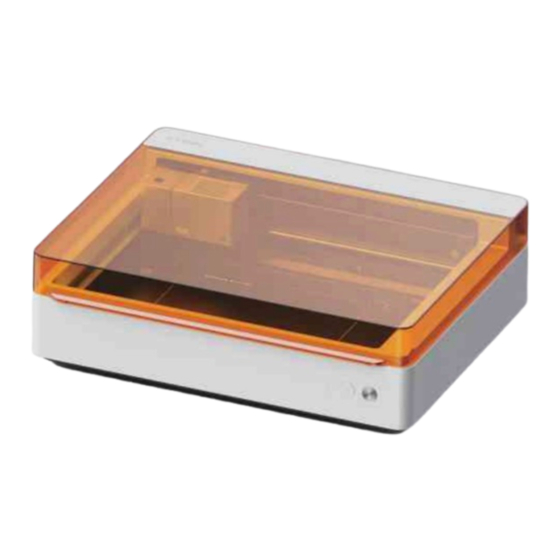

- Page 6 Meet your xTool M2 Basic carriage Start/Stop button Power port Multi-function carriage Rotary Attachment port Port for the key Extension port × 4 Wi-Fi antenna Thumb screw for the baseplate Camera viewfinder point Tube fitting for the air assist set...
- Page 7 Preparations Press the laser module down until you hear a click. Do not use the smoke exhaust module without the filter. Or it may absorb smoke and dust and get damaged.
- Page 8 Search for xTool Creative Space in the App store or scan the following QR code to download the App. Turn on xTool M2, connect it to a device, and then connect it on XCS. Connect device...
- Page 9 To know more details, scan the following QR code. support@xtool.com Use xTool M2 For laser cutting × 10 × 4 Determine the number of the triangular prisms based on the material to be processed. Fit the other two triangular prism...
- Page 10 For blade cutting or combination of laser processing and blade cutting Note: For paper materials such as cardboard and kraft paper, use the LightGrip cutting mat; and for fabric materials such as cloth, use the FrabicGrip cutting mat. Do not use any cutting mat when cutting a material with laser beams. Cutting mat Color Blue...
- Page 11 Caution! Sharp blade For pen drawing...
- Page 12 Select accessories according to the processing needs. For more functions If the kit you've purchased does not include the multi-function carriage and its accessories, you can purchase them separately. Caution! Sharp blade Ensure that the sign faces you when fitting the cutting blade.
- Page 13 Indicator description Indicator status Buzzer status Device status Solid white Standby, not connected to XCS Solid purple Sounding once Standby, connected to XCS Breathing white Sleeping, not connected to XCS Breathing purple Sleeping, connected to XCS Blinking purple slowly Network setting / Firmware updating Processing area marking on XCS / Solid green Framing / Processing...
- Page 14 Maintenance Replace the filter Do not use the filter if it is moistened. Replace the lens mount Clean the probe The probe may get dirty after a long period of laser processing. Clean it in a timely manner, or the focusing accuracy may be reduced.
- Page 15 Warning: Changes or modifications not expressly approved Solutions: by the party responsible for compliance could void the (1) Turn off xTool M2 and remove the smoke exhaust user's authority to operate the equipment. module. (2) Replace the filter.
