Summary of Contents for Xtool F1
- Page 1 Quick Start Guide...
-
Page 2: Table Of Contents
Contents List of items Meet your xTool F1 Get the machine ready Use your xTool F1 More operations Use xTool F1 with the rotary attachment Maintenance * The English version is the original instructions verified by the manufacturer. -
Page 3: List Of Items
List of items xTool F1 Pipe Power adapter Power cable USB cable Slatted panel L-shaped positioning piece Lint-free cloth Key (spare part) Grease Material pack Quick Start Guide Safety Instructions... -
Page 4: Product Structure

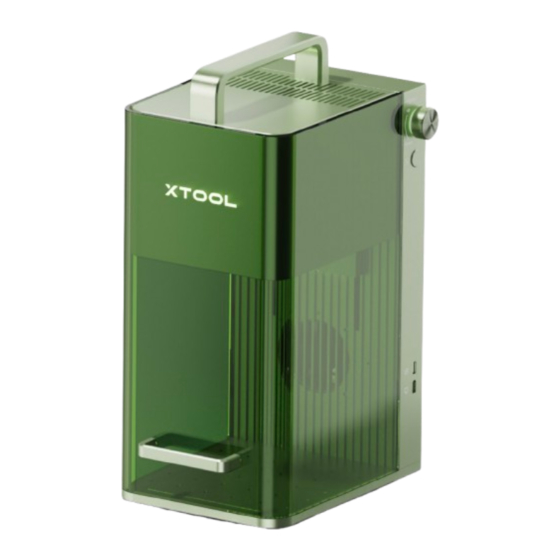

Meet your xTool F1 Product structure Protective enclosure Emergency stop button Logo indicator Field lens Field lens protector Smoke outlet Removable baseplate Knob Framing button Smoke outlet Extension port USB port Smoke purifier port Power switch Reserved port Power port... -
Page 5: Indicator Description
Notice No. 56, dated May 8, 2019. No. 1001 Xueyuan Avenue, Nanshan District, Shenzhen, Guangdong Province, 518000, China Specifications Product name xTool F1 Connection mode Wi-Fi, USB cable, hotspot Size 179 mm × 235 mm × 334 mm Input power... -
Page 6: Get The Machine Ready
Get the machine ready Install the pipe. If you need a desktop smoke purifier, purchase one and connect it to xTool F1 as instructed by the user manual. Connect to a power supply. Ensure that the emergency stop button is released. If it is pressed, rotate to release it. - Page 7 Access-control key You can remove the key to disable the processing and related functions of the machine. Interlock connector You can also use the key as an interlock connector. support.xtool.com/article/1367 Go to to learn more. support.xtool.com/article/1367 Remove the field lens protector.
-
Page 8: Use Your Xtool F1
Use your xTool F1 Power on Turn on the power switch of xTool F1. Do not use the emergency stop button as a power switch. Use the emergency stop button only when an emergency occurs. Using it as a power switch to turn on and off the machine may damage the machine. - Page 9 (2) Use the USB cable to connect xTool F1 to the computer, and then connect xTool F1 in the software. For mobile devices Scan the QR code or search for xTool Creative Space in Google Play or App Store, or visit xtool.com/software...
-
Page 10: More Operations
More operations Manual focus setting Turn the knob to adjust the height of the laser module. When the red and blue light spots overlap, the focus is successfully set. When the bottom of the laser module reaches the highest point, stop turning the knob up. - Page 11 Use the slatted panel To cut a material, you are advised to use the slatted panel. It can reduce the areas burned during material processing and protect the baseplate. Use the L-shaped positioning piece During batch processing, the L-shaped positioning piece can help you place a material in the same position every time.
-
Page 12: Use Xtool F1 With The Rotary Attachment
No rotary attachment is included in the pack. Strictly follow the safety instructions to use xTool F1 with the rotary attachment. Set up a safety-controlled area under the guidance of the Laser Safety Officer (LSO), and take sufficient personal protective measures against... - Page 13 There are three marking lines on the base of xTool F1. Depending on the working mode and level setting of your rotary attachment, align its front bottom edge to the corresponding marking line. Marking line 1 Marking line 2 Marking line 3...
- Page 14 For details about how to use xTool F1 with the rotary attachment, scan the QR code or visit support.xtool.com/article/1574.
-
Page 15: Maintenance
Maintenance Disconnect power before maintaining the product. ■ If laser power attenuation occurs, for example, engraved patterns are shallow or materials can't be cut as expected, the field lens may get dirty. Clean it with the lint-free cloth moistened with alcohol. ■... - Page 16 ■ If smoke runs out of the protective enclosure, the fan and smoke outlet may be blocked due to dust. Clean them to ensure proper smoke exhausting. To avoid dust falling into the circuit board, slightly tilt the machine.
- Page 17 D1.1.2_KD010957000...
