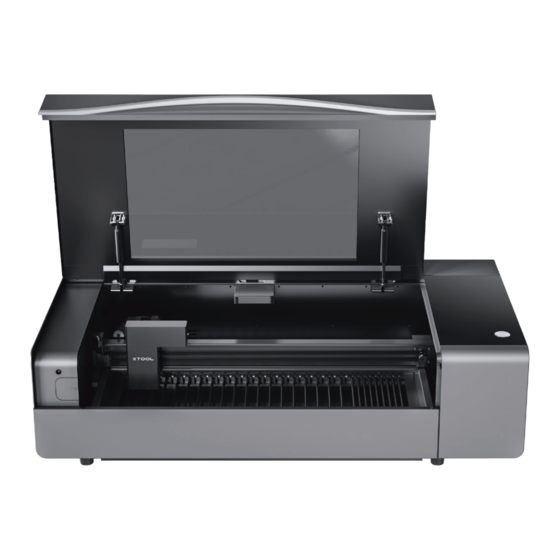

Xtool P2 User Manual

Conveyor feeder
Hide thumbs Also See for P2:

Advertisement

Table of Contents

User Guide for xTool P2 Conveyor Feeder
Note:
Accessories do not come with the machine and need to be purchased separately.
Overview
xTool conveyor feeder is designed for xTool laser processing machines to feed
materials in conveying mode, allowing the machines to process materials that are too
long for them. With xTool conveyor feeder, you can create larger and cool works.
Specification
Applicable to
xTool P2
List of items
Conveyor feeder
Conveyor rail riser
Maximum material
length supported
3 m
Conveyor rail
Conveyor rail riser block
Maximum material
thickness supported
14 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2 and is the answer not in the manual?

Questions and answers

Related Manuals for Xtool P2

Summary of Contents for Xtool P2

  • Page 1 With xTool conveyor feeder, you can create larger and cool works. Specification...
  • Page 2 Motor cable clamp Level adapter Material pressing rod Cable tie Screw M4*20 Cable tie holder Screw M3*8 Screw M4*12 User manual Hex key Meet your conveyor feeder...
  • Page 3 Tips: It is recommended that you read Appendix 1 - Tips for using the product before using the product. For materials of thickness 0＜H ≤ 8 mm 1. Press and open the front and rear door panels of xTool P2.
  • Page 4 2. Place the baseplate of xTool P2 at level 2a to help assemble the conveyor feeder. Tips: DO NOT put the baseplate into xTool P2 totally. You need to keep a distance of 10cm from the left front corner of the riser base.
  • Page 5 3. Prepare the screws M4*20. Place the conveyor feeder on the baseplate of xTool P2. Tighten screw A first, but do not tighten it fully. 4. Tighten screw B.
  • Page 6 5. Tighten screw A fully. 6. Put the conveyor rail riser block to the bottom of the conveyor rail riser and tighten the screw clockwise.
  • Page 7 7. Turn over the conveyor rail. 8. Place the conveyor rail riser on the rear part (on the fourth section of the conveyor rail) conveyor rail.
  • Page 8 9. Determine the position of the riser on the conveyor rail and tighten the screw on the riser. 10. Fit the other rail risers and their blocks on the other two conveyor rails in the same way. 11. Put two conveyor rails into the groove of the conveyor feeder.
  • Page 9 12. Slide the conveyor rails left and right according to the width of the material to be processed. 13. Determine the position of the conveyor rails and tighten four screws (M4*12) to the conveyor feeder.
  • Page 10 14. Peel off the tape to stick the cable tie holder on the back of xTool P2 (right side of the smoke exhaust pipe).
  • Page 11 15. Insert the cable tie into the cable tie holder. 16. Arrange the smoke exhaust pipe with the cable tie holder, and make it not block the conveyor rails.
  • Page 12 17. Fit the other two conveyor rails on the other side of the conveyor feeder. Note: Fit the conveyor rails with marks on this side, or they may be damaged due to the incorrect position. Tips: Ensure that the width between the rails is the same on both the left and right sides of the conveyor feeder.
  • Page 13 18. Assembly completed! For materials of thickness 8 ≤ H ≤ 14 mm 1. Press and open the front and the rear door panel of xTool P2.
  • Page 14 2. Place the baseplate of xTool P2 at level 2a to help assemble the conveyor feeder. Tips: DO NOT put the baseplate into xTool P2 totally. You need to keep a distance of 10cm from the left front corner of the riser base.
  • Page 15 3. Assemble the level adapter and screws on the conveyor feeder and tighten the screws clockwise. Put the screw on the first and third holes (count from the left) of the level adapter. 4. Prepare the screw M4*20.
  • Page 16 Place the conveyor feeder on the baseplate of xTool P2. Tighten screw A first, but do not tighten it fully. 5. Tighten screw B. 6. Tighten screw A fully.
  • Page 17 7. Turn over the conveyor rail. 8. Put the conveyor rail riser on the rear of the conveyor rail. (on the fourth section of the conveyor rail)
  • Page 18 9. Make sure the position of the conveyor rail riser and put it on the conveyor rail, then tighten the screw clockwise. 10. Fit the other rail risers on the other two conveyor rails in the same way.
  • Page 19 11. Find the groove in the conveyor feeder and insert two conveyor rails into it. 12. Move the conveyor rails left and right according to the width of materials.
  • Page 20 13. Tighten the conveyor rails to the conveyor feeder with four screws.
  • Page 21 14. Peel off the tape of the cable tie holder and stick to the back of xTool P2. (right side of the smoke exhaust pipe)
  • Page 22 15. Insert the cable tie to the cable tie holder. 16. Arrange the smoke exhaust pipe and make it not block the conveyor rail.
  • Page 23 17. Fit the other two conveyor rails on the other side of the conveyor feeder. Note: Fit the conveyor rails with marks on this side, or they may be damaged due to the incorrect position. Tips: Ensure that the width between the rails is the same on both the left and right sides of the conveyor feeder.
  • Page 24 18. The assembly of the conveyor feeder completed! Use the conveyor feeder 1. Connect the conveyor feeder to your device. Peel off the tape from the back of the cable clamp. Stick the cable clamp on the top of the right guide rail panel (at a distance of 10 cm from the motor cable port).
  • Page 25 Arrange the motor cable around the cable clamp and make it not block the conveyor rails. Then connect the motor cable to the port. 2. Place a material Turn the upper knob anticlockwise to raise the pinch rollers and place a material in.
  • Page 26 Put the material to be processed in the conveyor feeder. Tips: Align the material with the grids on the conveyor feeder and convey the material to the device, so that the material is parallel to the conveying direction.
  • Page 27 Turn the upper knob clockwise to lower the pinch rollers to press the material in place, so that it won't slip or run away during processing. For the pressure level, refer to "Appendix 2 - Pressure levels recommended for common materials". You can rotate the lower knob to slightly adjust the position of the materials, if needed.
  • Page 28 3. Power on the device and connect it to XCS Connect to the power supply that on the back of xTool P2 and turn on the power switch. Power on the device and connect it to XCS.

  • Page 29: Appendix 1 - Tips For Using The Product

    Tips: For details about how to use XCS, visit support.xtool.com. You can join the xTool community at community.xtool.com to obtain more tutorials, tricks and tips, and creation inspiration. You can visit to find the tutorial video. Unboxing xTool P2 Conveyor Feeder...
  • Page 30 About the conveyor rails When you process a soft and thin material (such as kraft paper), the material  pressing rod, instead of the conveyor rails, is needed. The material can be hung down on both sides of the working area of conveyor feeder, and therefore no interference is caused by the gaps between the rails.
  • Page 31 Make sure that the part of a material hung in the air is no longer than 30 cm. To use more conveyor rails, you need to purchase them. You can visit xtool.com purchase them. Adjust the distance between the rails according to the width of a material to be ...

  • Page 32: About Cleaning

    PET tape on its back and before processing. Ensure that the whole material is covered by the PET tape. PET tape is not included in the pack. You can visit xtool.com to purchase them. About cleaning If there are many residues under the pinch rollers (such as wood chips), you ...
  • Page 33 If the smoke produced from the materials and working area can't emit in time  and cause the baseplate dirty. You can clean it with the cleaning cloth and alkaline cleanser.

  • Page 34: Appendix 2 - Pressure Levels Recommended For Common

    Others Before you use the conveyor feeder, arrange the connection cables, power  cables, and other items that may block the feeding of materials. The distance between the pinch rollers and the working area is 20 cm. Ensure  the length of the material is at least 20 cm longer than that of the pattern to be processed.
  • Page 35 Tips: The color you see in the pressure level window indicates the pressure level. Material name Thickness Pressure level Plywood 3 mm Plywood 6 mm Plywood 9 mm Plywood 14 mm Acrylic 3 mm Acrylic 7 mm Acrylic 12 mm Fiberboard 3 mm Fiberboard...

  • Page 36: After-Sales Services

    Kraft paper 300 g After-sales services If your problem is still unsettled, contact us at support@xtool.com.
