Summary of Contents for Xtool P2

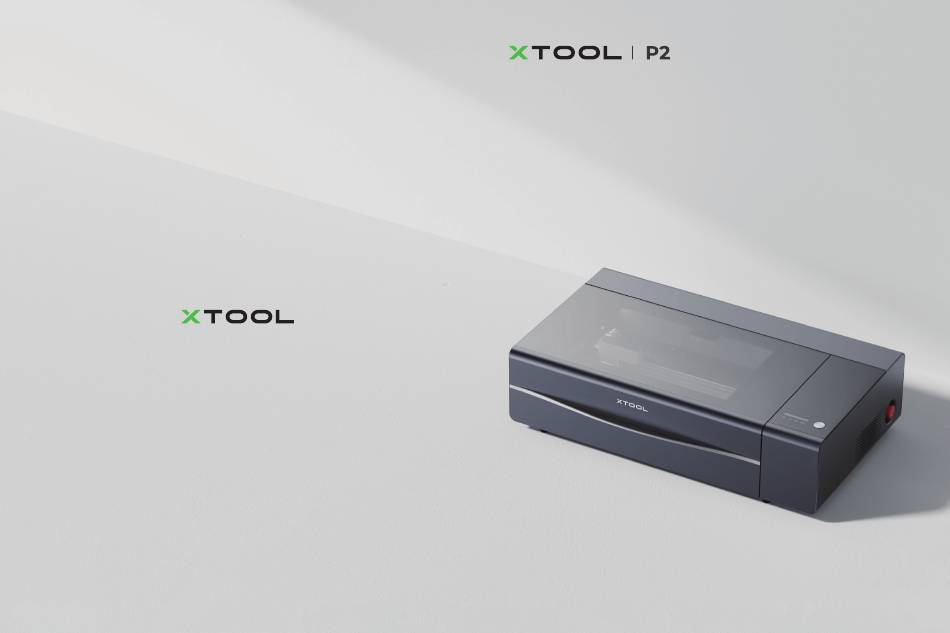

- Page 1 Quick Start Guide D2.1.4_KD010566000...
- Page 2 Contents List of items Open the box and take out all the items Meet your xTool P2 Preparations Use xTool P2 For online help, visit support.xtool.com. 线上帮助， 请访问 makeblock.com/cn/docs/xtool-p2。 makeblock.com/cn/docs/xtool-p2 support.xtool.com...
- Page 3 Open the box and take List of items out all the items (1) Open the lid and take all the items out xTool P2 Power cable USB cable (Type-C) Smoke exhaust pipe Antifreeze Funnel components (2) Unscrew the screw that fixes the baseplate...
- Page 4 (3) Take out the foam and acrylic sheets and put the (4) Tighten the screw that fixes the baseplate baseplate back to the machine...
- Page 5 Meet your xTool P2 State display screen Button Annular indicator Laser module Distant-view camera Close-view camera Laser tube Emergency stop switch Water tank Network port USB port (Type-C) Extension port Power switch Power port Fire safety set port Slat Baseplate Tube fitting...
- Page 6 1 Check the casing of the machine. If it is severely damaged, do not use the machine and contact xTool after-sales services. 2 Remove the sticker used to prevent the lid from locking and turn the emergency stop switch to reset it.
- Page 7 Unscrew the screws that fix the rear cover and remove it 5 Fill the water tank with antifreeze You need to prepare a measuring glass to measure purified water. If you can’t find a measuring glass at home, you can store the antifreeze in another container and use the bottle of the antifreeze to measure...
- Page 8 Open the cap of the water tank and insert the funnel into the opening Connect the machine to a power supply and turn on the machine ① ② ① ② Complete the first filling Pour the required volume of antifreeze into the water tank, and then slowly pour the Complete the second filling required purified water in.
- Page 9 Fit the rear cover back to the machine and tighten the screws 6 Install the smoke exhaust pipe If you have purchased a smoke purifier, follow the instructions to connect it to xTool P2.
- Page 10 1. Download and install xTool Creative Space (XCS) xtool.com/software xTool Creative Space 2. Connect xTool P2 to your computer and connect it to XCS Connect device You can start your creation after connecting them. For details about how to use XCS to operate xTool P2, see support.xtool.com.
