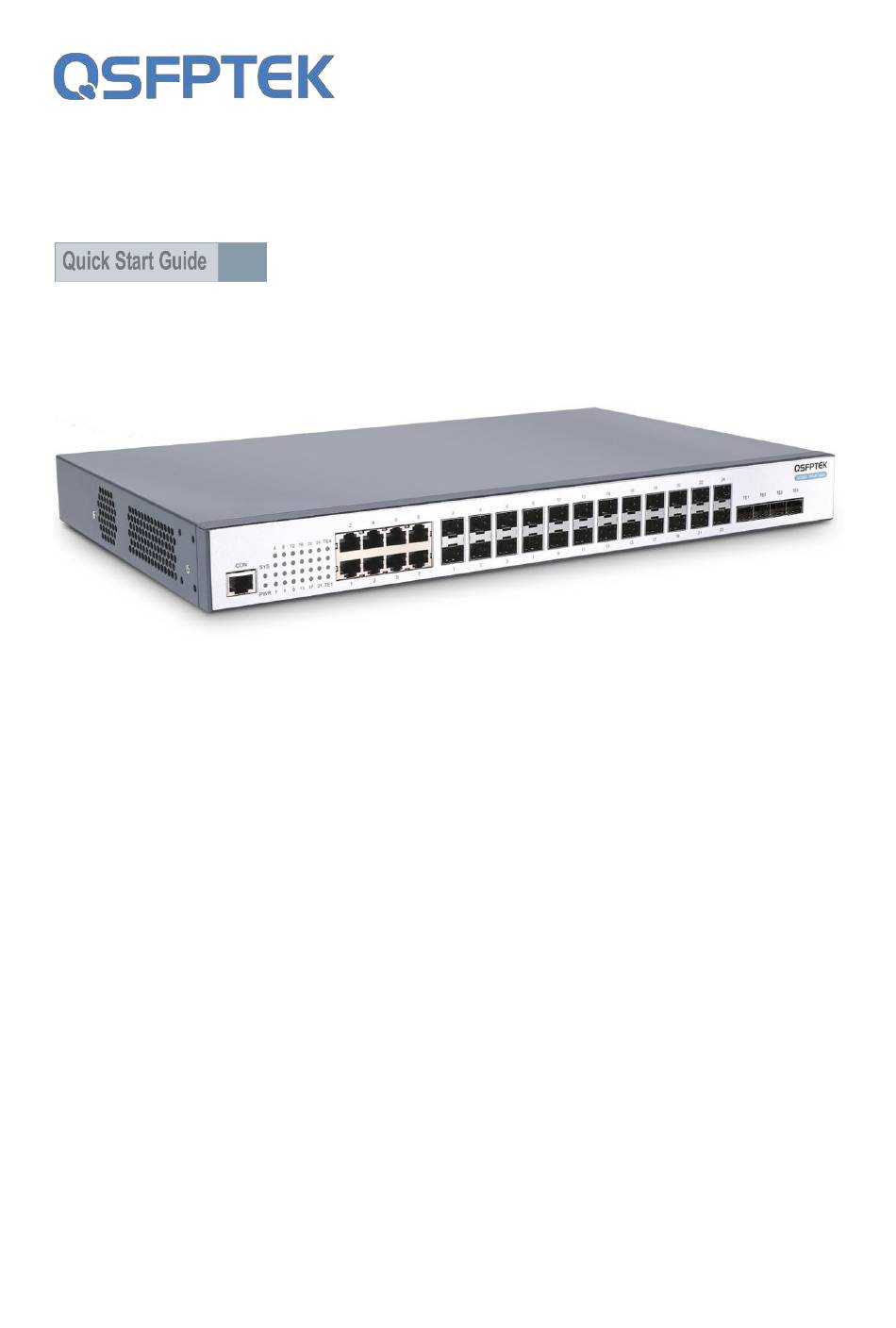

- Page 1 S5300-16S8TS4X Quick Start Guide V2.0 16-Port Gigabit Ethernet L2+ Switch 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking www.qsfptek.com V2.0 1 / 12...

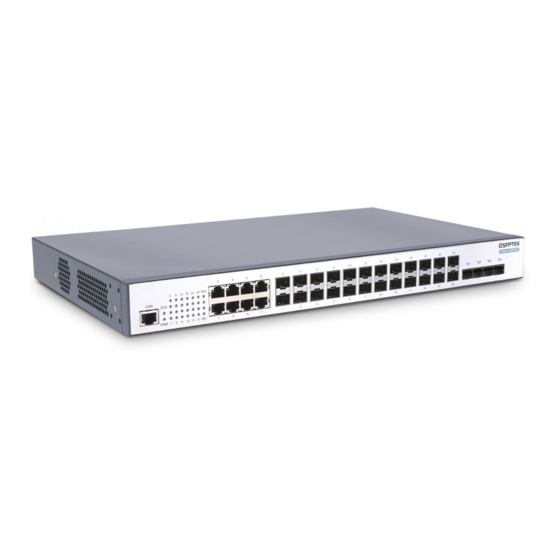

- Page 2 Introduction The S5300-16S8TS4X is a managed gigabit access layer switch with 16x 1G SFP, 8x 1G RJ45/SFP combo, 4x 10G SFP+ uplink ports, supports stacking of up to 2 switches. It has built-in two intelligent fans, which can automatically adjust the fan speed to save on usage costs. The switch can be easily controlled and managed through both CLI and WEB interfaces, allowing for real-time monitoring and improved management efficiency.
-
Page 3: Hardware Overview
The link on the port is normal. SFP+ The link on the port is failed. If the SYS indicator flickers, the SYS LED system works normally. If the PWR indicator is always on, PWR LED the device is powered on. www.qsfptek.com V2.0 3 / 12... -
Page 4: Back Panel
Put on relatively tight clothes, fasten the tie or scarf well and roll up the sleeve, avoiding stumbling the machine box. Put on protective glasses if the environment may cause damage to your eyes. Avoid incorrect operations that may cause damage to humans or devices. www.qsfptek.com V2.0 4 / 12... -
Page 5: Mounting The Switch
discharged Avoid damaging devices by following the electrostatic discharge prevention procedure. S5300-16S8TS4X Hardware Installation Manual Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed. - Page 6 Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. Connect the other end of the Ethernet cable to the switch RJ45 port. www.qsfptek.com V2.0 6 / 12...
- Page 7 Insert the SFP module into the SFP port. Plug a fiber patch cable into the SFP transceiver. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com V2.0 7 / 12...
- Page 8 Insert the SFP+ module into the SFP+ port. Plug a fiber patch cable into the SFP+ transceiver. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com V2.0 8 / 12...
-
Page 9: Connecting The Management Ports
Connect the DB9 female connector on the other end of the console cable to the serial port on the computer host. Configuring the Switch Configuring the Switch Using the Web-based Interface Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. www.qsfptek.com V2.0 9 / 12... - Page 10 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V2.0 10 / 12...
-
Page 11: Troubleshooting
Faults Relative to Power and Cooling System Do the following checkups to help remove the fault: 1. When the power on-off is at the “ON” location, check whether the fan works normally. If the fan www.qsfptek.com V2.0 11 / 12... -
Page 12: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
