- Page 1 S5300-48T4X Quick Start Guide 48-Port Gigabit Ethernet L3 Switch 48x 1G RJ45 Ports, with 4x 10G SFP+, Support Stacking V1.0 1 / 8 www.qsfptek.com v1.0...
-
Page 2: Hardware Overview

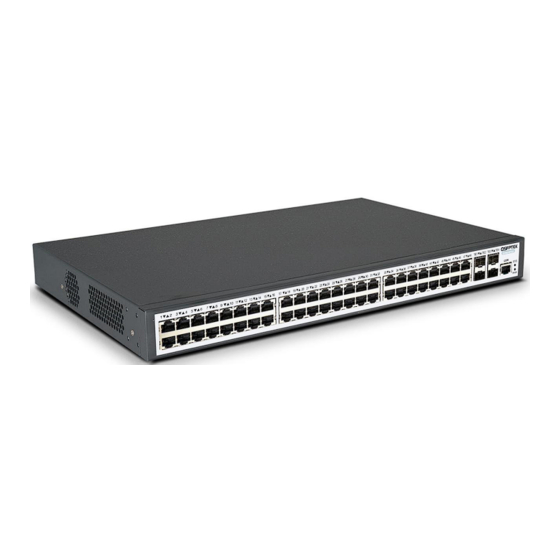

Introduction The S5300-48T4X access switch features 48x GE RJ45 downlinks and 4x 10GE SFP+ uplinks. It supports stacking of up to two models, making them logically regarded as one switch stack for interconnection and management. We appreciate your decision to select S5300-48T4X. This manual is intended to help you become acquainted with the switch design and provide instructions for implementing the switches into your network. -
Page 3: Installation Requirements
Name Description Grounding column The grounding column The grounding column must be fine. Power supply AC power supply Input voltage: AC100~240V Installation Requirements Tools Preparation Screwdriver Static-proof wristband Bolt Ethernet cable 3 / 8 www.qsfptek.com v1.0... -
Page 4: Mounting The Switch
Site Environment Make sure that the workshop is well-ventilated, the heat of electrical devices is well-discharged . Avoid to damage devices by following the electrostatic discharge prevention procedure. S5300-48T4X Hardware Installation Manual. Put the machine box at the place where cool air can blow off the heat inside the machine box. Make sure the machine box is ... -
Page 5: Connecting The Management Ports
2. Plug a fiber patch cable to the SFP+ transceiver. 3. Connect the other end of the fiber to the device that you want to realize data communication. Connecting the Management Ports Connecting the Console Port 5 / 8 www.qsfptek.com v1.0... -
Page 6: Configuring The Switch
Step 2: Set the IP address of the computer to 192.168.0.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). 6 / 8 www.qsfptek.com v1.0... -
Page 7: Troubleshooting
1. If the port of the switch cannot be linked, check whether the cable is correctly connected and whether the peer connection is normal. 2. If the power on-off is at the “ON” location, check the power source and the power cable. 7 / 8 www.qsfptek.com v1.0... -
Page 8: Support And Other Resources
Product Warranty S7600 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
